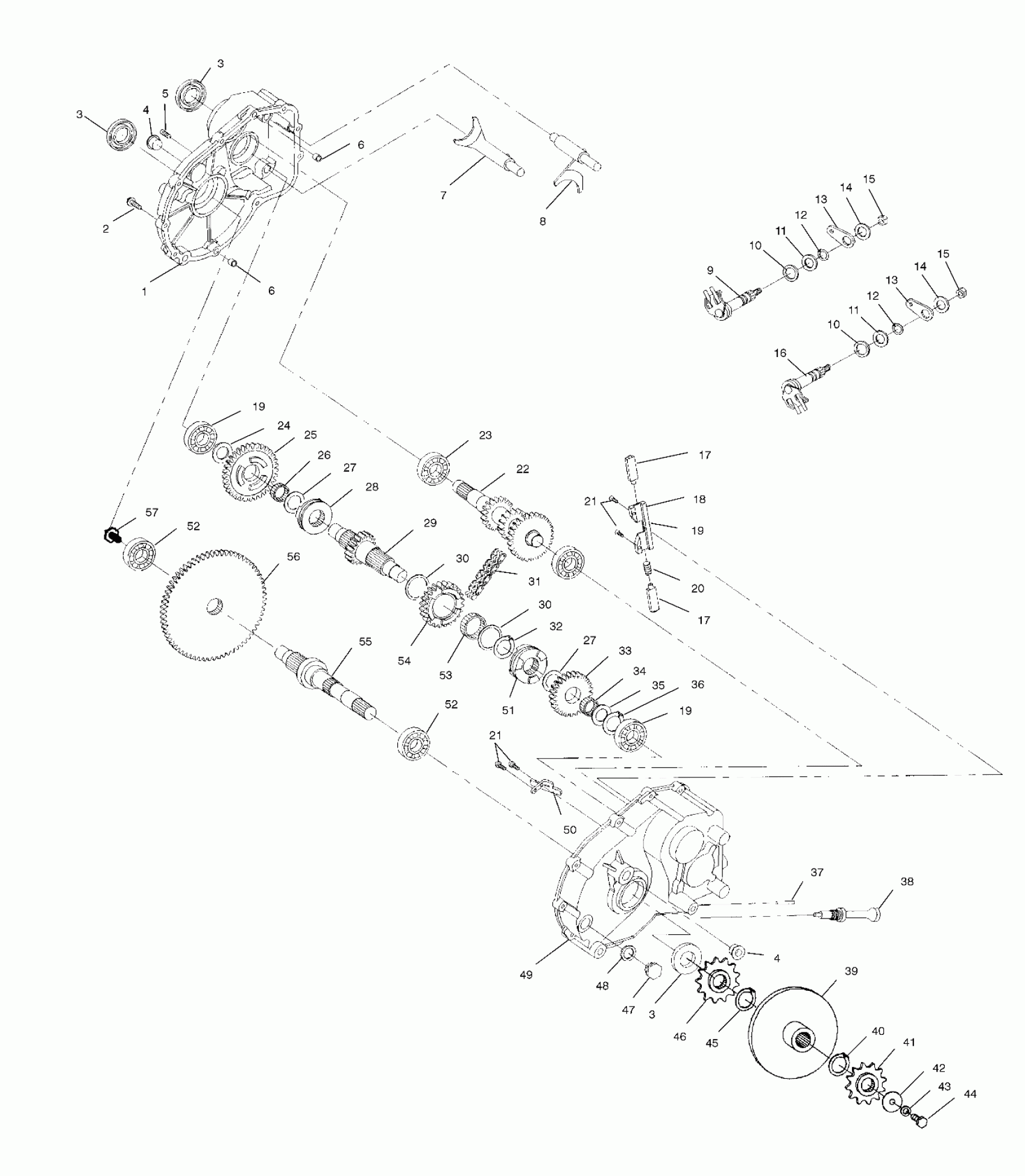

Polaris BIG BOSS 500 6X6 - A99AE50AA GEARCASE - A99AE50DA (4949204920d007) Diagram

#

Description
Price

-

GEARCASE ASM,MAGNUM 4WD,HCR (Incl. 1-38,47-57)

1341184

Unavailable

1

CASE, LH

3233002

Unavailable

2

Screw

3233026

$6.46

3

Seal

3233248

$30.88

3

Seal

3233248

$30.88

3

Seal

3233248

$30.88

4

BUSHING,PIVOT

3233024

Unavailable

4

BUSHING,PIVOT

3233024

Unavailable

5

STUD

3233025

Unavailable

6

PIPE, KNOCK

3233021

Unavailable

6

PIPE, KNOCK

3233021

Unavailable

7

SHIFTRAIL,LOW

3233022

Unavailable

8

SHIFTRAIL,HIGH/REV.

3233023

Unavailable

9

SHAFT,LOW SHIFT

3233151

$51.59

10

O-Ring

3233548

$27.99

10

O-Ring

3233548

$27.99

11

Washer

3233040

$9.59

11

Washer

3233040

$9.59

12

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

12

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

13

Bellcrank

3233153

$27.99

13

Bellcrank

3233153

$27.99

14

Washer

3233054

$6.46

14

Washer

3233054

$6.46

15

Nut

3233055

Unavailable

15

Nut

3233055

Unavailable

16

SHAFT,HIGH/REV.SHIFT

3233152

Unavailable

17

PIN

3233031

$32.11

17

PIN

3233031

$32.11

18

BRACKET

3233030

$21.43

19

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

19

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

19

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

20

Spring

3233032

$12.94

21

SCREW Substituted by 3233747

3233033

Unavailable

21

SCREW Substituted by 3233747

3233033

Unavailable

22

SHAFT,INPUT,31T,HCR

3233361

Unavailable

23

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

24

WASHER

3233007

Unavailable

25

GEAR, 33T

3233125

Unavailable

26

BEARING,NEEDLE

3233009

$39.99

27

Washer

3233010

Unavailable

27

Washer

3233010

Unavailable

28

DOG,ENGAGEMENT,LOW

3233126

Unavailable

29

SHAFT,REV,29T,HCR

3233362

Unavailable

30

WASHER

3233012

Unavailable

30

WASHER

3233012

Unavailable

31

CHAIN,SILENT,34P

3233036

Unavailable

32

RING,RETAINING

3233029

$5.59

33

GEAR,30T,HCR

3233359

Unavailable

34

BEARING,NEEDLE

3233017

$35.99

35

Washer

3233176

$9.59

36

RING,RETAINING

3233177

$6.39

37

Vent

3233037

Unavailable

38

Dipstick

3233478

$23.99

39

Disc, Brake (See Footnote) (See Gearcase/Brake and Chain Cover Mounting Pg. C13, Ref. 28)

-------

Unavailable

40

Ring, Retaining (See Footnote) (See Gearcase/Brake and Chain Cover Mounting Pg. C13, Ref. 32)

-------

Unavailable

41

Sprocket, 11T (See Footnote) (See Gearcase/Brake and Chain Cover Mounting Pg. C13, Ref. 26)

-------

Unavailable

42

Washer (See Footnote) (See Gearcase/Brake and Chain Cover Mounting Pg. C13, Ref. 12)

-------

Unavailable

43

Washer (See Footnote) (See Gearcase/Brake and Chain Cover Mounting Pg. C13, Ref. 2)

-------

Unavailable

44

Screw (See Footnote) (See Gearcase/Brake and Chain Cover Mounting Pg. C13, Ref. 13)

-------

Unavailable

45

Ring, Retaining (See Footnote) (See Gearcase/Brake and Chain Cover Mounting Pg. C13, Ref. 27)

-------

Unavailable

46

Sprocket, 12T (See Footnote) (See Gearcase/Brake and Chain Cover Mounting Pg. C13, Ref. 33)

-------

Unavailable

47

Plug

3233448

$23.99

48

Washer

3233035

Unavailable

49

CASE, RH

3233003

Unavailable

50

DEFLECTOR,OIL

3233043

$13.19

51

DOG,ENGAGEMENT,HI/REV.

3233128

Unavailable

52

BEARING

3233020

$47.99

52

BEARING

3233020

$47.99

53

BEARING, NEEDLE

3233014

$43.99

54

SPROCKET, 24T

3233127

Unavailable

55

SHAFT,OUTPUT

3233150

Unavailable

56

GEAR,O/P,100T,HCR

3233360

Unavailable

57

BUSHING,SPEEDO.DRIVE

5020741

$9.03
