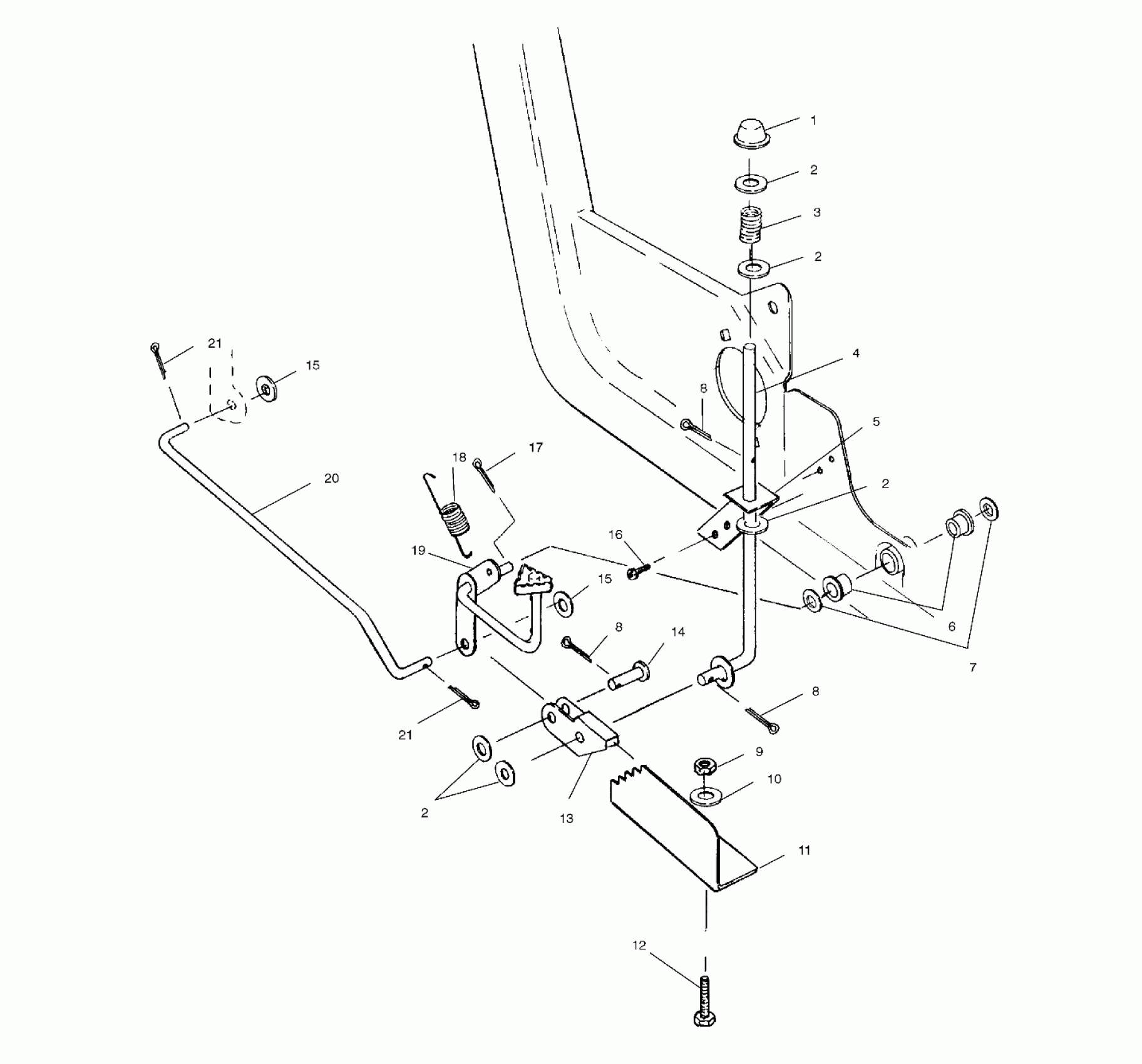

Polaris BIG BOSS 500 6X6 - A99AE50AA FOOT PEDAL and PARKING BRAKE - A99AE50DA (4949204920c012) Diagram

#

Description
Price

-

BRAKELOCK ASM,(SWED),W/FOOT BRK. (Incl. 2-5,8,13,14)

1910154

Unavailable

1

PUSHNUT, RED(10)

7670063

Unavailable

2

WASHER, FLAT(10)

7558201

$5.79

2

WASHER, FLAT(10)

7558201

$5.79

2

WASHER, FLAT(10)

7558201

$5.79

2

WASHER, FLAT(10)

7558201

$5.79

3

SPRING

7041365

Unavailable

4

ROD,BRAKELOCK

5224548

Unavailable

5

STAND OFF

5240525

Unavailable

6

BUSHING-PEDAL PIVOT

5431107

$8.79

7

WASHER(10)

7555919

$4.99

8

PIN, COTTER(10)

7661010

$1.49

8

PIN, COTTER(10)

7661010

$1.49

8

PIN, COTTER(10)

7661010

$1.49

9

NUT(10)

7542124

Unavailable

10

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

11

CATCH

5240526

Unavailable

12

BOLT(10) Substituted by 7512269

7515101

Unavailable

13

FLIPPER

5240524

Unavailable

14

PIN, CLEVIS(10)

7661640

Unavailable

15

WASHER(10)

7555806

$1.49

15

WASHER(10)

7555806

$1.49

16

SCREW,(10)

7512024

$4.79

17

COTTER PIN(10)

7661401

$1.49

18

SPRING-EXHAUST(10)

7042029

$4.84

19

FOOTBRAKE,BLK.

1910144-067

Unavailable

20

ROD, BRAKE

5224531

$51.99

21

PIN COTTER(10)

7661203

$1.49

21

PIN COTTER(10)

7661203

$1.49
