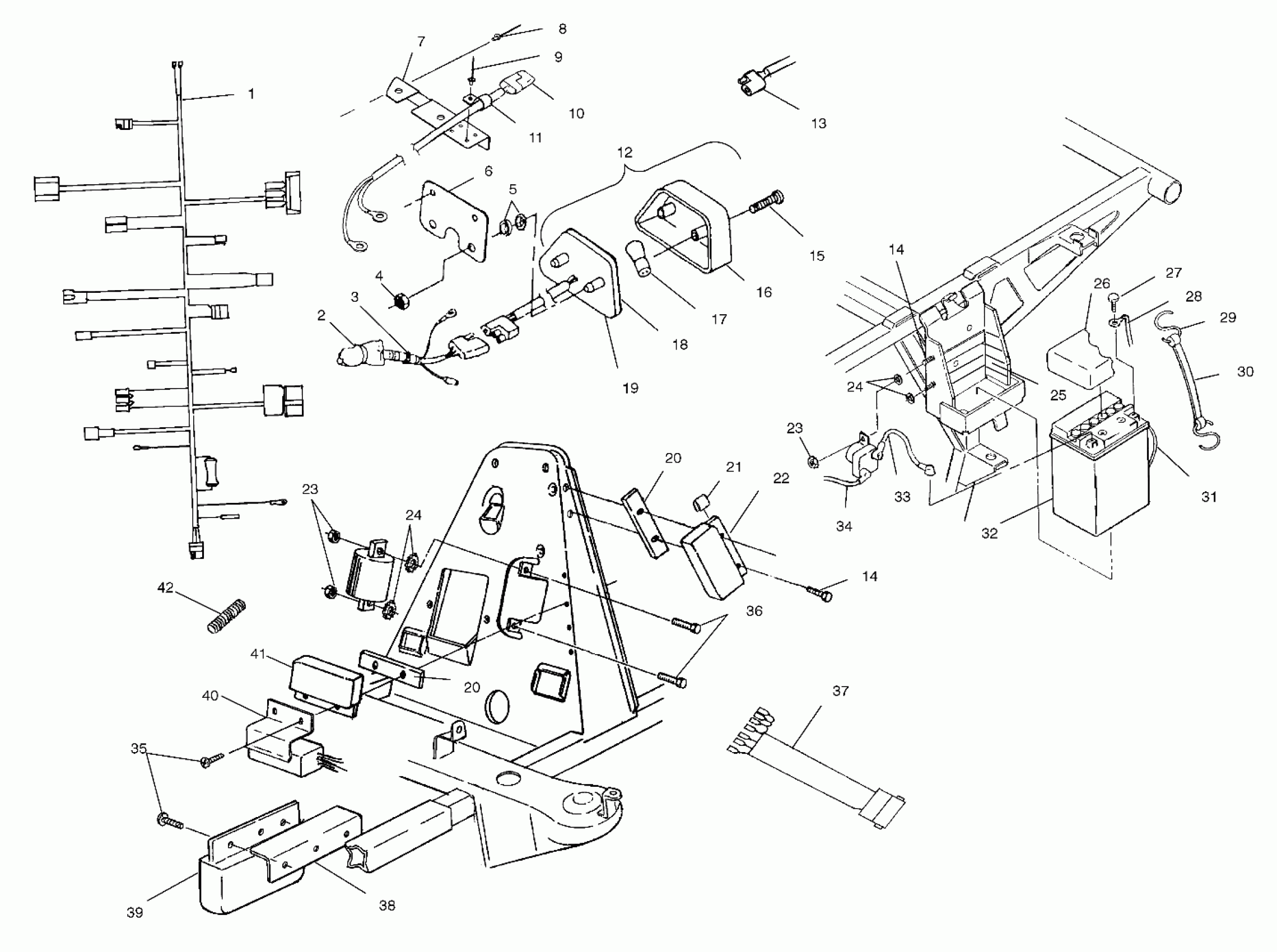

Polaris BIG BOSS 500 6X6 - A99AE50AA ELECTRICAL/TAILLIGHT - A99AE50DA (4949204920d003) Diagram

#

Description
Price

1

HARNESS,MAINWIRE(MAG6X6)

2460606

Unavailable

2

CKT.BREAKER,20 AMP.

2434012

Unavailable

3

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

4

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.19

5

WASHER,NYLON(10)

7555916

$1.59

6

ISOLATOR,TAILLIGHT

5211391-067

$13.39

7

Bracket, Taillight Mount (See Rear Bed Mounting Pg. A8, Ref. 27)

----

Unavailable

8

RIVET(50)

7621470

Unavailable

9

RIVET,(50)

7621336

$1.59

10

POWERPLUG ASM,12V.

2410023

$28.73

11

CLAMP,BLK,5/16 PLASTIC(10)

7080524

Unavailable

12

TAIL LIGHT ASM.

2432034

$55.56

13

PIGTAIL, POWER

2460442

$12.30

14

SCREW(10)

7512027

$1.19

14

SCREW(10)

7512027

$1.19

15

Screw, Taillight

4032029

$4.76

16

LENS,TAILLIGHT

4032046

$32.37

17

BULB,TAILLIGHT

4030043

$6.46

18

GASKET,TAILLIGHT

4032045

$4.03

19

BACKING,TAILLIGHT

4032064

$83.33

20

HEAT SINK

5210650

Unavailable

20

HEAT SINK

5210650

Unavailable

21

DESC NOT_AVAILABLE

8360012-13

Unavailable

22

LIMITER-SPEED,650HZ,CONN (Int'l)

4010248

$62.46

23

NUT(10)

7541925

$0.79

23

NUT(10)

7541925

$0.79

24

WASHER(10)

7571602

$4.76

24

WASHER(10)

7571602

$4.76

25

PAD-BATTERY

5810290

$7.27

26

COVER,BATTERY

5431769

$15.37

27

BOLT,BATT,KIT(SHORT)

2200361

Unavailable

28

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

29

HOOK-BATT.H/D(10)

7010032

$1.59

30

STRAP,BATTERY HOLDDOWN

5410424

$4.84

31

TUBE,BATTERY VENT

5432077

$8.89

32

Battery

4140006

$99.99

33

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

34

CABLE,SOL/STARTER

4010093

$48.56

35

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.17

36

SCREW(10)

7512007

$3.97

37

HARNESS,ADAPTOR JUMPER (Int'l)

2460637

Unavailable

38

HEATSINK RECT.

5131036

Unavailable

39

RECTIFIER,FULL WAVE

4060173

$204.24

40

BRKT,CDI(ATV 400)

5240428

Unavailable

41

LIMITER,RPM,350HZ,LR44-2

4060204

Unavailable

42

TUBING,CONVOLUTED,3/4"

8360011-15

$1.67
