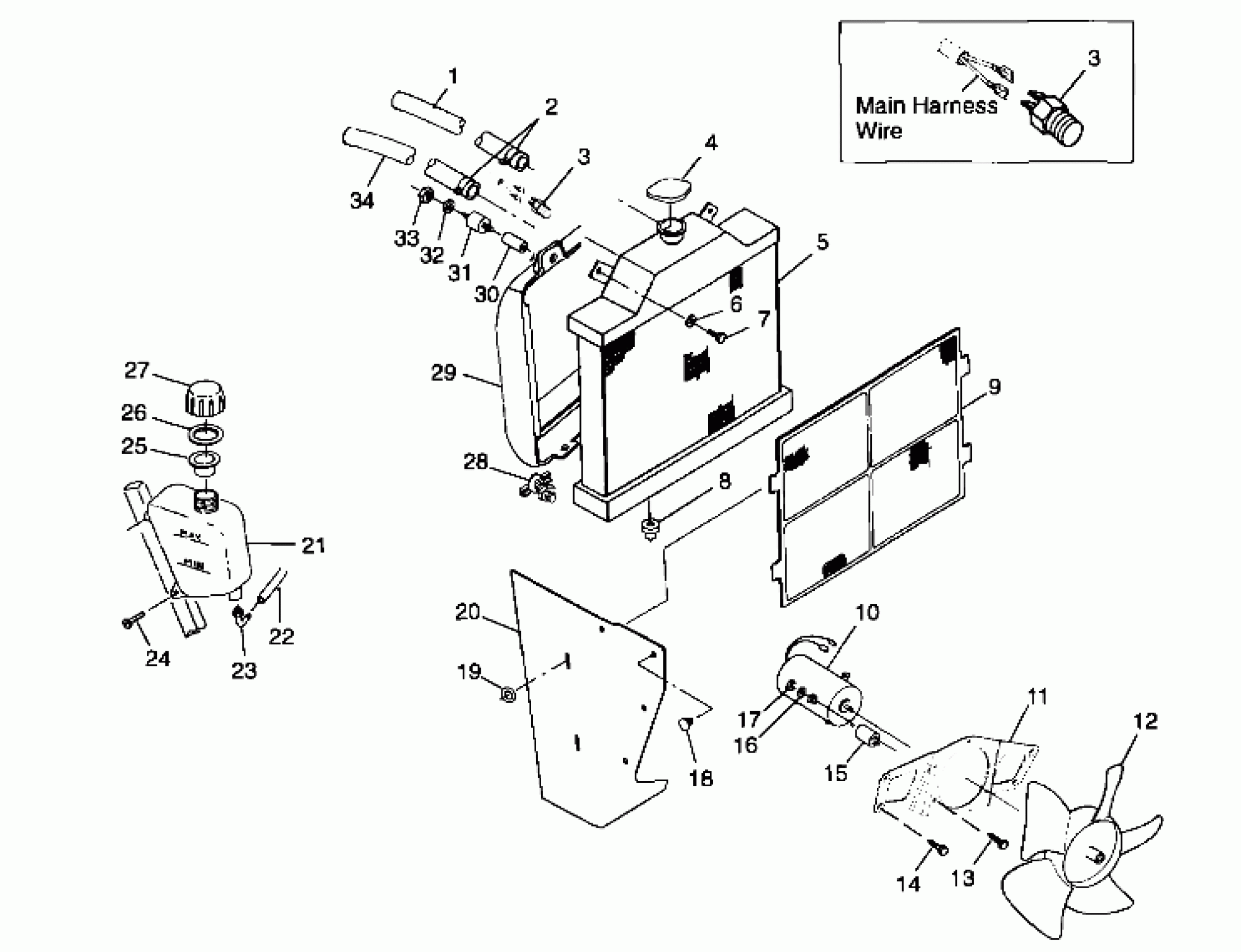

Polaris BIG BOSS 500 6X6 - A99AE50AA COOLING SYSTEM - A99AE50DA (4949204920a010) Diagram

#

Description
Price

1

HOSE,CHAFE-PROTECTED

5411108

Unavailable

2

CLAMP,HOSE,(10)

7080614

$7.19

3

SWITCH-THERMAL,4 STROKE,500CC

4010202

$71.99

3

SWITCH-THERMAL,4 STROKE,500CC

4010202

$71.99

4

CAP, RADIATOR Substituted by 2511270

2511189

Unavailable

5

RADIATOR,"U"FLOW

1240015

Unavailable

6

WASHER(10)

7552605

$5.27

7

SCREW(10)

7512113

$3.99

8

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

9

COVER,RADIATOR,W/MESH

5431610

Unavailable

10

MOTOR,FAN,LIQ,D-SHAFT,CONN

4170013

Unavailable

11

BRKT,FAN MOUNT,BLK

5241788-067

$7.43

12

BLADE,FAN,NYLON,8"

5242550

Unavailable

13

SCREW

7517475

Unavailable

14

BOLT(10)

7512232

$1.49

15

SPACER,FAN BRKT.

5432294

$3.99

16

WASHER, FLAT(10)

7558201

$5.79

17

Nut

7547004

$4.79

18

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49

19

O RING

5410607

$5.99

20

SHIELD-RADIATOR SIDE,LH

5433141

Unavailable

20

SHIELD-RADIATOR SIDE,RH

5433142

Unavailable

21

Tank, Surge

5431673

Unavailable

22

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

23

FITTING,90 DEGREE

7052065

$7.19

24

SCREW(10)

7512084

$1.49

25

PLUG,CAP Substituted by 5433774

5431895

Unavailable

26

GASKET-OVERFLOW CAP

5810279

$2.41

27

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

28

VALVE,DRAIN COCK

7052181

Unavailable

29

SHROUD,FAN,(ATV)

5432593

Unavailable

30

SPACER,RADIATOR MNT

5020937

Unavailable

31

Mount, Rubber

3110032

$7.99

32

WASHER(10)

7558301

$1.49

33

NUT-LOCK(10)

7542122

$1.49

34

HOSE,WATER,305 CM.

8450050-305

Unavailable
