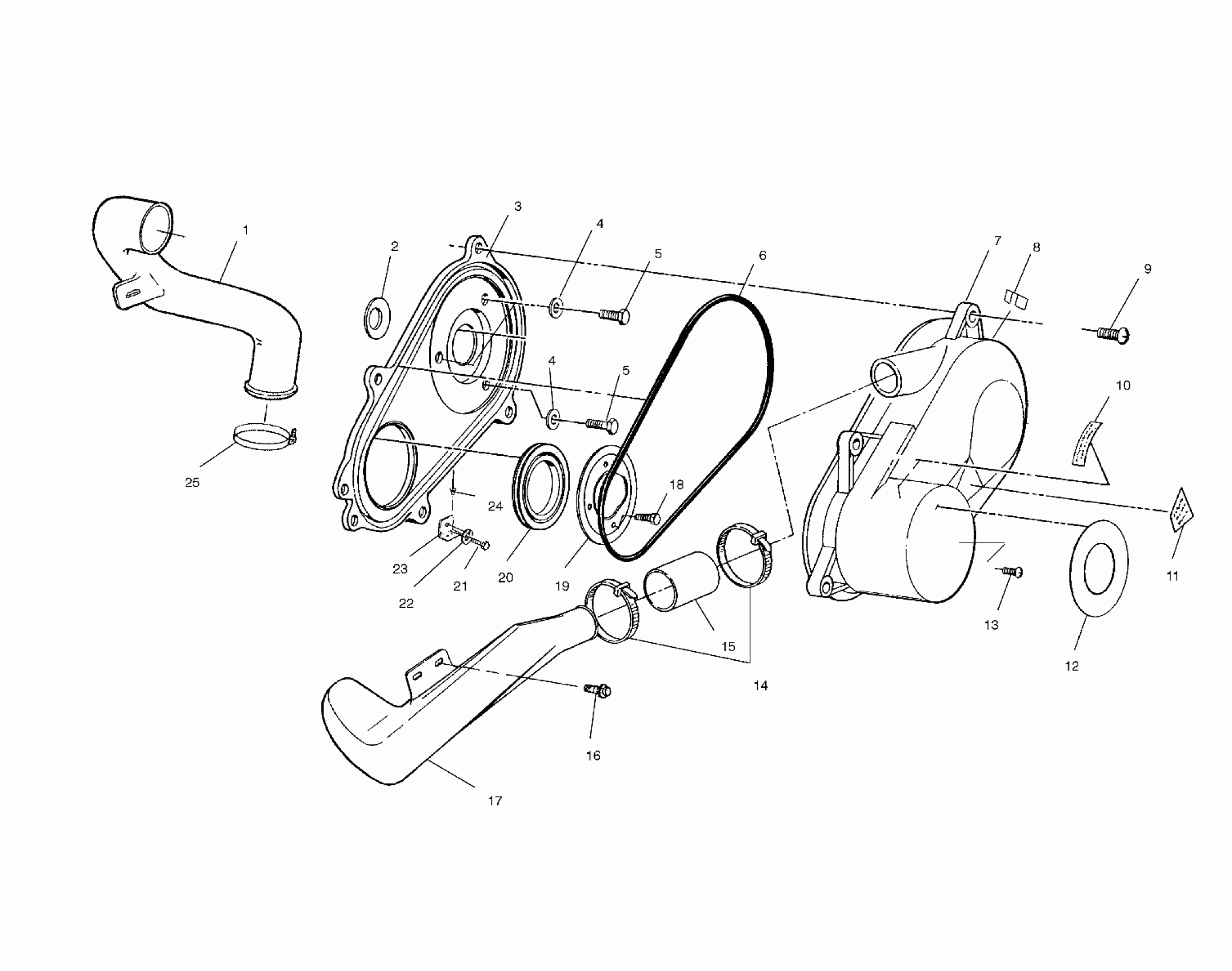

Polaris BIG BOSS 500 6X6 - A99AE50AA CLUTCH COVER - A99AE50DA (4949204920c010) Diagram

#

Description
Price

1

DUCT,INLET,DOWN TUBE

5432698

Unavailable

2

SEAL,CVR,CASE 1/2

5411180

$24.27

3

KIT,CVR,IN.CLUTCH,(MAG)

2200791

Unavailable

4

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

4

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

5

SCREW

7517219

$4.79

5

SCREW

7517219

$4.79

6

SEAL,CLUTCHCOVER

5521301

$30.88

7

COVER,CLUTCH,OUTER,HV Substituted by 5433540

5432849

$169.87

8

CLIP,CLUTCH COVER(10)

7670051

$2.99

9

SCREW(10)

7512093

$1.49

10

DECAL,CLUTCH COVER Substituted by 7078689

7074946

Unavailable

11

DECAL,ENG/CLUTCH MOD. Substituted by 7078689

7077377

Unavailable

12

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

13

SCREW(10)

7512094

$1.59

14

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

15

BOOT,DUCT,HI-FLOW

5411489

Unavailable

16

SCREW(10)

7515180

Unavailable

17

DUCT,CLUTCH OUTLET HI/FLOW

5432953

Unavailable

18

Screw and Washer (See Crankcase Pg. D11, Ref. 6)

-------

Unavailable

19

BRKT,RETAINER SEAL,BLK. Substituted by 5242046-067

5240409-067

Unavailable

20

Seal, Cover Case

5410575

Unavailable

21

SCREW(10)

7512095

$4.79

22

WASHER(10)

7555935

$2.39

23

BRKT,CLUTCH COVER,BLK.

5241213-067

Unavailable

24

RIVET,INTERLOCK,B(50)

7661638

$1.49

25

CLAMP, NARROW BAND(10)

7080511

$4.79
