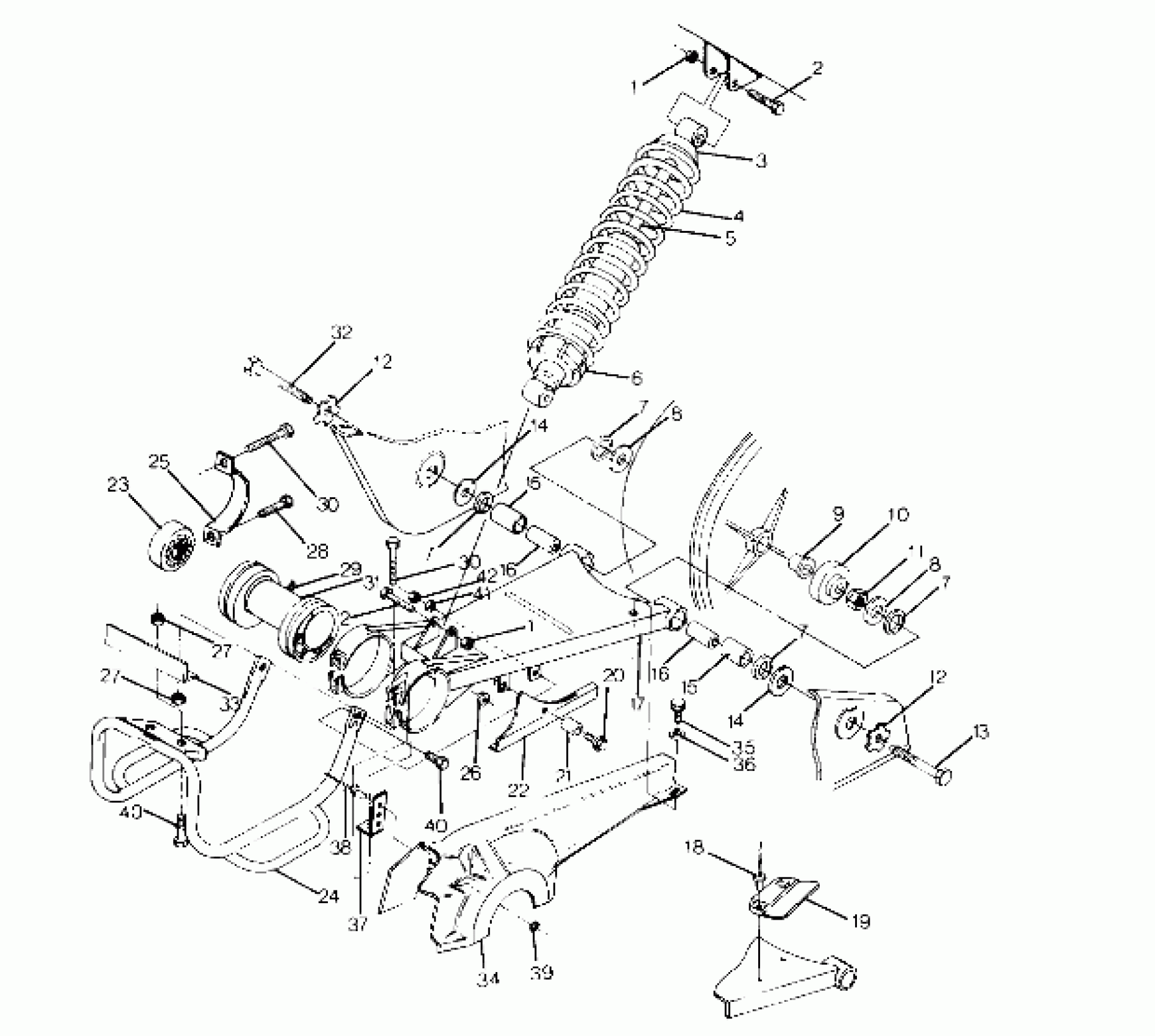

Polaris Big Boss 4x6 - X898627 Swing Arm Weldment (Middle) (4915951595026A) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542439

$1.49

1

NUT-LOCK(10)

7542439

$1.49

2

BOLT(10)

7515415

$1.49

2

BOLT(10)

7515415

$1.49

3

RETAINER, SHOCK

5222118

Unavailable

4

SPRING,COMP.REAR Substituted by 7041204-067

7041204

Unavailable

5

SHOCK

7041220

Unavailable

6

ADJ.ASM,SHOCK SPRING Substituted by 5630351

7041205

$44.99

7

SEAL,OIL

3610016

$28.32

7

SEAL,OIL

3610016

$28.32

7

SEAL,OIL

3610016

$28.32

7

SEAL,OIL

3610016

$28.32

8

WASHER(10)

7555779

Unavailable

8

WASHER(10)

7555779

Unavailable

9

BUSHING,SWING ARM MT.

5630267

Unavailable

10

ROLLER,CHAIN GUIDE

5431003

Unavailable

11

NUT,CROWN LOCK(10)

7542601

Unavailable

12

PLATE,BOLT LOCK

5220958

$35.99

12

PLATE,BOLT LOCK

5220958

$35.99

13

BOLT, SHOULDER

7512704

Unavailable

14

BUSHING, MACH.(10)

7555752

Unavailable

14

BUSHING, MACH.(10)

7555752

Unavailable

15

BEARING

3576507

Unavailable

15

BEARING

3576507

Unavailable

16

BUSHING,SWING ARM

5010237

Unavailable

16

BUSHING,SWING ARM

5010237

Unavailable

17

ARM,SWING,WELD. Substituted by 1580035-067

1580035

Unavailable

18

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

19

GUIDE, CHAIN

5431017

$1.83

20

SCREW-FLANGED(10)

7515304

$5.59

21

Bushing

5332828

$9.59

22

GUARD,CHAIN(MODIFIED) Substituted by 5430776

5430952

$34.74

23

PIVOT, SWING ARM Substituted by 5130696

5610111

$169.99

24

GUARD, RACK Substituted by 1040183-132

1040183

Unavailable

25

BRKT,SWG.ARM EXT. Substituted by 1580037-067

1580037

Unavailable

26

NUT LOCK(10)

7542321

$1.49

27

NUT,FLANGE(10)

7542522

$5.59

27

NUT,FLANGE(10)

7542522

$5.59

28

BOLT(10)

7512520

$4.79

29

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

30

BOLT(10)

7512569

Unavailable

30

BOLT(10)

7512569

Unavailable

31

HOUSING, AXLE

5130663

Unavailable

32

BOLT, SHOULDER

7512701

$23.99

33

MT, RACK GUARD Substituted by 5222221-132

5222221

Unavailable

34

GUARD, F.CHAIN

5431102

Unavailable

35

SCREW(10)

7512252

Unavailable

36

WASHER(10)

7558301

$1.49

37

BRKT, CHAIN GUARD Substituted by 5222220-067

5222220

Unavailable

38

RIVET(50)

7621301

$3.99

39

RIVET BURR(50)

7555756

$2.99

40

BOLT(10)

7512325

$2.39

40

BOLT(10)

7512325

$2.39

41

LOCK WASHER(10)

7552901

$1.49

42

NUT HEX(10)

7542301

$1.59
