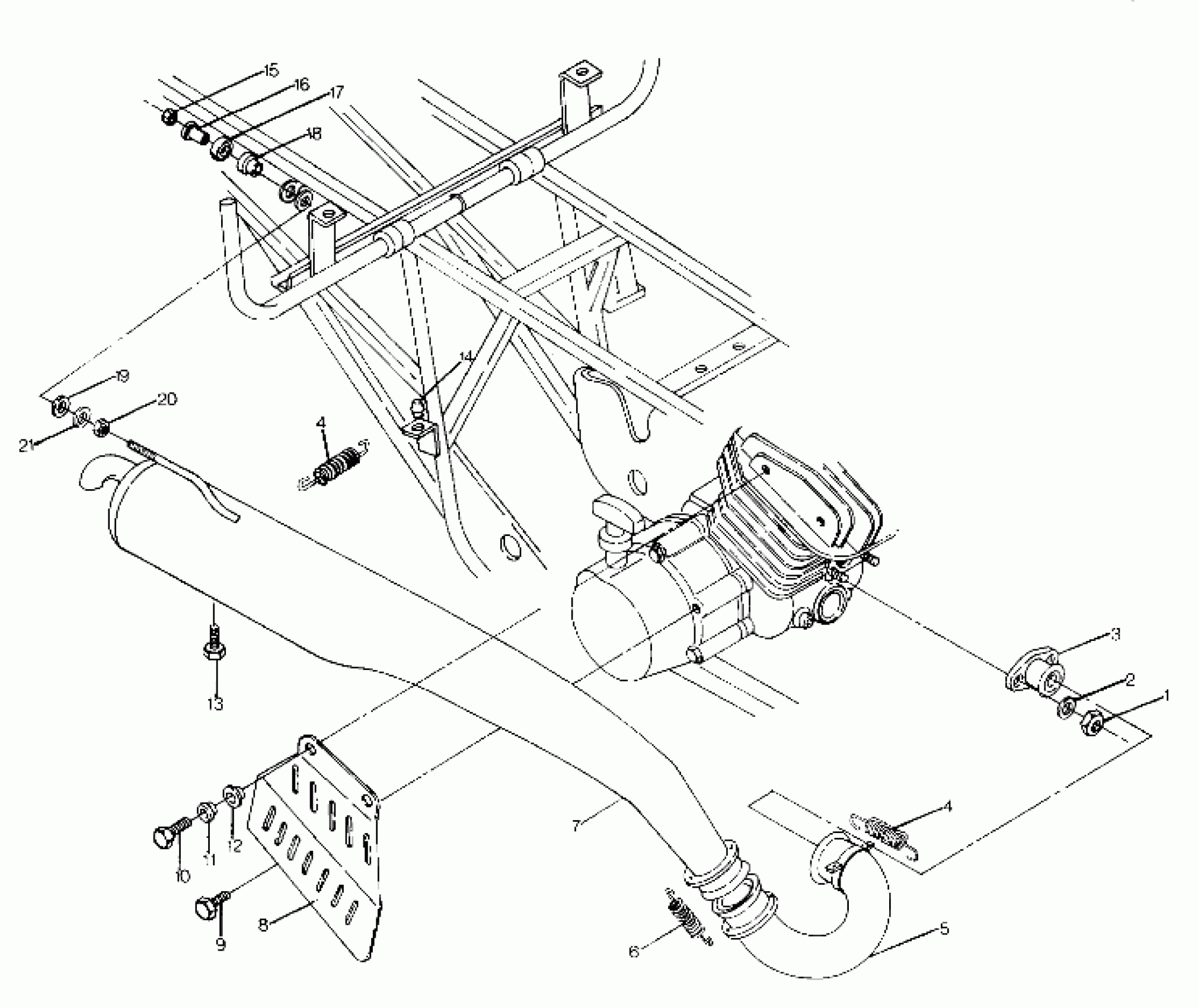

Polaris Big Boss 4x6 - X898627 Muffler Mounting (4915951595008A) Diagram

#

Description
Price

1

NUT(10)

3080285

Unavailable

2

WASHER LOCK ,(10)

3080530

$3.19

3

MANIFOLD

1260509

Unavailable

4

SPRING-EXHAUST(10)

7042029

$4.84

4

SPRING-EXHAUST(10)

7042029

$4.84

5

PIPE, HEADER

1260511

$103.19

6

SPRING, EXHAUST(10)

7042031

$5.65

7

MUFFLER WELD.

1260524

Unavailable

8

SHIELD,MUFFLER,BLACK Substituted by 5220671-067

5222117

Unavailable

9

BOLT&WASHER

3083729

$3.49

10

BOLT&WASHER

3083730

$4.79

11

COLLAR

3083732

Unavailable

12

MOUNTING,RUBBER

3083731

$4.95

13

BOLT(10)

7512666

$2.39

14

DAMPNER, VIB.

5410467

$8.79

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

16

BUSHING,MUFFLER MT.

5020438

Unavailable

17

CAP,VIB. DAMPNER

5220630

Unavailable

18

DAMPENER-MTR.MT.

5410326

Unavailable

19

WASHER,RUBBER

5410436

$1.59

20

NUT HEX(10)

7542301

$1.59

21

WASHER(10)

7555716

$1.59
