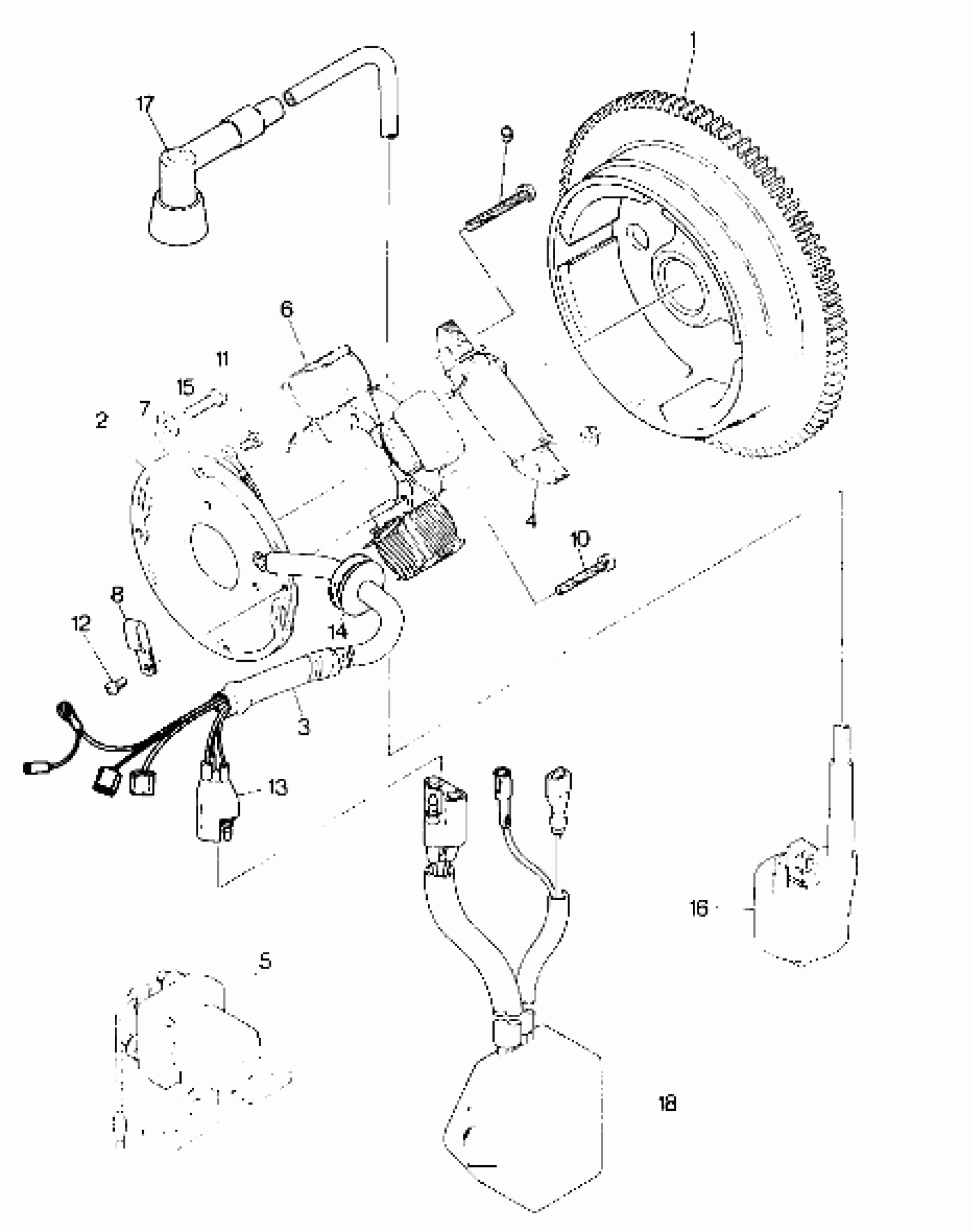

Polaris Big Boss 4x6 - X898627 Magneto Assembly (4915951595041A) Diagram

#

Description
Price

-

PLATE ASM. (Incl. 2-6, 8-14, 20)

3083979

Unavailable

1

FLYWHEEL,W/RING GEAR

3083939

$504.99

2

Plate, Coil

3083634

$74.39

3

HARNESS, WIRE

3083978

$123.99

4

COIL, EXCITING

3083636

Unavailable

5

SWITCH-MAGNETIC Substituted by 3085521

3083211

Unavailable

6

COIL,LIGHT(STATOR 1)

3083976

Unavailable

7

WASHER

3083357

$2.39

8

Clamp

3081296

Unavailable

9

SCREW & WASHER

3083423

$3.19

10

SCREW&WASHER ASM.(10)

3083736

$1.49

11

SCREW&WASHER ASM(10)

3081256

$3.19

12

SCREW&WASHER,(10)

3081260

$3.19

13

COUPLER

3083909

$23.99

14

Grommet

3083773

Unavailable

15

SCREW&WASHER Substituted by 3086788

3083774

Unavailable

16

COIL, IGNITION *

3083923

Unavailable

17

CAP-SPARK PLUG Substituted by 4020129

3083282

Unavailable

18

CDI UNIT *

3083977

Unavailable
