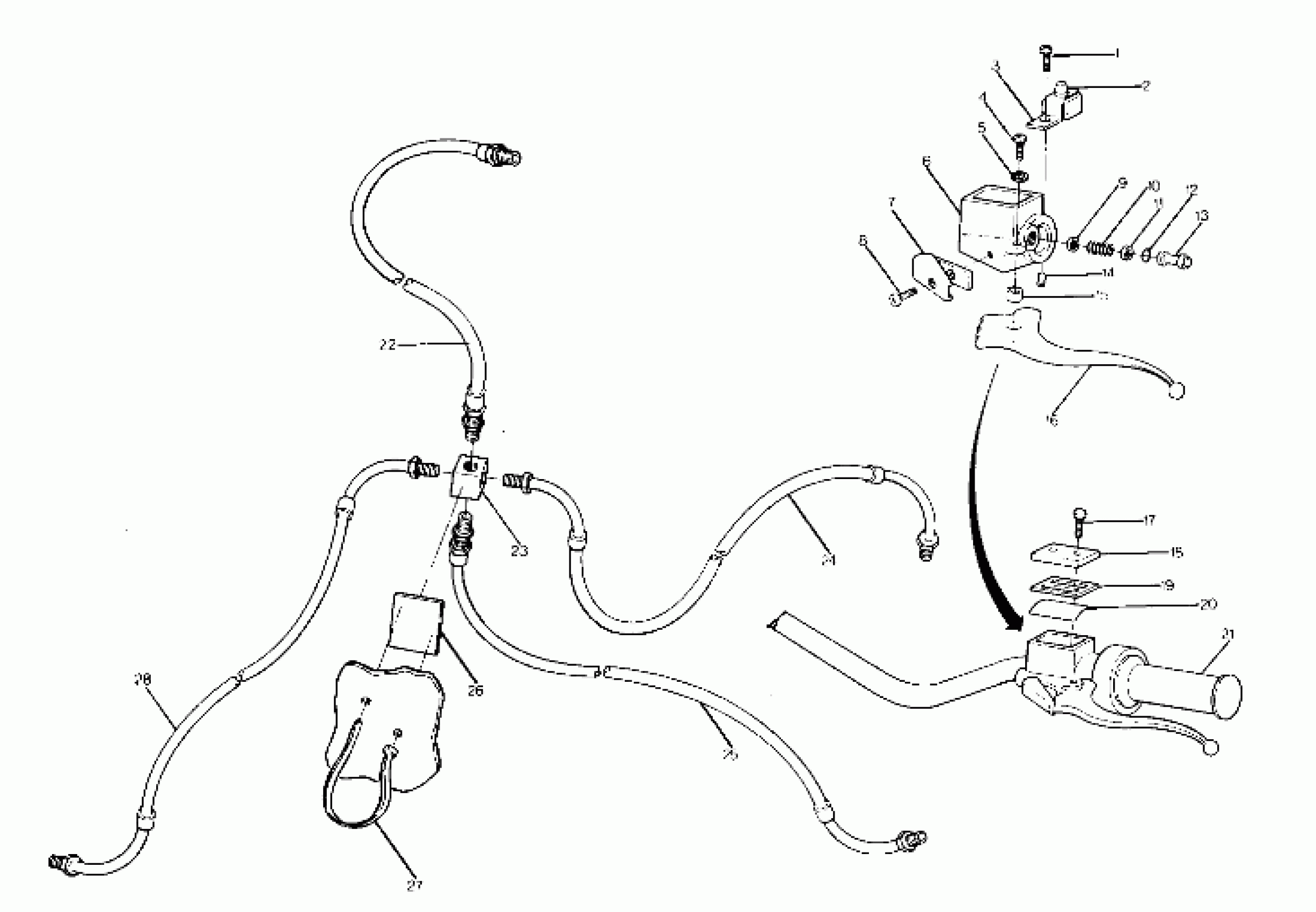

Polaris Big Boss 4x6 - X898627 Control Assembly L.H. (4915951595014A) Diagram

#

Description
Price

1

SCREW, SEMS(10)

7511860

Unavailable

2

SW,O'RIDE,REV.LIMIT.

4110083

$35.99

3

BRKT.,O'RIDE SW.

5220837

Unavailable

4

SCREW(10)

7512011

Unavailable

5

WASHER,TOOTH-LOCK(10)

7555780

Unavailable

6

HOUSING,MASTER CYL. Substituted by 2050073

5630312

$235.51

7

BRAKE LOCK ASM.

2050040

Unavailable

8

SCREW, SEMS(10)

7512010

Unavailable

9

WASHER(10)

7555708

$3.99

10

SPRING,COMPRESSION,(10)

7041203

$33.87

11

U PACKING SEAL

5410164

Unavailable

12

O RING

5410163

$1.60

13

PISTON

5020511

Unavailable

14

SCREW,SET(10)

7512308

Unavailable

15

BUSHING

5332892

Unavailable

16

LEVER, BRAKE

5610106

$28.15

17

SCREW, SEMS(10)

7511859

Unavailable

18

COVER RESERVOIR

5630127

$47.39

19

GASKET

5410487

Unavailable

20

BAFFLE,MASTER CYL.

5410512

Unavailable

21

GRIP, HANDLEBAR

5431025

Unavailable

21

GRIP, HANDLE BAR Substituted by 5431030

5410416

$24.27

22

LINE,BRAKE,UP.,W/FTGS. Substituted by 1930748

1930633

$84.93

23

FITTING, TEE

7052044

Unavailable

24

LINE,BRAKE,R.,W/FTGS.

1930632

Unavailable

25

LINE,BRAKE,LH.FRT,W/FTGS. Substituted by 1930752

1930631

$84.93

26

PAD,GAS TANK [No Longer Available]

5850040

Unavailable

27

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

28

LINE,BRAKE,RH FRT. Substituted by 1930753

1930634

$84.93
