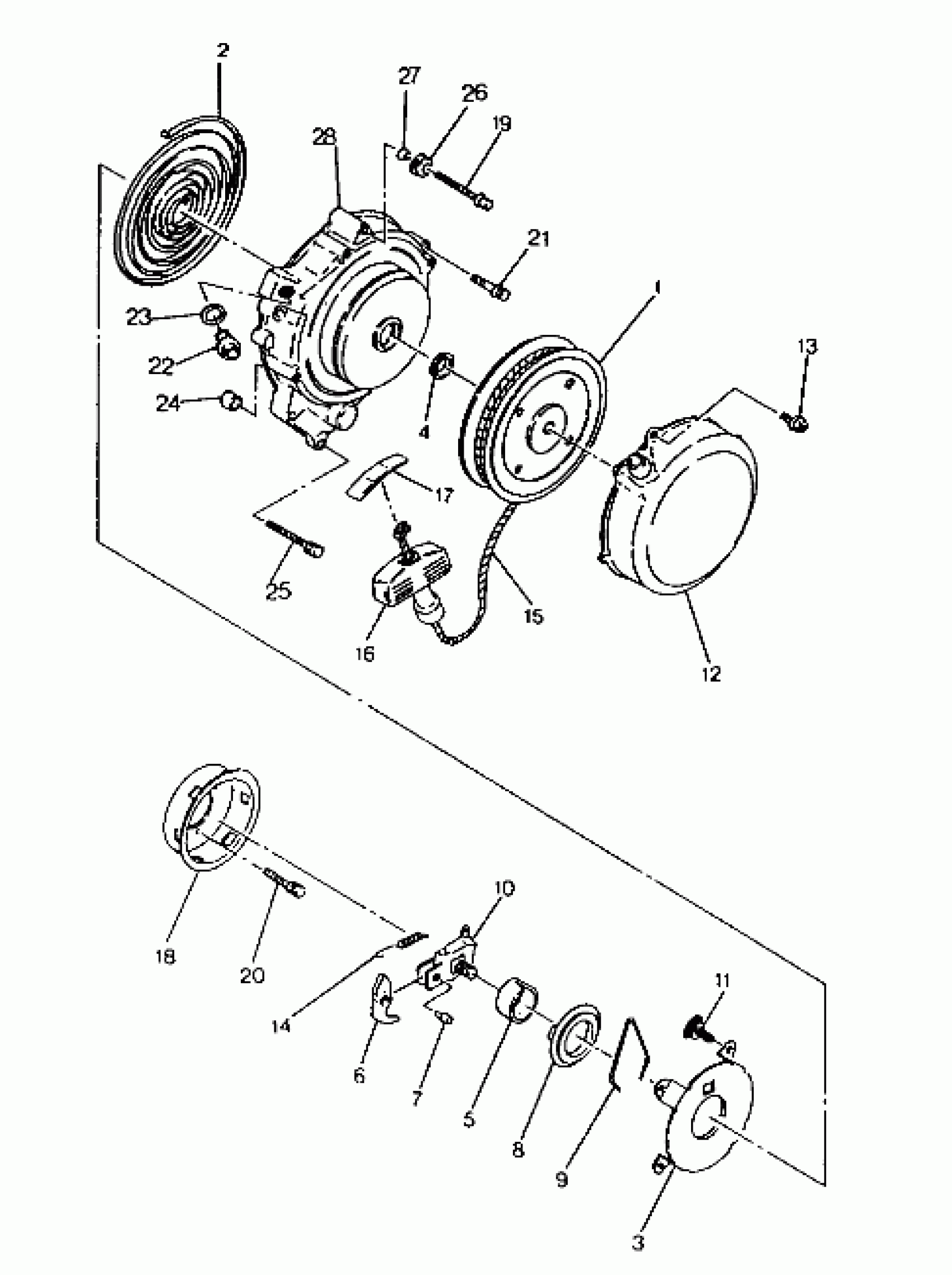

Polaris BIG BOSS 4X6 - W928627 RECOIL STARTER ASSEMBLY 250 4x6 / W928627 (4922902290045A) Diagram

#

Description
Price

1

REEL, COMPL.

3083814

$97.13

1

STARTER,RECOIL,COMPL. (Incl. 1 -18)

3083924

Unavailable

2

Spring, Spiral

3083815

$45.59

3

Case, Spring

3083925

Unavailable

4

Grommet

3083817

Unavailable

5

Hook, Spring

3083818

$39.99

6

Ratchet

3083819

Unavailable

7

Pin, Ratchet

3083820

Unavailable

8

GUIDE,RATCHET

3083821

Unavailable

9

SPRING,FRICTION

3083912

$25.59

10

GUIDE, COMPL.

3083913

Unavailable

11

SCREW & WASHER

3084176

Unavailable

12

CASE,STARTER,COMPL.

3083914

Unavailable

13

Bolt, Flange

3083826

Unavailable

14

Spring, Return

3083827

$11.59

15

ROPE,100 FT,NYL.STARTER

2870621

Unavailable

15

ROPE ASM. Substituted by 2870621 (Incl. 15-17)

3083828

Unavailable

16

Knob, Starter

3083659

Unavailable

17

Cap, Knob

3083660

Unavailable

18

Pulley, Starting

3083915

Unavailable

19

BOLT & WASHER ASM.

3083926

Unavailable

20

BOLT&WASHER ASM. Substituted by 3081665

3083792

$3.17

21

BOLT&WASHER ASM.

3082228

Unavailable

22

PLUG Substituted by 3086749

3083453

Unavailable

23

GASKET

3082956

$4.84

24

BUSHING, STARTER

3083669

Unavailable

25

BOLT&WASHER

3083729

$3.49

26

MOUNTING,RUBBER

3083731

$4.95

27

COLLAR

3083732

Unavailable

28

CASE,STARTER,B UNIT

3083911

$271.99
