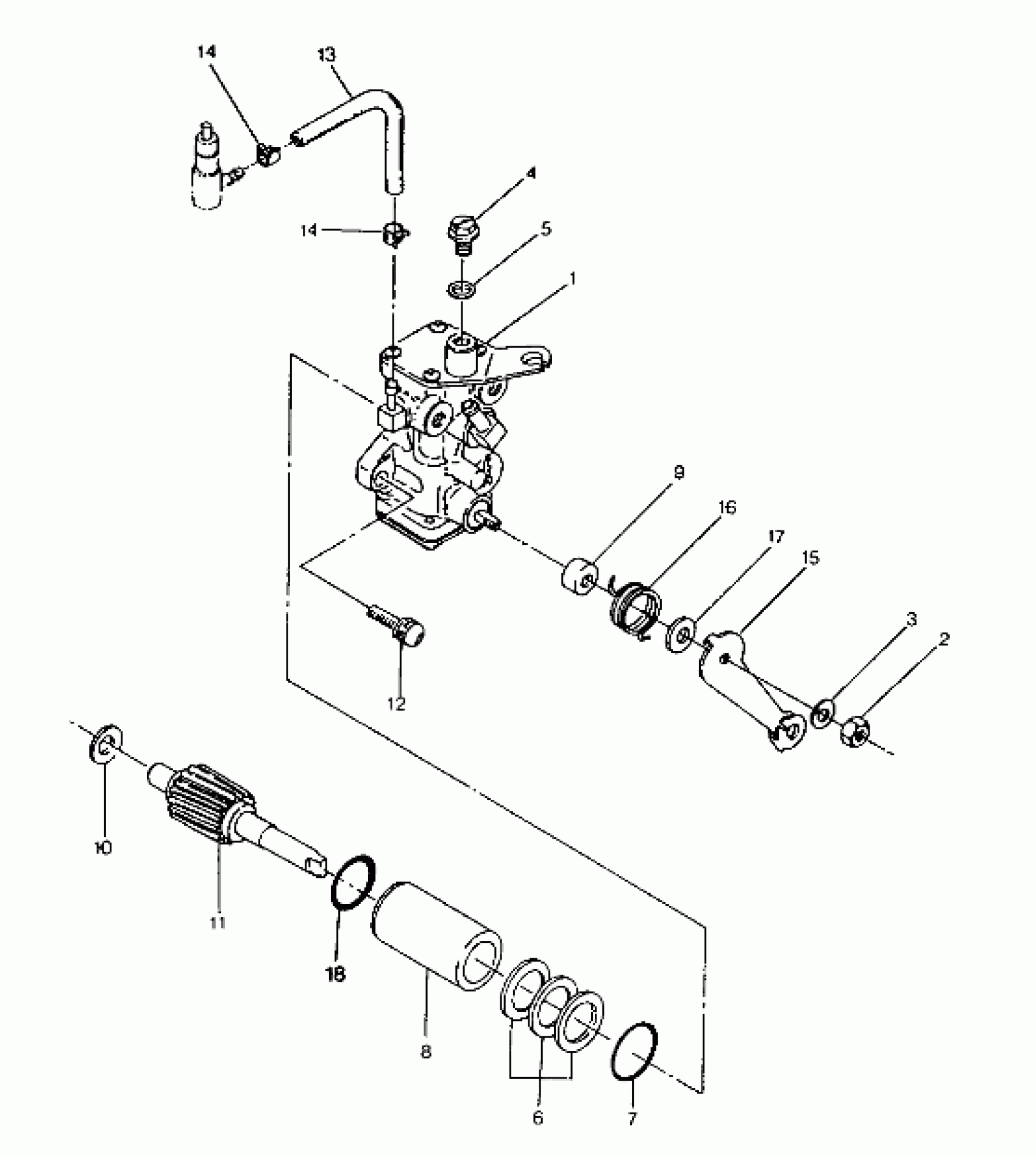

Polaris BIG BOSS 4X6 - W928627 OIL PUMP ASSEMBLY 250 4x6 / W928627 (4922902290041A) Diagram

#

Description
Price

1

OIL PUMP ASM. Substituted by 3085542 (Incl. 4,5,7,9,13-1 7)

3083806

Unavailable

2

NUT(10)

3083120

$3.19

3

WASHER-SPRING(10)

3083121

$299.99

4

SCREW-AIR VENT

3083125

Unavailable

5

PACKING(10)

3083126

$4.03

6

SPACER #3 (.6mm)

3083673

Unavailable

6

SPACER #2 (.3mm)

3083672

Unavailable

6

SPACER #1 (0.15mm)

3083671

Unavailable

7

O RING

3083127

Unavailable

8

BUSHING(OIL PUMP)

3083353

$31.99

9

Cap

3083758

$5.75

10

SPACER *

3083428

$1.59

11

Gear, Small

3083429

Unavailable

12

SCREW & WASHER Substituted by 3083783

3084198

Unavailable

13

PIPE, RUBBER Substituted by 3083446

3083139

Unavailable

14

CLAMP-HOSE,(10)

3083141

$1.49

14

CLAMP-HOSE,(10)

3083141

$1.49

15

LEVER, CONTROL

3083935

Unavailable

16

SPRING-RETURN

3083123

Unavailable

17

Collar, Camshaft

3083757

$4.39

18

O RING

3083129

Unavailable
