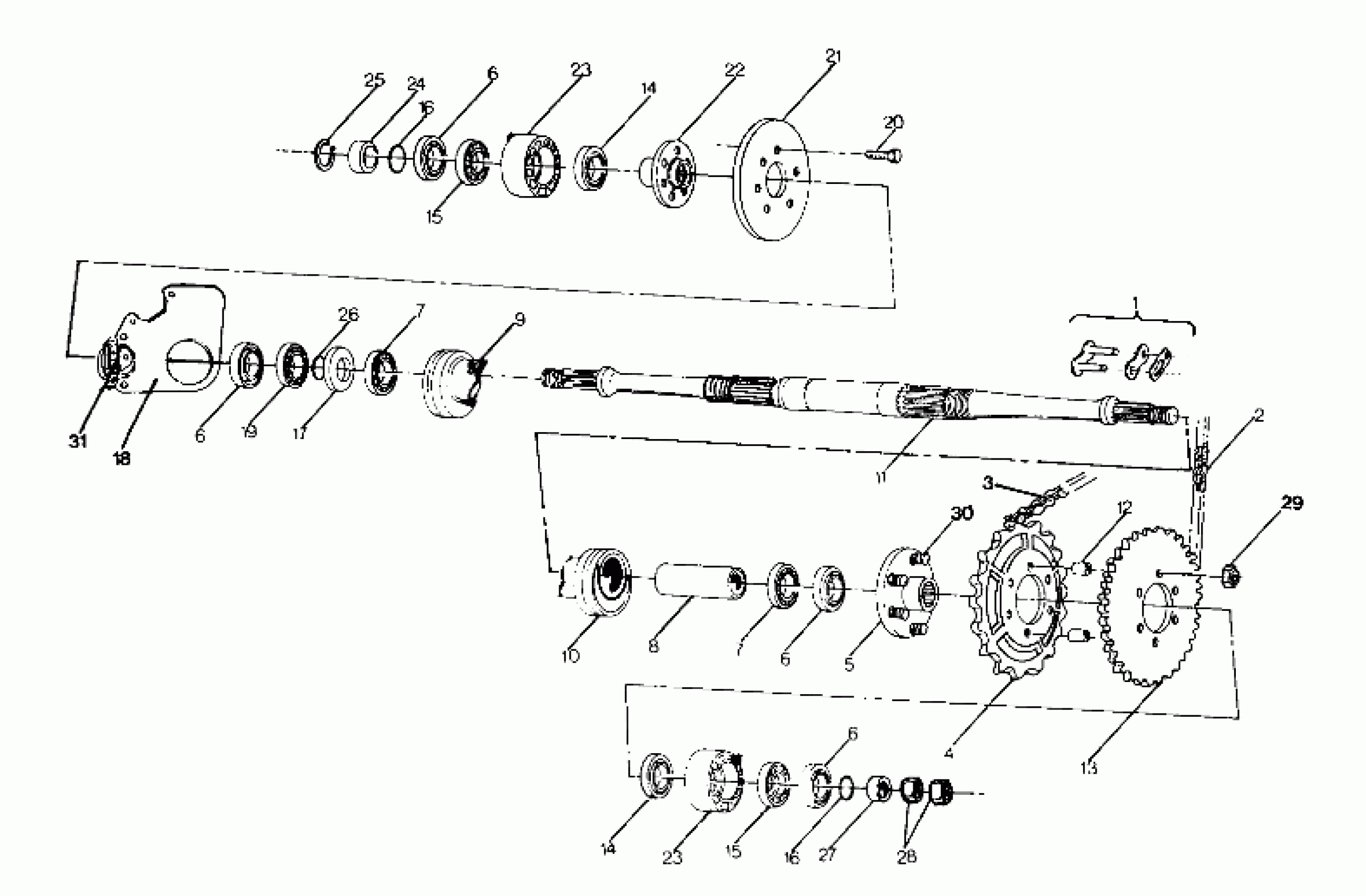

Polaris BIG BOSS 4X6 - W928627 MIDDLE DRIVE ASSEMBLY 250 4x6 / W928627 (4922902290027A) Diagram

#

Description
Price

1

CONNECTOR LINK

3225024

$19.99

2

CHAIN,DRIVE,108P (Includes Connector)

3224045

Unavailable

3

CHAIN,DRIVE, 88P Substituted by 3224056-088 (Includes Connector)

3224042

Unavailable

4

SPROCKET, 42T Substituted by 3222070

3223009

Unavailable

5

HUB, SPROCKET Substituted by 1380025-067

1380025

Unavailable

6

SEAL, REAR AXLE

3610013

$19.99

6

SEAL, REAR AXLE

3610013

$19.99

6

SEAL, REAR AXLE

3610013

$19.99

6

SEAL, REAR AXLE

3610013

$19.99

7

Bearing, Ball

3515501

$27.99

7

Bearing, Ball

3515501

$27.99

8

TUBE,BEARING SPACER

5010204

Unavailable

9

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

10

HOUSING, AXLE

5130663

Unavailable

11

AXLE

5020533

Unavailable

12

SPACER

5332935

Unavailable

13

SPROCKET, 30T

3222047

$189.99

14

SEAL

3610024

$32.37

14

SEAL

3610024

$32.37

15

BEARING

3514807

$23.99

15

BEARING

3514807

$23.99

16

O RING

5410541

Unavailable

16

O RING

5410541

Unavailable

17

SPACER

5020531

Unavailable

18

MOUNT,BRAKE CALIPER Substituted by 5130944

5130704

$182.13

19

BEARING

3515502

Unavailable

20

BOLT(10)

7515488

Unavailable

21

DISC, BRAKE Substituted by 5242935

5211326

$89.03

22

HUB, BRAKE, BLK.

1910041-067

Unavailable

23

HOUSING,SWING ARM Substituted by 5130945

5130696

$169.99

23

HOUSING,SWING ARM Substituted by 5130945

5130696

$169.99

24

SPACER

5020530

Unavailable

25

RING, SNAP(10)

7710414

Unavailable

26

O RING

5410537

Unavailable

27

SPACER

5020532

Unavailable

28

NUT, JAM

7543601

Unavailable

29

NUT LOCK(10)

7542403

$3.99

30

STUD,SPROCKET(10)

7515520

$26.39

31

Caliper (See Middle Axle Brake Assembly Page 21/B11)

-------

Unavailable
