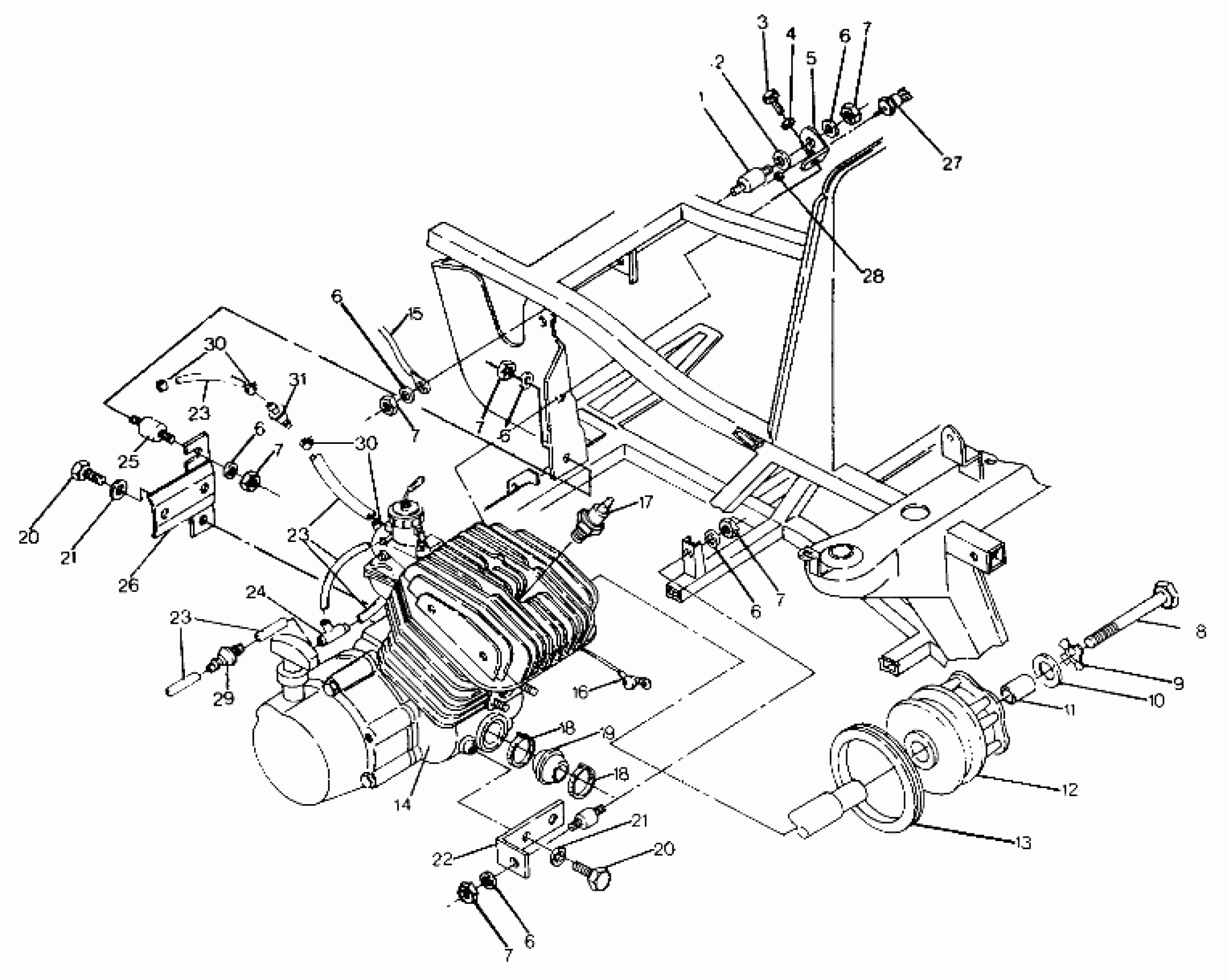

Polaris BIG BOSS 4X6 - W928627 ENGINE MOUNTING 250 4x6 / W928627 (4922902290006A) Diagram

#

Description
Price

1

MOUNT,MOTOR

3110026

Unavailable

2

INSULATOR,MOTOR MT.

5430802

$27.99

3

BOLT(10)

7515321

$1.49

4

LOCK WASHER(10)

7552901

$1.49

5

MOUNT, ENG.,TOP

5220471-067

Unavailable

6

WASHER(10)

7555801

$3.99

6

WASHER(10)

7555801

$3.99

6

WASHER(10)

7555801

$3.99

6

WASHER(10)

7555801

$3.99

6

WASHER(10)

7555801

$3.99

6

WASHER(10)

7555801

$3.99

7

NUT LOCK(10)

7542403

$3.99

7

NUT LOCK(10)

7542403

$3.99

7

NUT LOCK(10)

7542403

$3.99

7

NUT LOCK(10)

7542403

$3.99

7

NUT LOCK(10)

7542403

$3.99

7

NUT LOCK(10)

7542403

$3.99

8

BOLT(10)

7512566

$30.79

9

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

10

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

11

BUSHING-.437 X.770 X.50

5430261

$7.19

12

CLUTCH, DRIVE Substituted by 1321497

1321519

$697.13

13

SEAL,ENG./CLUTCH

5410411

Unavailable

14

ENG.EC25PF-05(ATV) [No Longer Available]

1211460

Unavailable

15

CABLE,GROUND/ENG.

4010067

Unavailable

16

INSULATOR-CABLE

5410346

$6.39

17

SPARKPLUG (10)

3070156

$3.99

18

CLAMP

7080136

Unavailable

18

CLAMP

7080136

Unavailable

19

BOOT,CLUTCH INTAKE

5410421

$11.19

20

SCREW(10)

7512490

$3.99

20

SCREW(10)

7512490

$3.99

21

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

21

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

22

PLATE,FR.MTR.MT.

5220881-067

Unavailable

23

LINE,VENT,(38.0'') Substituted by 8360009-600

5521087

Unavailable

23

LINE,VENT,(38.0'') Substituted by 8360009-600

5521087

Unavailable

23

LINE,VENT,(38.0'') Substituted by 8360009-600

5521087

Unavailable

24

Fitting, Tee

7052005

Unavailable

25

MOUNT, MOTOR

3110028

Unavailable

26

MOUNT, REAR Substituted by 5241056-067

5220757-067

Unavailable

27

THERMOSTAT,COOL.FAN Substituted by 4010211

4110114

Unavailable

28

NUT(10)

7541925

$1.49

29

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

30

CLAMP-HOSE,(10)

7080236

$1.59

30

CLAMP-HOSE,(10)

7080236

$1.59

31

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65
