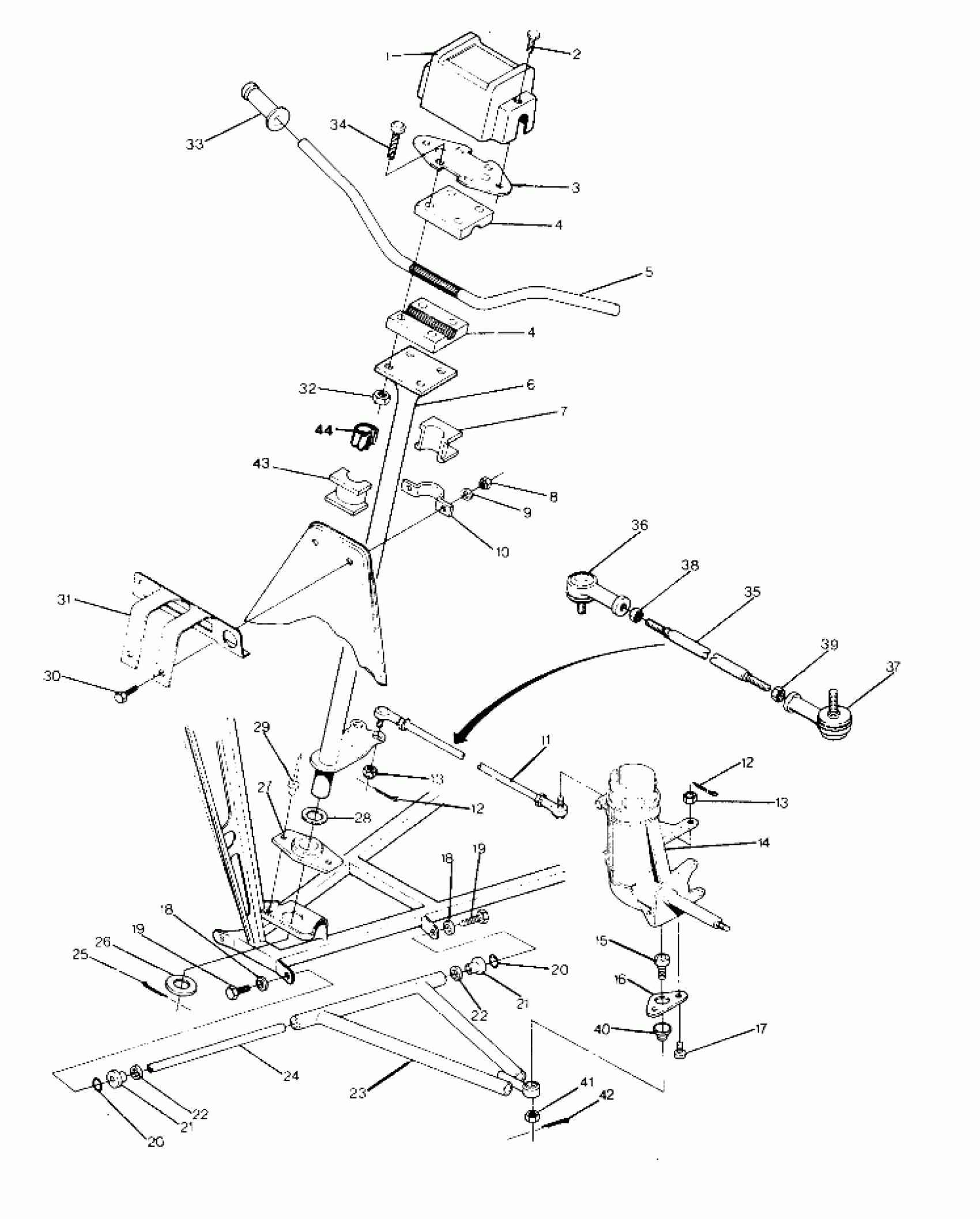

Polaris BIG BOSS 4X6 - W918627 STEERING ASSEMBLY BIG BOSS 4X6 (4919801980011A) Diagram

#

Description
Price

1

PAD, HANDLEBAR

5810379

$40.46

2

BOLT(10) Substituted by 7515197

7512286

$1.19

3

MOUNT,HDLBR. PAD Substituted by 5245051

5220946

$5.71

4

BLOCK,HANDLEBAR Substituted by 5630187-067

5630187

$4.35

4

BLOCK,HANDLEBAR Substituted by 5630187-067

5630187

$4.35

5

TUBE,HDLBR,BLACK Substituted by 5242988-067

5224316-067

Unavailable

6

POST, STEERING

1843028-067

Unavailable

7

BUSHING,STRG.,UPPER Substituted by 5431572

5430966

$8.73

8

NUT-5/16-18 NYLOK-Y

7542324

$0.79

9

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

10

BUSHING,UPPER STRG. Substituted by 5220887-067

5220887

$32.37

11

TIE ROD ASM. Substituted by 1822307

1822070

Unavailable

12

PIN COTTER(10)

7661203

$1.19

12

PIN COTTER(10)

7661203

$1.19

13

NUT, CASTLE(10)

7546904

$4.76

13

NUT, CASTLE(10)

7546904

$4.76

14

SUPPORT,LH STRUT&SPINDLE Substituted by 5130803

5130655

Unavailable

14

SUPPORT,RH STRUT&SPINDLE Substituted by 5130804

5130656

Unavailable

15

BALL JOINT Substituted by 7080673

7080364

$28.32

16

BRACKET-BALL JOINT

5211121

$32.37

17

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.19

18

WASHER(10)

7552603

$0.79

18

WASHER(10)

7552603

$0.79

19

BOLT(10) Substituted by 7512492

7515458

$1.19

19

BOLT(10) Substituted by 7512492

7515458

$1.19

20

O RING

5410458

Unavailable

20

O RING

5410458

Unavailable

21

BEARING,'A' ARM Substituted by 2200474

3576509

$74.99

21

BEARING,'A' ARM Substituted by 2200474

3576509

$74.99

22

WASHER(10)

7555774

Unavailable

22

WASHER(10)

7555774

Unavailable

23

A FRAME, LH Substituted by 1580039-067

1580039

Unavailable

23

A FRAME, RH Substituted by 1580040-067

1580040

Unavailable

24

SHAFT,'A' ARM

5020477

Unavailable

25

PIN, COTTER(10)

7661404

$4.76

26

BUSHING(10)

7555781

Unavailable

27

BUSHING,STRG.,LOWER Substituted by 5431570

5430895

Unavailable

28

BUSHING(10)

7556401

Unavailable

29

RIVET, (MONOBOLT) Substituted by 7661637

7661620

$1.19

30

SCREW(10)

7512307

$3.97

31

BRKT, IGN. PANEL

5220965-067

Unavailable

32

NUT-LOCK(10)

7542122

$1.19

33

GRIP, HANDLEBAR

5431030

$28.32

34

BOLT,(10)

7512265

$3.97

35

TIE ROD

5020478

$52.60

36

ROD END, RH Substituted by 7060172

7060138

$60.70

37

ROD END

7060147

$60.70

38

NUT, RH, 10 MM.(10)

7546901

$2.38

39

NUT, LH, 10 MM.(10)

7546902

Unavailable

40

Boot, Rubber

5410548

$4.84

41

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

43

BUSHING,UPPER STRG. Substituted by 5431573

5431138

$8.73

44

CLIP(10)

7080278

$2.62
