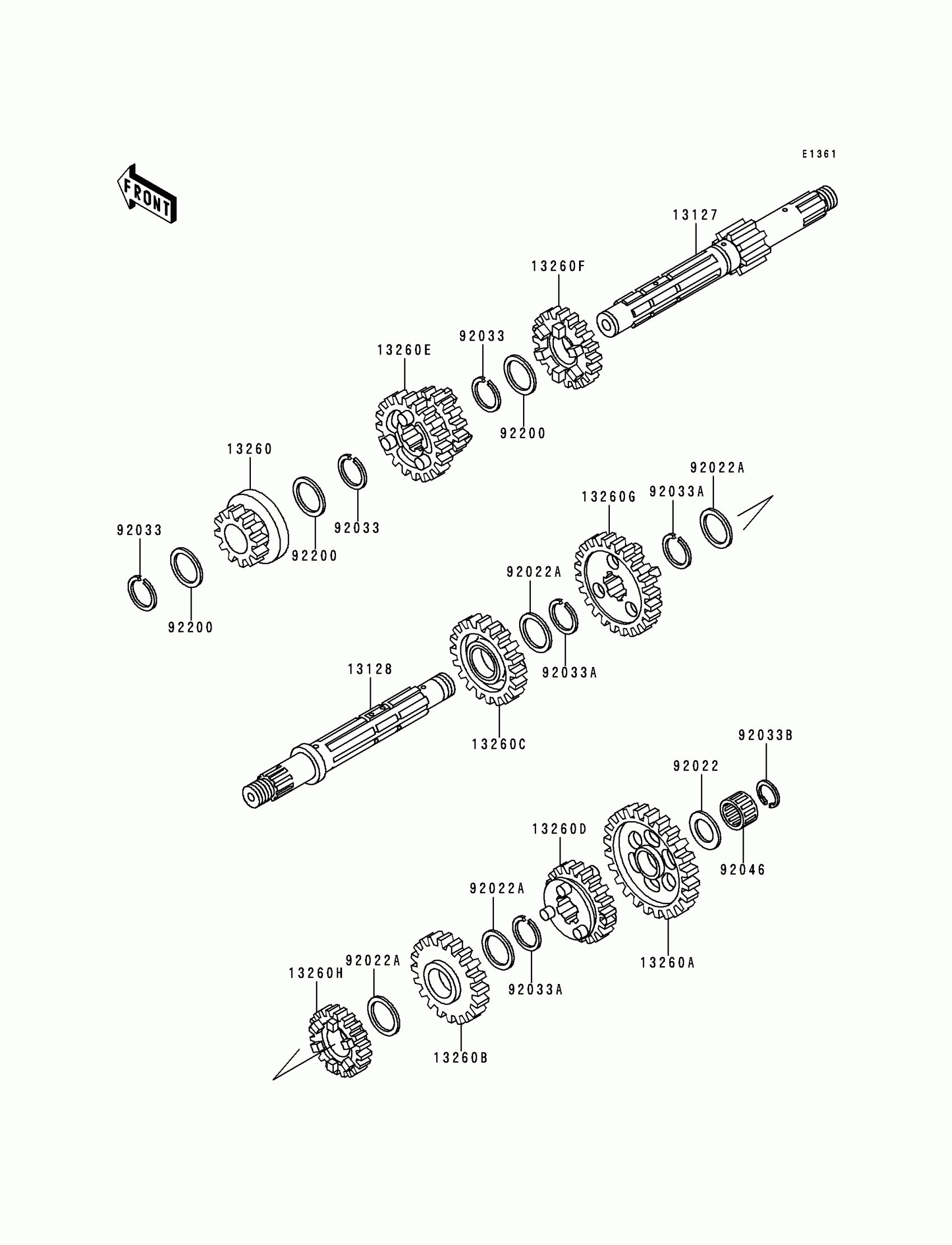

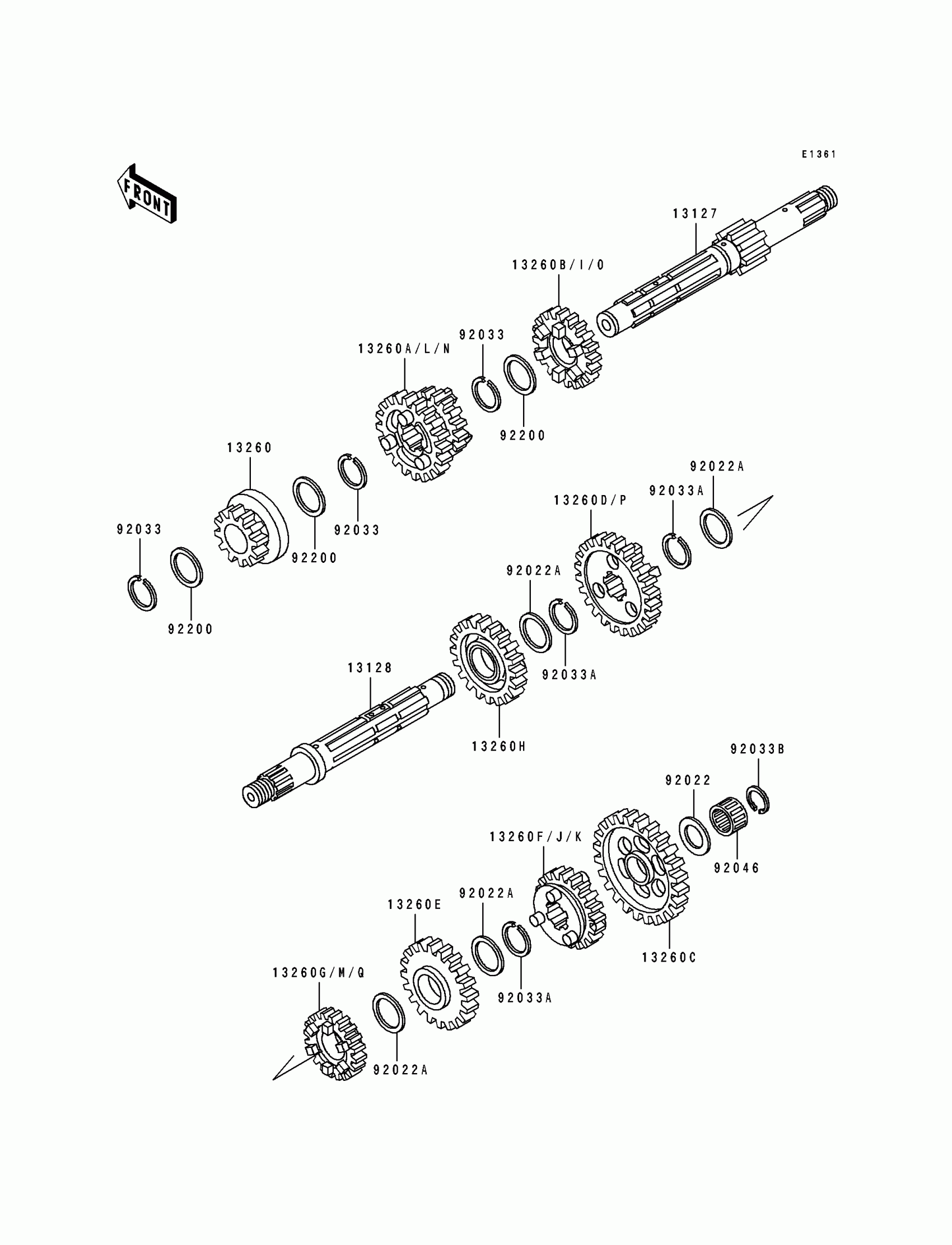

Kawasaki Bayou 400 4X4 Transmission Diagram

SHAFT-TRANSMISSION INPUT,11T

13127-1211

Unavailable

SHAFT-TRANSMISSION OUTPUT

13128-1185

Unavailable

GEAR,INPUT 2ND,16T

13260-1211

Unavailable

GEAR,OUTPUT LOW,42T

13260-1214

Unavailable

GEAR,OUTPUT 3RD,32T

13260-1216

Unavailable

GEAR,REVERSE,31T

13260-1219

Unavailable

GEAR,OUTPUT 4TH,27T

13260-1449

Unavailable

GEAR,INPUT 3RD&TOP,21T&34T

13260-1522

$184.56

GEAR,INPUT 4TH,26T

13260-1523

$137.91

GEAR,OUTPUT 2ND,36T

13260-1524

Unavailable

GEAR,OUTPUT TOP,26T

13260-1525

Unavailable

WASHER,20.5X30X1,STEEL

92022-112

$8.86

WASHER,25.3X30X0.5

92022-159

$8.58

RING-SNAP,20X25.5X1.2

92033-025

$4.96

RING-SNAP,24MM

92033-026

$8.79

RING-SNAP,18MM

92033-029

$9.82

BEARING-NEEDLE,KT202614

92046-1170

$18.16

WASHER,22.3X29X1.0

92200-1125

Unavailable
