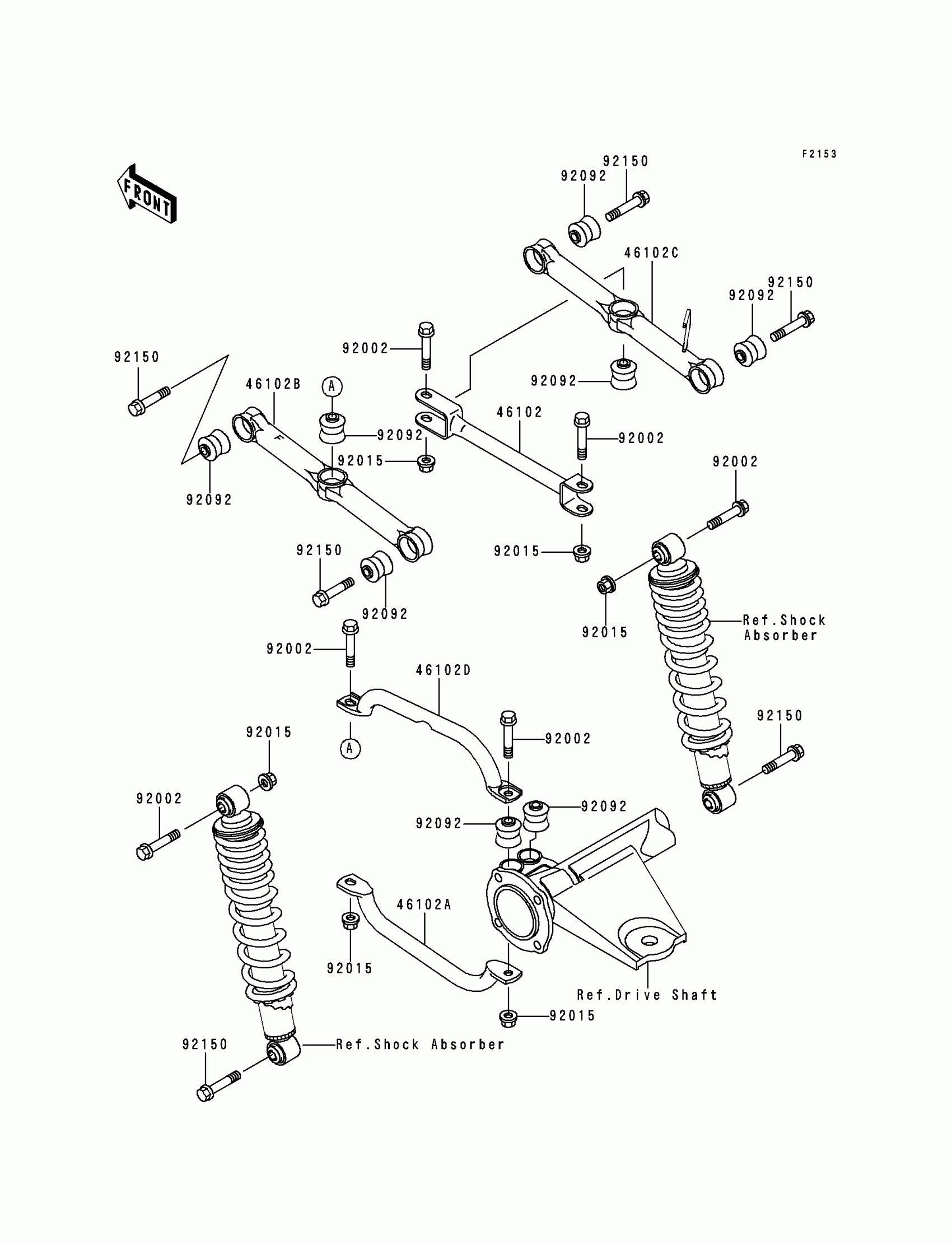

Kawasaki Bayou 400 4X4 Rear Suspension Diagram

ROD,SUSPENSION,RIGHT CROSS

46102-1213

$30.12

ROD,SUSPENSION,RR,LH,INSIDE

46102-1242

$30.65

ROD,SUSPENSION,RR,LH,OUTSIDE

46102-1320

Unavailable

ROD,SUSPENSION,RR,RH,OUTSIDE

46102-1321

Unavailable

ROD,SUSPENSION,LEFT CROSS

46102-1330

$20.27

BOLT,FLANGED,10X53.5

92002-1529

$8.20

BOLT,FLANGED,10X49

92002-1562

$9.15

NUT,LOCK,10MM

92015-1597

$4.18

BUSHING-RUBBER

92092-1064

$12.18

BOLT,FLANGED,10X49

92150-1048

$7.69
