Description

Price

11012

CAP,WHEEL

11012-1519

Unavailable

11060

GASKET

11060-1561

$8.12

14014

PLATE-POSITION

14014-1072

$18.76

41035

PANEL-ASSY-BRAKE,RR,RH

41035-1305

$607.21

41038

DRUM,REAR BRAKE

41038-1202

$344.62

41045

WASHER-BRAKE SHOE

41045-006

$7.22

41048

SHOE-BRAKE

41048-1082

$38.18

41049

SPRING,BRAKE SHOE

41049-012

$9.49

41050

CAM-BRAKE

41050-1077

$72.13

41053

LEVER-BRAKE CAM

41053-1078

Unavailable

41072

NUT,6MM

41072-007

$3.92

41085

INDICATOR

41085-1062

$15.98

42045

NUT,CASTLE,18MM

42045-018

$9.23

49030

HUB,RR,LH

49030-1111

Unavailable

92002

BOLT,10X30

92002-1918

$6.61

92022

WASHER,18.3X34X4.5

92022-1658

$3.92

92033

RING-SNAP,15MM

92033-1250

$5.18

92037

CLAMP,TUBE

92037-147

$7.34

92041

COTTER,4.0X35

92041-1053

$3.92

92049

SEAL-OIL,SD07 190 225 16 NS

92049-1312

$134.04

92055

RING-O,ID=16.4

92055-1376

$4.60

92055A

RING-O,ID=24.5

92055-1459

$4.73

92059

TUBE,4.7X9.5X1240

92059-1968

$23.18

92072

BAND,L=188

92072-1239

$1.73

92143

COLLAR

92143-1585

Unavailable

92144

SPRING

92144-1365

$12.95

92150

BOLT,10MM

92150-1110

$5.88

92150A

BOLT

92150-1289

$5.33

92200

WASHER,18.5X52X4.5

92200-1139

$8.10

112

BOLT-UPSET

112H0640

$3.90

130

BOLT-FLANGED,10X12

130B1012

$4.37

461

WASHER SPRING 10MM

461F1000

$0.67

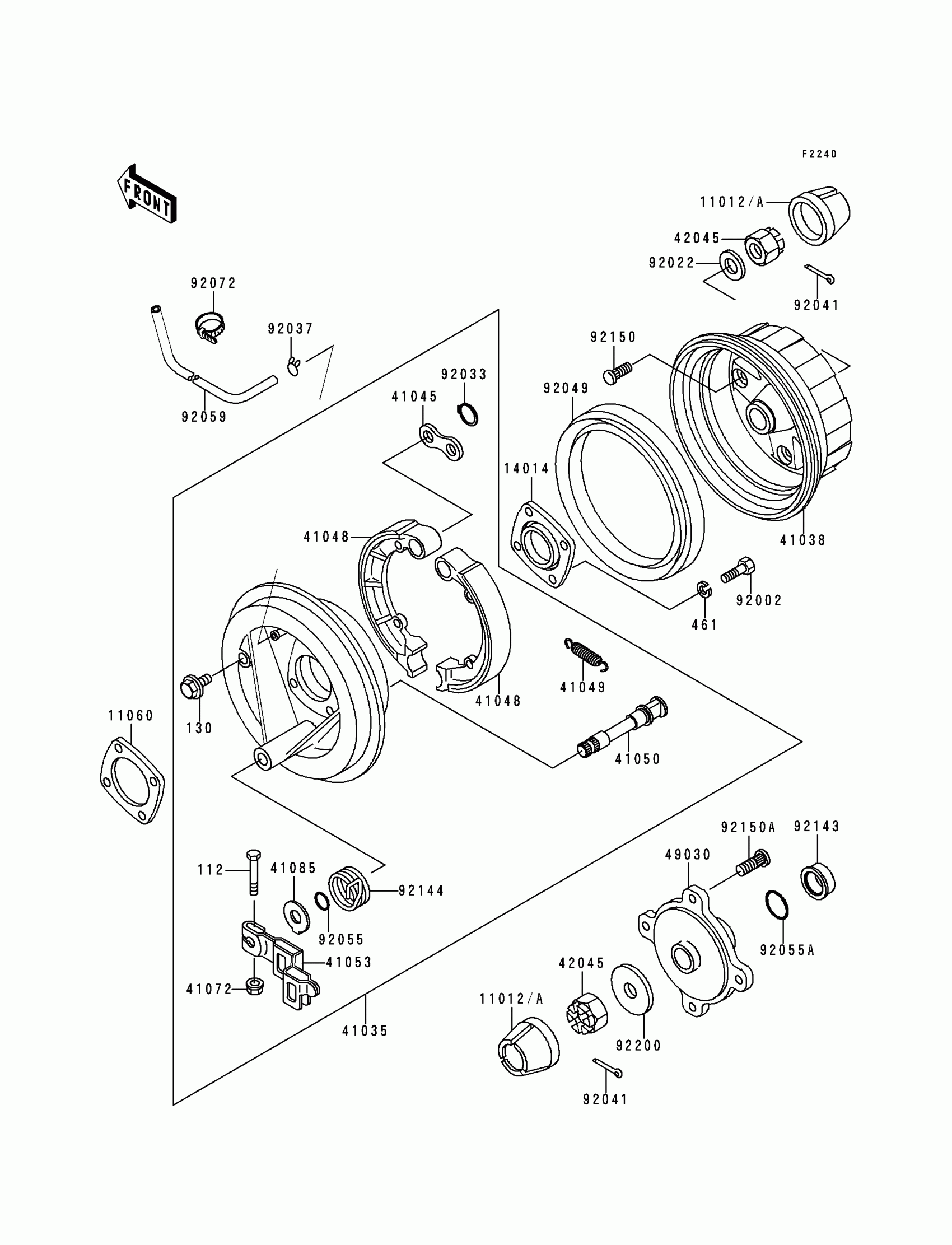

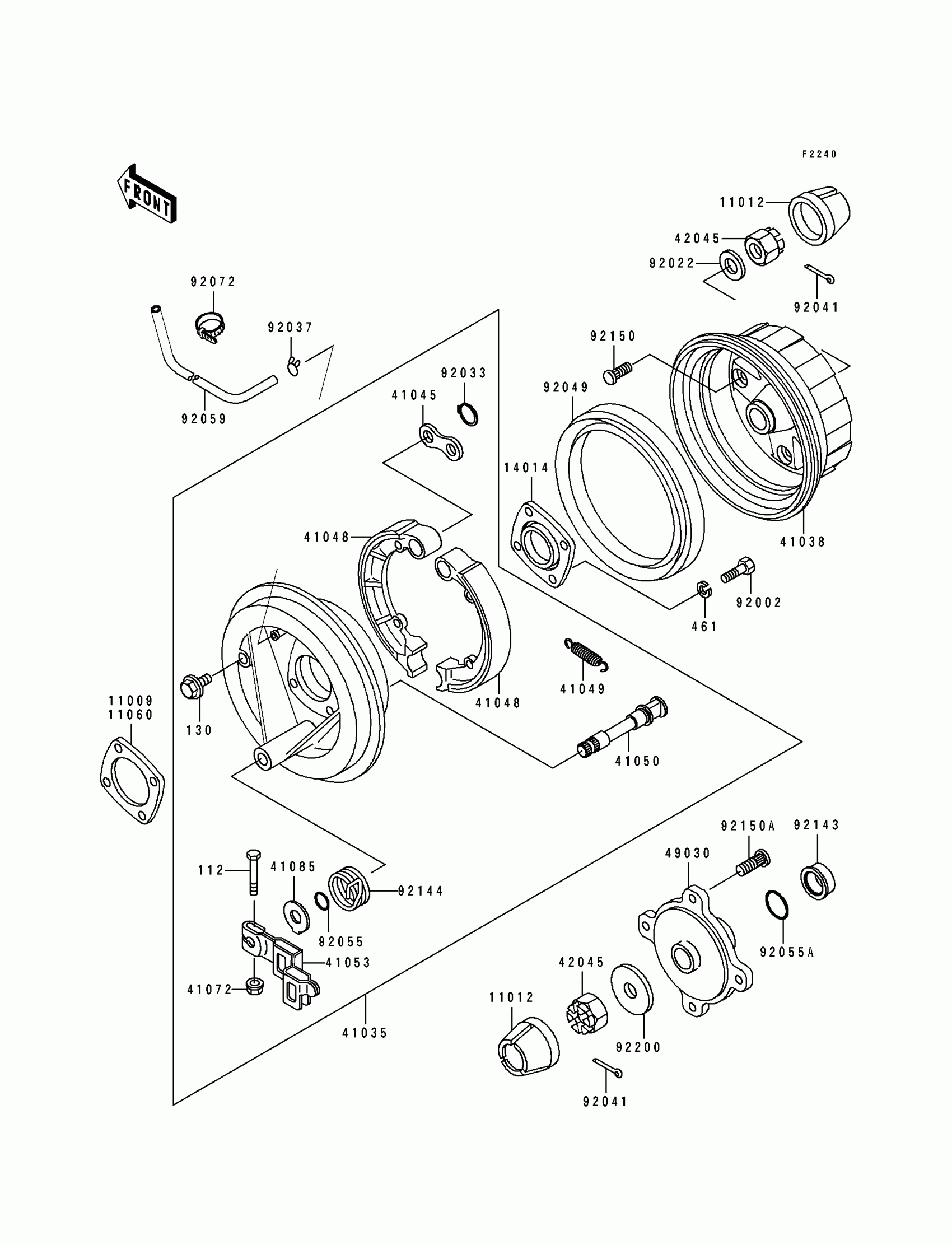

Kawasaki Bayou 400 4X4 Rear Hub Diagram

CAP,WHEEL

GASKET

PLATE-POSITION

PANEL-ASSY-BRAKE,RR,RH

DRUM,REAR BRAKE

WASHER-BRAKE SHOE

SHOE-BRAKE

SPRING,BRAKE SHOE

CAM-BRAKE

LEVER-BRAKE CAM

NUT,6MM

INDICATOR

NUT,CASTLE,18MM

HUB,RR,LH

BOLT,10X30

WASHER,18.3X34X4.5

RING-SNAP,15MM

CLAMP,TUBE

COTTER,4.0X35

SEAL-OIL,SD07 190 225 16 NS

RING-O,ID=16.4

RING-O,ID=24.5

TUBE,4.7X9.5X1240

BAND,L=188

COLLAR

SPRING

BOLT,10MM

BOLT

WASHER,18.5X52X4.5

BOLT-UPSET

BOLT-FLANGED,10X12

WASHER SPRING 10MM
