Description

Price

11046

BRACKET,BAND

11046-1319

$9.21

11046

BRACKET,BAND

11046-1319

$9.21

14090B

COVER,REAR FENDER,F.GREEN

14090-1160-59

$39.77

14090C

COVER,REAR FENDER,BLACK

14090-1160-6D

$39.77

35011

STAY,RR FENDER,LH

35011-1618

$27.76

35011A

STAY,RR FENDER,RH

35011-1619

Unavailable

35019C

FLAP,RR,LH,BLACK

35019-1298-6Z

$50.28

35019E

FLAP,RR,RH,BLACK

35019-1299-6Z

$50.28

35019F

FLAP,RR,LWR,LH,F.BLACK

35019-1325-6Z

$37.82

35019G

FLAP,RR,LWR,RH,F.BLACK

35019-1326-6Z

$37.82

35023B

FENDER-REAR,F.GREEN

35023-1332-59

Unavailable

35023C

FENDER-REAR,BLACK

35023-1332-6D

$239.72

92009

SCREW,6X22,BLACK

92009-1256

$2.78

92009A

SCREW,6X16

92009-1621

Unavailable

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92022

WASHER,6.5X16X1.0

92022-1093

$2.08

92027

COLLAR

92027-122

$8.60

92027

COLLAR

92027-122

$8.60

92072

BAND

92072-1085

$18.15

92072

BAND

92072-1085

$18.15

92072A

BAND,REAR FENDER COVER

92072-1291

$17.55

92074

PLUG,11X3.2

92074-038

$7.22

92075

DAMPER

92075-1830

$5.59

92075A

DAMPER

92075-1936

$5.47

92093

SEAL,REAR FENDER COVER

92093-1262

$16.53

92143

COLLAR,L=19.6

92143-1100

$7.79

130

BOLT-FLANGED,6X18

130C0618

$1.69

180

BOLT-UPSET-WS,6X35

180C0635

$3.45

180A

BOLT-UPSET-WS

180D0614

Unavailable

223

SCREW-PAN-WS-CROS,4X6

223C0406

$3.85

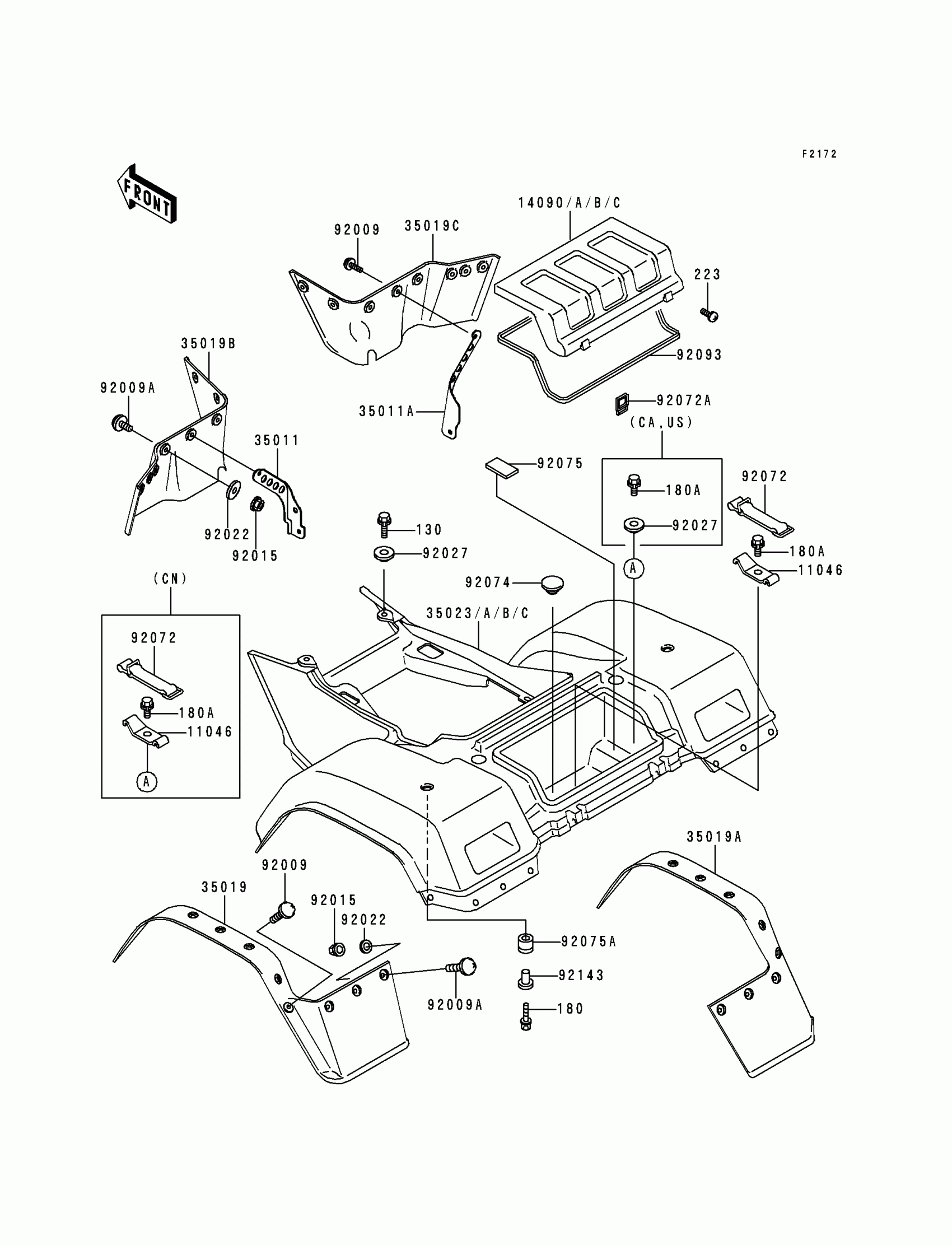

Kawasaki Bayou 400 4X4 Rear Fender(s) Diagram

BRACKET,BAND

BRACKET,BAND

COVER,REAR FENDER,F.GREEN

COVER,REAR FENDER,BLACK

STAY,RR FENDER,LH

STAY,RR FENDER,RH

FLAP,RR,LH,BLACK

FLAP,RR,RH,BLACK

FLAP,RR,LWR,LH,F.BLACK

FLAP,RR,LWR,RH,F.BLACK

FENDER-REAR,F.GREEN

FENDER-REAR,BLACK

SCREW,6X22,BLACK

SCREW,6X16

NUT,LOCK,FLANGED,6MM

WASHER,6.5X16X1.0

COLLAR

COLLAR

BAND

BAND

BAND,REAR FENDER COVER

PLUG,11X3.2

DAMPER

DAMPER

SEAL,REAR FENDER COVER

COLLAR,L=19.6

BOLT-FLANGED,6X18

BOLT-UPSET-WS,6X35

BOLT-UPSET-WS

SCREW-PAN-WS-CROS,4X6
