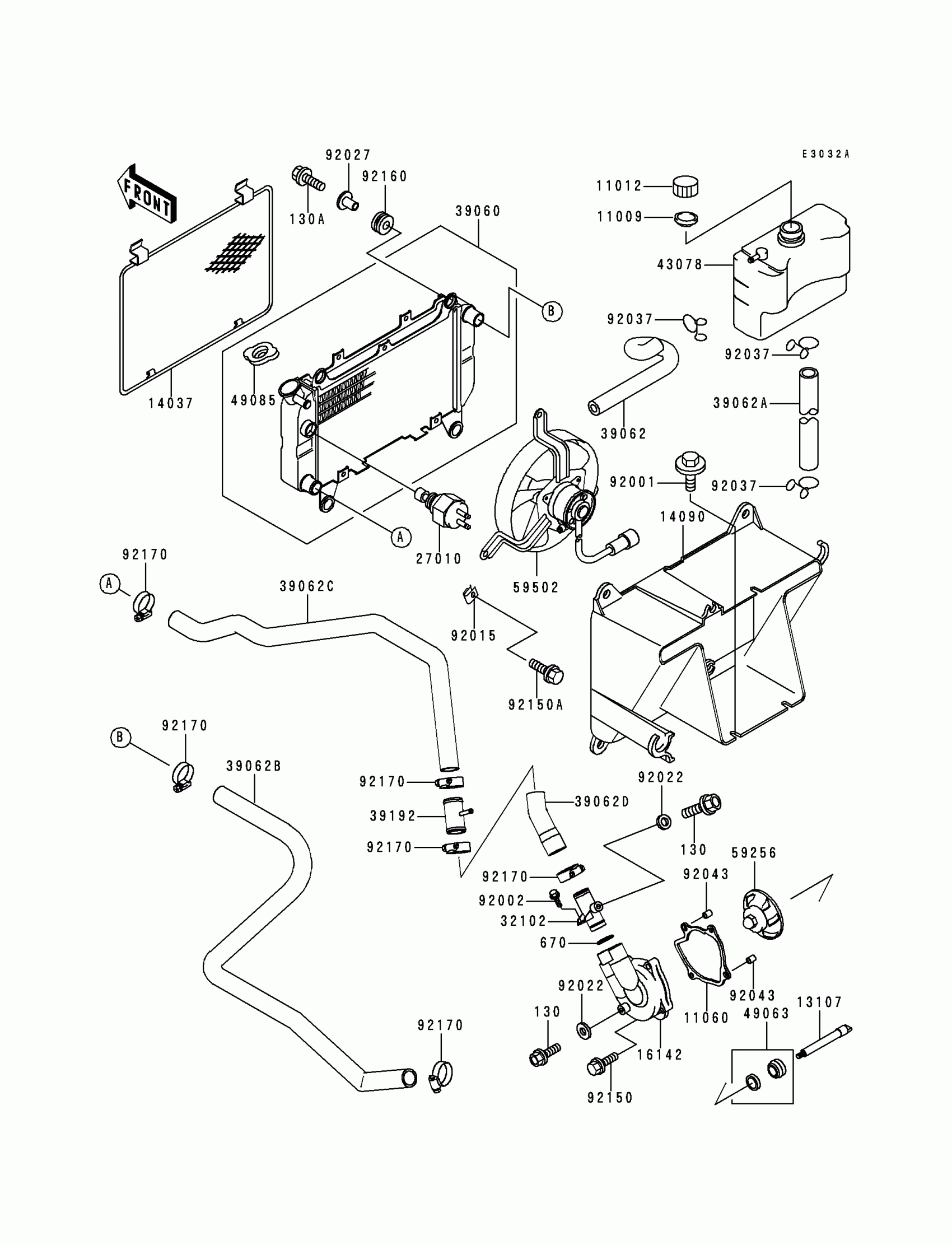

Kawasaki Bayou 400 4X4 Radiator(LF400AE532918-) Diagram
#
130
BOLT-FLANGED
130J0610
$2.33
130A
BOLT-FLANGED,8X30
130J0830
$4.15
670
O RING,18MM
670B2018
$1.42
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11012
CAP
11012-1084
$1.72
11060
GASKET,PUMP COVER
11060-1308
$12.67
13107
SHAFT,WATER PUMP
13107-1287
Unavailable
14037
SCREEN
14037-1153
Unavailable
14090
COVER,RADIATOR
14090-1491
Unavailable
16142
COVER-PUMP
16142-1083
Unavailable
27010
SWITCH,FAN
27010-1202
$98.81
32102
PIPE,CYLINDER
32102-1719
$26.22
39060
RADIATOR
39060-1110
Unavailable
39062
HOSE-COOLING
39062-1257
$35.82
39062A
HOSE-COOLING,5.5X10.5X420
39062-1586
Unavailable
39062B
HOSE-COOLING,HEAD-RADIATOR
39062-1587
$35.95
39062C
HOSE-COOLING
39062-1757
Unavailable
39062D
HOSE-COOLING
39062-1758
Unavailable
39192
PIPE-WATER
39192-1020
$16.42
43078
RESERVOIR
43078-1146
Unavailable
49063
SEAL-MECHANICAL
49063-1054
$16.68
49085
CAP-ASSY-PRESSURE
49085-1066
$37.42
59256
IMPELLER
59256-1060
$36.68
59502
FAN-ASSY
59502-1102
$665.02
92001
BOLT,6X16
92001-1950
$4.31
92002
BOLT,6X12
92002-1569
Unavailable
92015
NUT
92015-1487
$4.80
92022
WASHER,6.2X11X1
92022-304
$3.65
92027
COLLAR
92027-1956
$9.13
92037
CLAMP,TUBE
92037-147
$7.34
92043
PIN,DOWEL,8X10
92043-1302
$1.03
92150
BOLT,6X30
92150-1021
Unavailable
92150A
BOLT,6X12
92150-1186
$3.37
92160
DAMPER
92160-1007
$5.52
92170
CLAMP
92170-1497
$16.83
