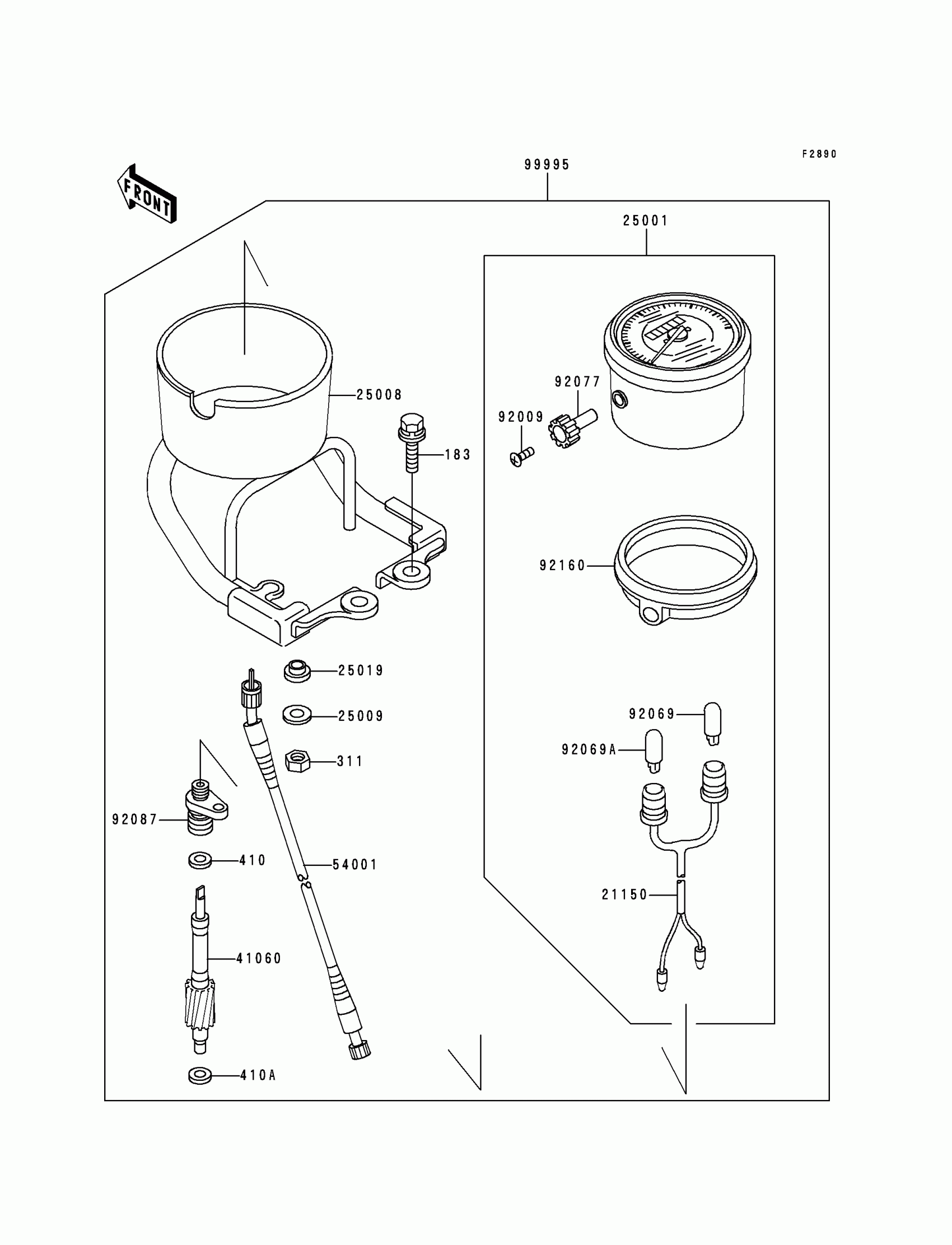

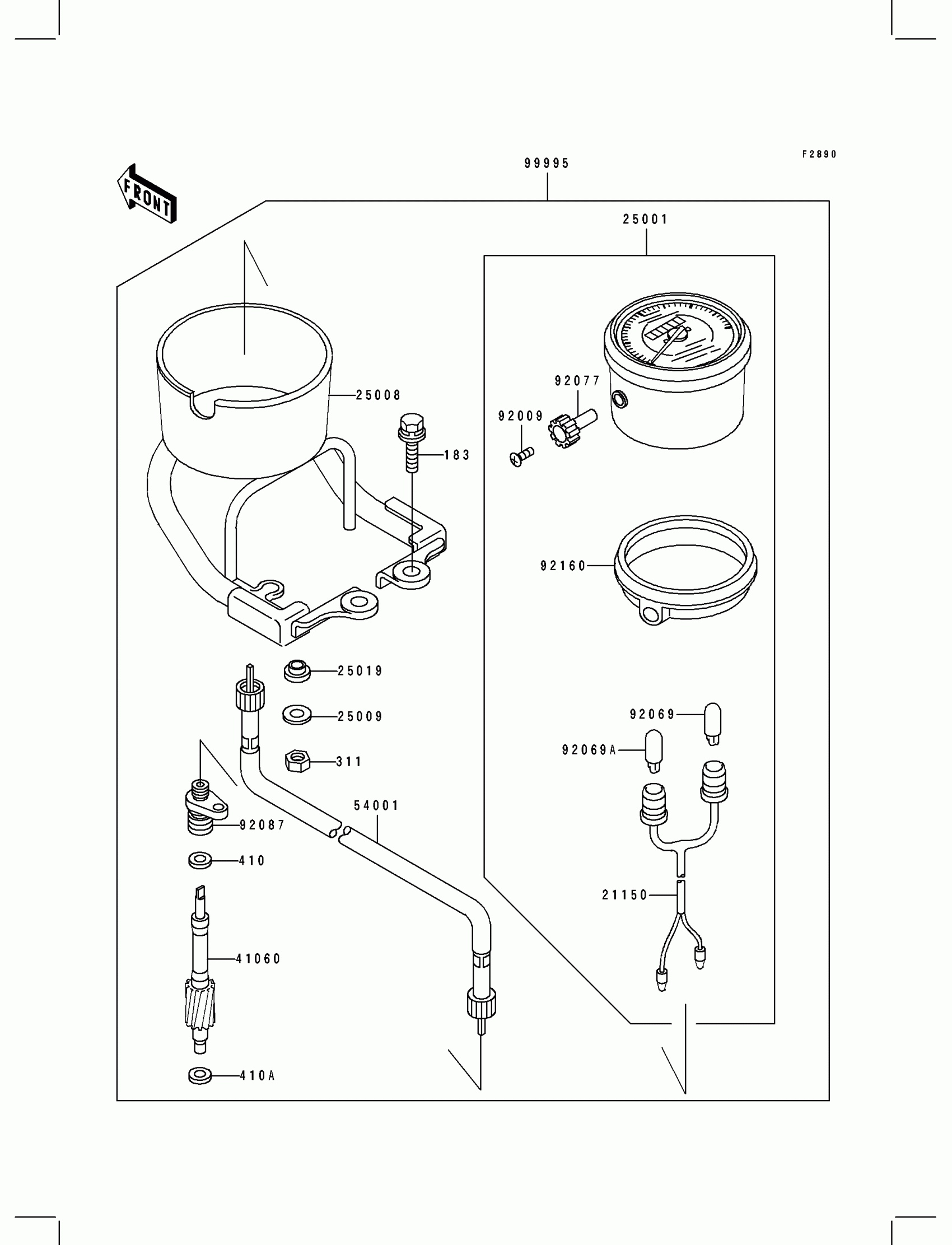

Kawasaki Bayou 400 4X4 Optional Parts(Meter) Diagram

Description

Price

183

BOLT-UPSET-WS-SMALL

183J0814

$4.73

21150

CORD-ASSY,SPEEDOMETER

21150-1056

Unavailable

25001

METER-ASSY,SPEED,MPH

25001-1895

Unavailable

25008

BRACKET-METER

25008-1191

Unavailable

25009

WASHER,5.2X16X1.2

25009-004

$3.65

25019

DAMPER,METER

25019-023

$4.29

41060

GEAR-METER SCREW

41060-1126

$42.93

54001

CABLE-SPEEDMETER

54001-1211

$35.42

92009

SCREW,2X6,BLACK

92009-1172

$2.61

92069

BULB,12V 1.7W,T10

92069-1059

$4.96

92069A

BULB,12V 1.7W,T6.5

92069-1070

$6.52

92077

KNOB,METER

92077-1073

$18.32

92087

BUSHING-METER GEAR

92087-1057

$24.32

92160

DAMPER,SPEEDOMETER

92160-1064

$26.90

99995

KIT.,SPEEDOMETER,MPH

99995-1340

Unavailable

311

NUT-HEX

311C0500

$0.43

410

WASHER PLAIN 5MM

410B0500

$0.46

410A

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31
