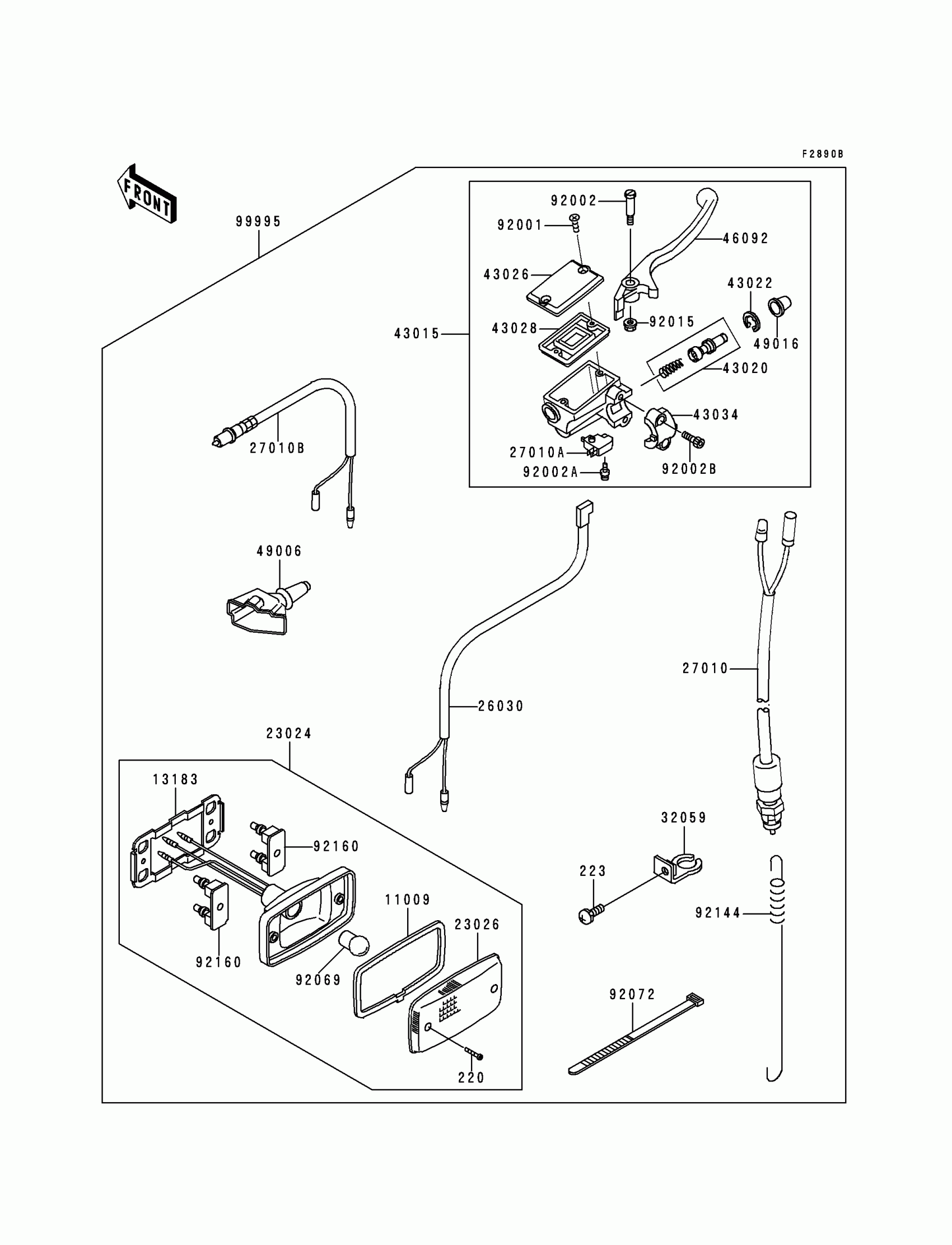

Kawasaki Bayou 400 4X4 Optional Parts(Brake Switch) Diagram

#

Description
Price

11009

GASKET,TAIL LAMP

11009-4004

$7.61

13183

PLATE,TAIL LAMP

13183-1261

$20.04

23024

LAMP-ASSY-TAIL

23024-1124

$129.98

23026

LENS,TAIL LAMP

23026-4003

$20.67

26030

HARNESS

26030-1058

$17.71

27010

SWITCH,BRAKE LAMP

27010-025

$29.24

27010A

SWITCH,BRAKE

27010-1170

$35.04

27010B

SWITCH,BRAKE

27010-1294

$35.18

32059

BRACKET-SWITCH,REAR BRAKE

32059-1114

Unavailable

43015

CYLINDER-ASSY-MASTER,FR

43015-1438

Unavailable

43020

PISTON-COMP-BRAKE,FR

43020-1056

$65.22

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-1059

$48.83

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$22.90

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1053

$35.87

46092

LEVER-GRIP,FRONT BRAKE

46092-1167

Unavailable

49006

BOOT

49006-1261

$22.51

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92001

SCREW,5MM,BLACK

92001-1727

$4.11

92002

BOLT,LEVER SET,BLACK

92002-1322

$11.71

92002A

BOLT,SCREW,4X12

92002-1323

$3.92

92002B

BOLT,SOCKET,6X20,BLACK

92002-1324

$7.65

220

SCREW PAN HEAD 4X16

220B0416

$1.66

223

SCREW-PAN-WS-CROS

223B0612

$1.00

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92069

BULB,12V 27/8W

92069-059

$8.12

92072

BAND,L=123

92072-030

$5.00

92144

SPRING,BRAKE LAMP SWITCH

92144-1191

$8.96

92160

DAMPER,TAIL LAMP

92160-1053

$8.86

99995

KIT.,BRAKE SWITCH

99995-1443

Unavailable
