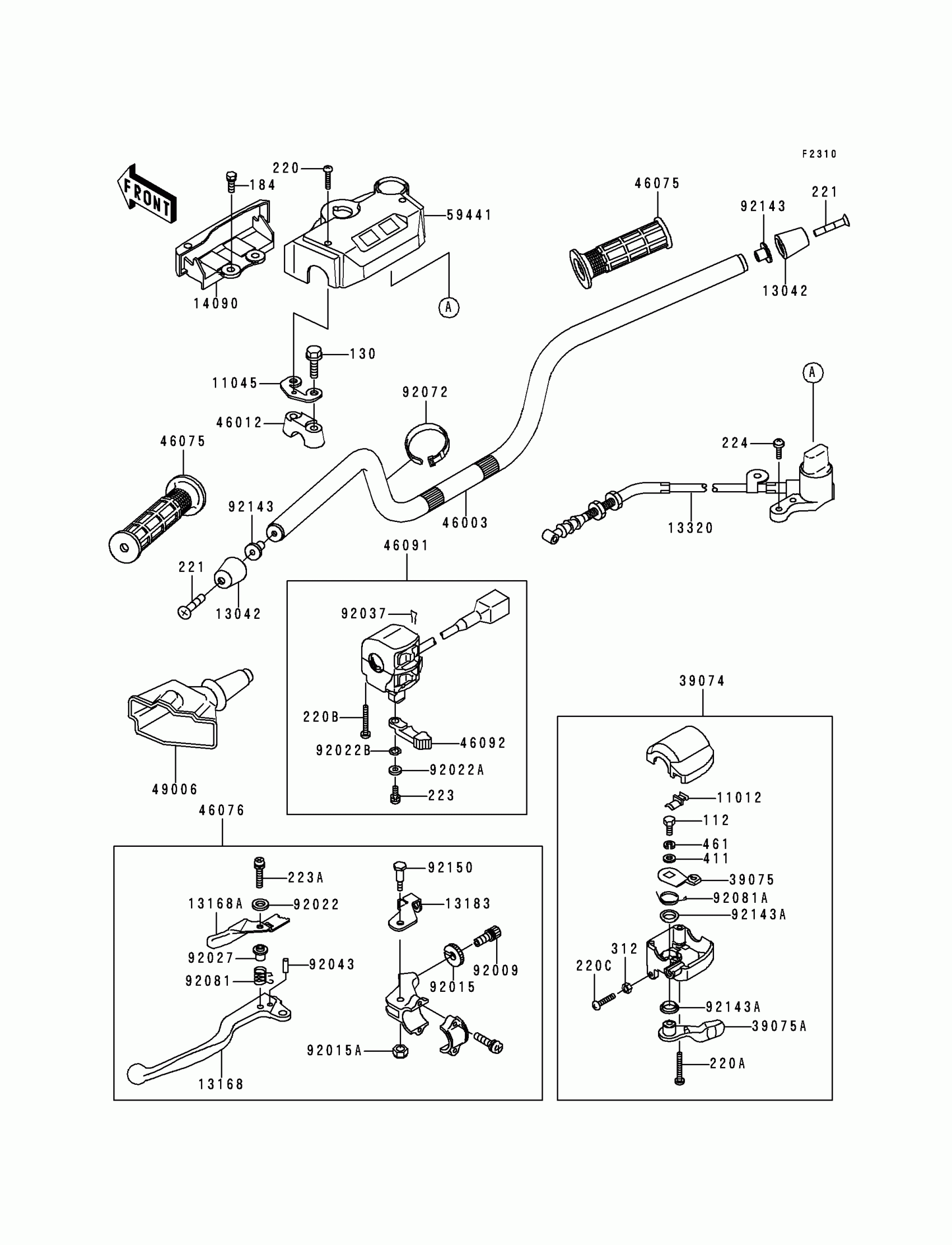

Kawasaki Bayou 400 4X4 Handlebar Diagram

#

Description
Price

11012

CAP

11012-1425

Unavailable

11045

BRACKET,HANDLE COVER,RH

11045-1925

$7.56

13042

WEIGHT,HANDLE

13042-1005

$29.48

13091

HOLDER,LEVER

13091-1703

Unavailable

13091A

HOLDER

13091-1704

Unavailable

13168

LEVER,LH

13168-1449

$38.58

13168A

LEVER,LOCK

13168-1450

$30.92

13183

PLATE,LOCK

13183-1609

Unavailable

13320

LEVER-ASSY,REVERSE

13320-1008

$137.23

14024

COVER,HANDLE

14024-1720

Unavailable

39074A

LEVER-ASSY-THROTTLE

39074-1055

$80.61

39075A

LEVER-THROTTLE,ARM

39075-1054

$11.03

39075B

LEVER-THROTTLE

39075-1059

Unavailable

46003

HANDLE

46003-1365

$49.80

46012

HOLDER-HANDLE

46012-1168

$15.44

46075

GRIP

46075-1056

$20.92

46076

LEVER-ASSY-GRIP,LH

46076-1178

$55.99

46091

HOUSING-ASSY-CONTROL,LH

46091-1462

$238.91

46092

LEVER-GRIP,CHOKE

46092-1149

$4.29

49006

BOOT,CLUTCH LEVER

49006-1057

$20.61

59441

COVER-HANDLE

59441-1077

Unavailable

92001

BOLT,FLANGED,8X58

92001-1005

$7.24

92009

SCREW,CABLE ADJUST,8MM

92009-1435

$12.40

92009A

SCREW

92009-1627

Unavailable

92015

NUT,CABLE ADJUST LOCK,8MM

92015-1596

$6.75

92015A

NUT

92015-1829

$3.12

92022

WASHER,4MM

92022-1647

$3.93

92022A

WASHER,5MM

92022-1837

$2.31

92022B

WASHER,WAVE,5MM

92022-1838

$2.31

92027

COLLAR,RETURN SPRING

92027-1336

$13.56

92037

CLAMP,CLIP

92037-1836

$4.68

92043

PIN,SPRING,3X16

92043-1268

$9.92

92072

BAND,L=149

92072-031

$3.81

92081

SPRING,LOCK RETURN

92081-1358

$4.80

92081A

SPRING

92081-1685

$80.61

92143

COLLAR,L=9.6

92143-1016

$4.67

92143A

COLLAR

92143-1138

$3.15

92150

BOLT

92150-1420

Unavailable

112

BOLT-UPSET

112D0614

$0.48

183

BOLT-UPSET-WS-SMALL

183J0814

Unavailable

220

SCREW-PAN-CROS,4X20

220C0420

Unavailable

220A

SCREW-PAN-CROS,5X30

220C0530

Unavailable

220B

SCREW-PAN-CROS,5X35

220C0535

$1.49

220C

SCREW-PAN HEAD,6X30

220C0630

$1.41

221

SCREW-CSK-CROS

221C0650

Unavailable

223

SCREW-PAN-WS-CROS,5X12

223C0512

$3.29

223A

SCREW-PAN-WS-CROS,4X20

223D0420

Unavailable

224

SCREW-PAN-WP-CROS,5X20

224B0520

Unavailable

312

NUT-HEX,6MM,BLACK

312C0600

Unavailable

411

WASHER-PLAIN,6MM

411E0600

$1.03

461

WASHER-SPRING

461L0600

$0.66
