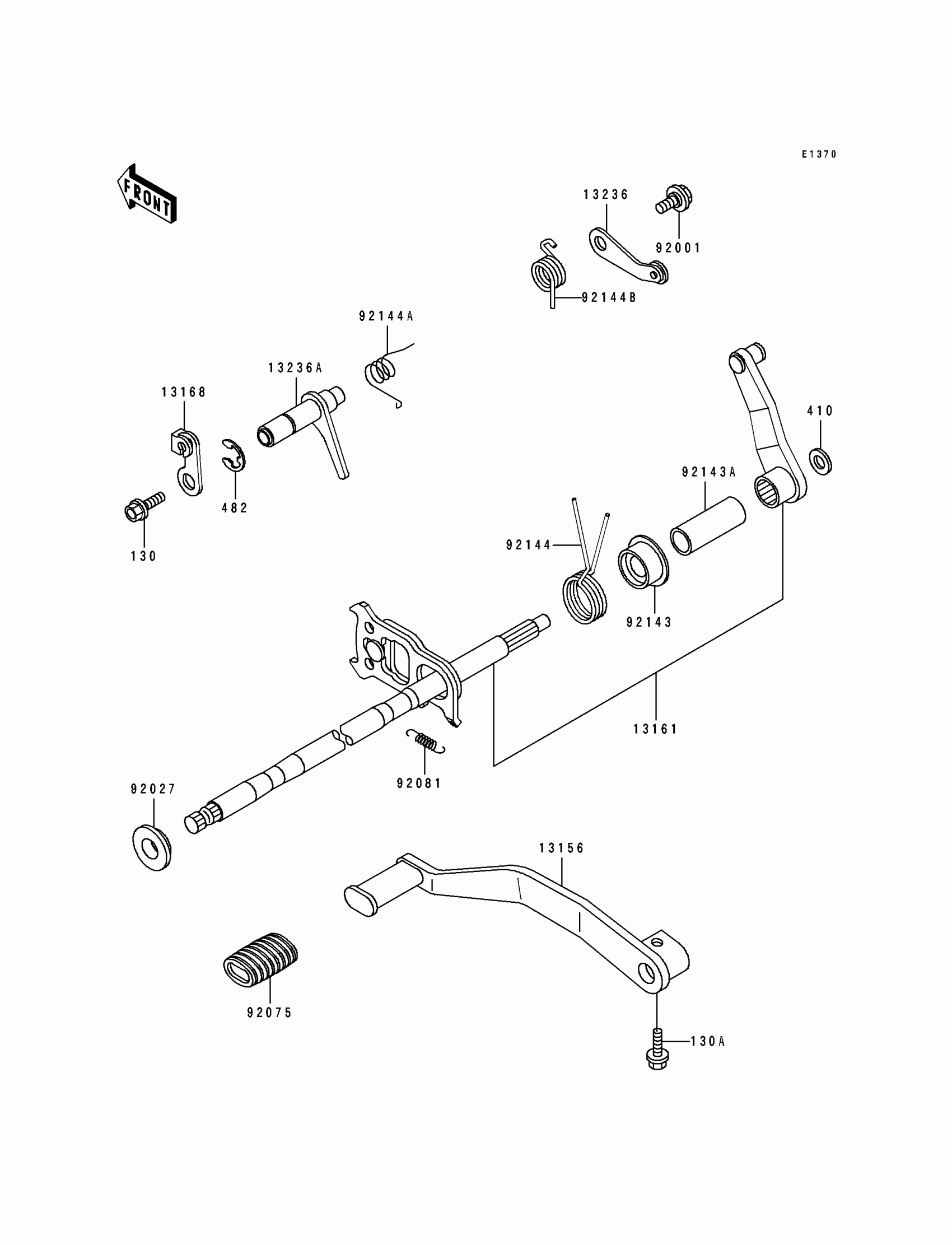

Kawasaki Bayou 400 4X4 Gear Change Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X10

130C0610

$3.84

130A

BOLT-FLANGED,6X20

130S0620

$6.86

410

WASHER PLAIN 8MM

410B0800

$0.93

482

CIRCLIP-TYPE-E,10MM

482L0100

$0.73

13156

LEVER-CHANGE,PEDAL

13156-1324

Unavailable

13161

LEVER-COMP-CHANGE SHAFT

13161-1239

Unavailable

13168

LEVER,REVERSE

13168-1476

Unavailable

13236

LEVER-COMP,NEUTRAL

13236-1231

Unavailable

13236A

LEVER-COMP,REVERSE

13236-1232

Unavailable

92001

BOLT,FLANGED,6X14

92001-1715

$10.65

92027

COLLAR,L=5.2

92027-1891

$12.48

92075

DAMPER

92075-1585

$9.45

92081

SPRING,CHANGE LEVER

92081-1753

$6.55

92143

COLLAR

92143-1321

$14.64

92143A

COLLAR,13.3X17.3X45.5

92143-1524

Unavailable

92144

SPRING,CHANGE SHAFT RETURN

92144-1359

$9.36

92144A

SPRING,REVERSE LEVER

92144-1598

Unavailable

92144B

SPRING,NEUTRAL LEVER

92144-1781

$6.76
