Description

Price

21083

ARM,FR,LH

21083-1074

$120.49

21083A

ARM,FR,RH

21083-1075

$120.49

39007

ARM-SUSP,FR,LH,UPP

39007-1209

Unavailable

39007A

ARM-SUSP,FR,RH,UPP

39007-1210

Unavailable

39007B

ARM-SUSP,FR,LH,LWR

39007-1211

$97.11

39007C

ARM-SUSP,FR,RH,LWR

39007-1212

$97.11

39186

KNUCKLE,FR,LH

39186-1098

$280.36

39186A

KNUCKLE,FR,RH

39186-1099

$280.36

59266

JOINT-BALL

59266-1075

$97.19

59266A

JOINT-BALL

59266-1077

$106.71

92002

BOLT,FLANGED,10X46

92002-1740

$7.69

92002A

BOLT,FLANGED,12X67

92002-1861

$11.16

92015

NUT,LOCK,10MM

92015-1597

$5.52

92015A

NUT,LOCK,FLANGED,10MM

92015-1717

$9.91

92015B

NUT,LOCK,10MM

92015-1808

$4.31

92022

WASHER,10.2X16X1

92022-1829

$4.31

92033

RING-SNAP,30MM

92033-1218

$8.12

92033A

RING-SNAP,55MM

92033-1274

$9.43

92045

BEARING-BALL,DAC3055C2RKCD3

92045-1222

$99.08

92049

SEAL-OIL

92049-1321

$17.27

92049A

SEAL-OIL,SDD38 55 8

92049-1322

$18.15

92092

BUSHING-RUBBER

92092-1065

$15.02

92150

BOLT,FLANGED,10X42

92150-1215

$10.62

92150A

BOLT,10X44

92150-1226

$11.51

320

NUT-CASTLE

320H1000

$7.88

550

PIN COTTER 2.0X15

550D2015

$1.04

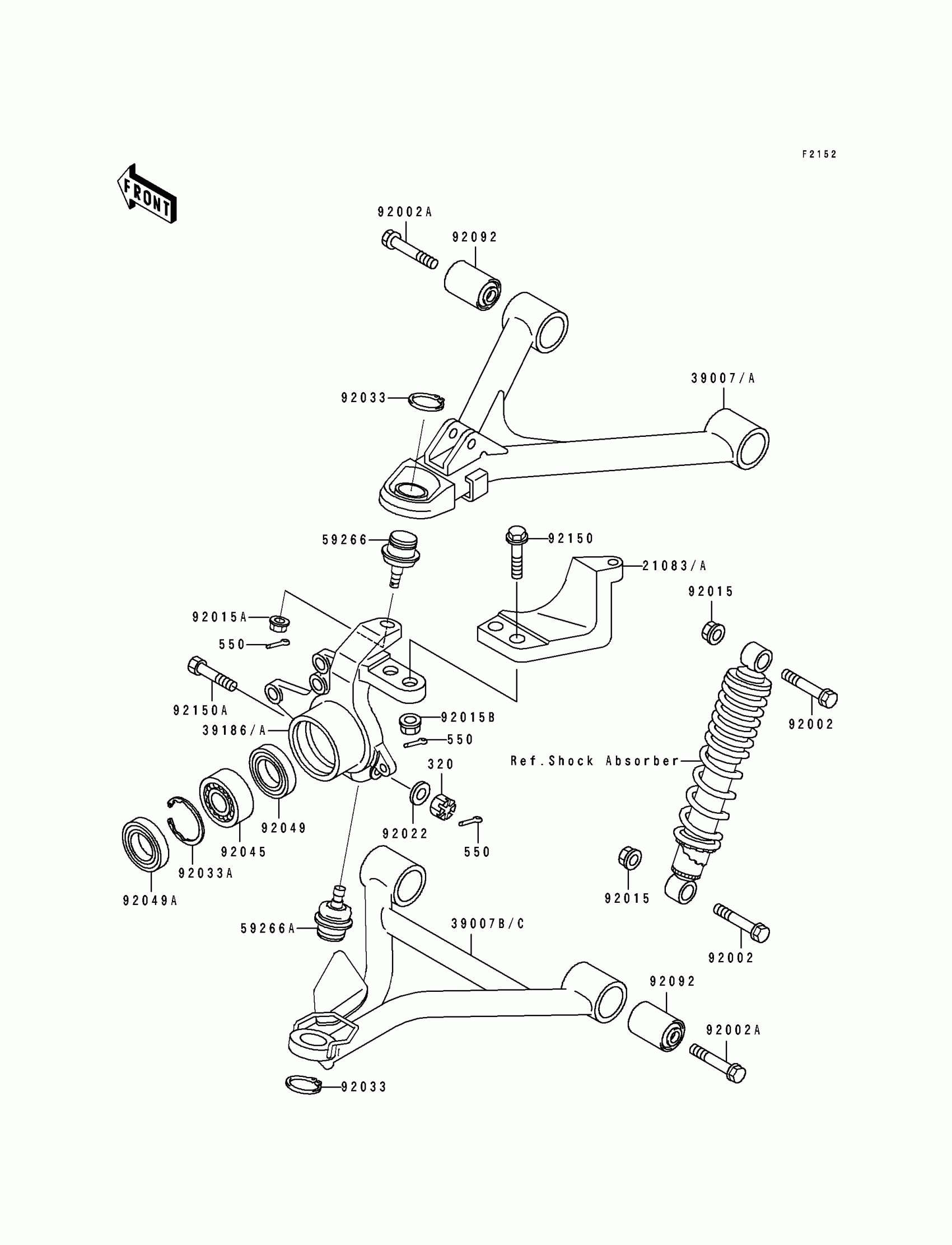

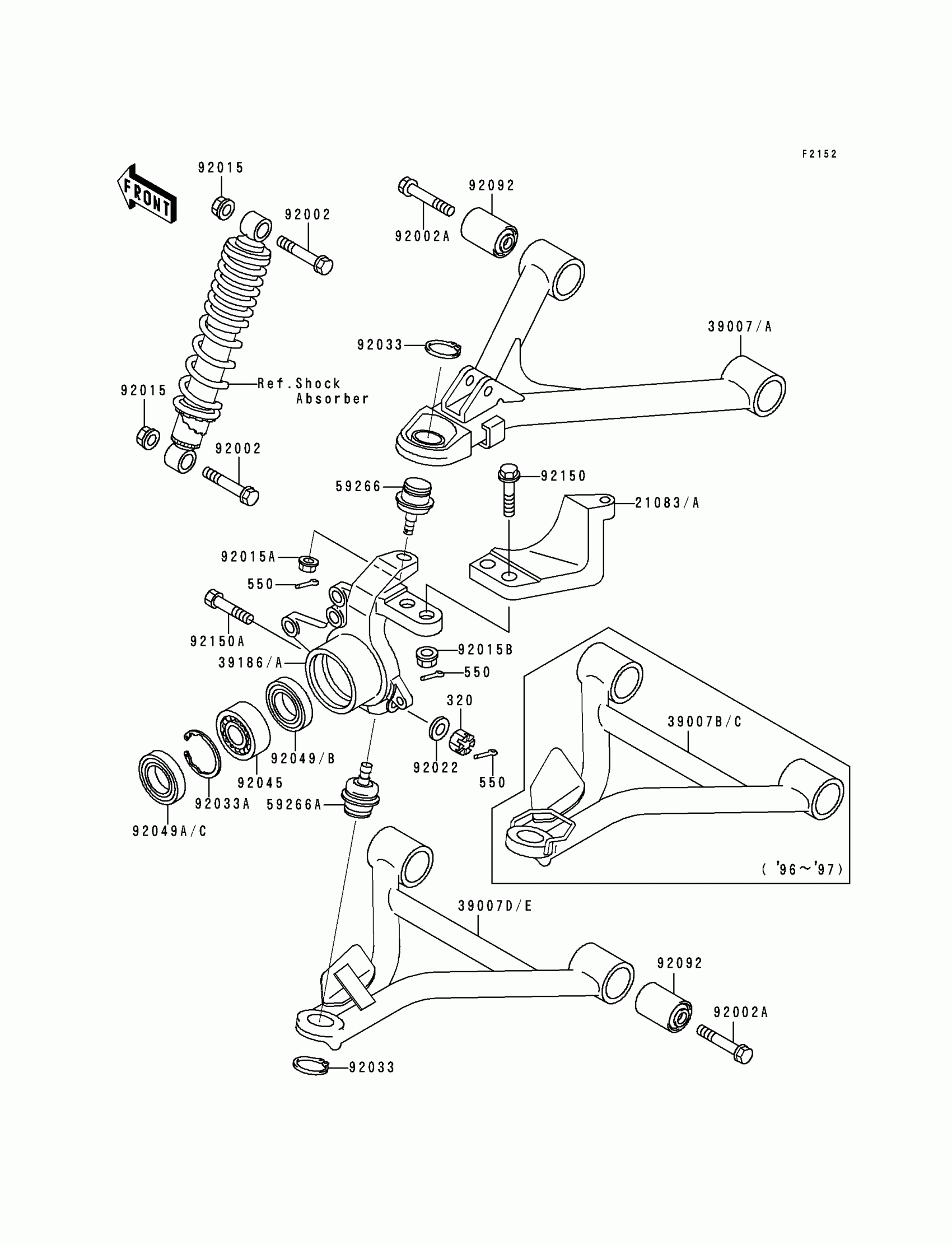

Kawasaki Bayou 400 4X4 Front Suspension Diagram

ARM,FR,LH

ARM,FR,RH

ARM-SUSP,FR,LH,UPP

ARM-SUSP,FR,RH,UPP

ARM-SUSP,FR,LH,LWR

ARM-SUSP,FR,RH,LWR

KNUCKLE,FR,LH

KNUCKLE,FR,RH

JOINT-BALL

JOINT-BALL

BOLT,FLANGED,10X46

BOLT,FLANGED,12X67

NUT,LOCK,10MM

NUT,LOCK,FLANGED,10MM

NUT,LOCK,10MM

WASHER,10.2X16X1

RING-SNAP,30MM

RING-SNAP,55MM

BEARING-BALL,DAC3055C2RKCD3

SEAL-OIL

SEAL-OIL,SDD38 55 8

BUSHING-RUBBER

BOLT,FLANGED,10X42

BOLT,10X44

NUT-CASTLE

PIN COTTER 2.0X15
