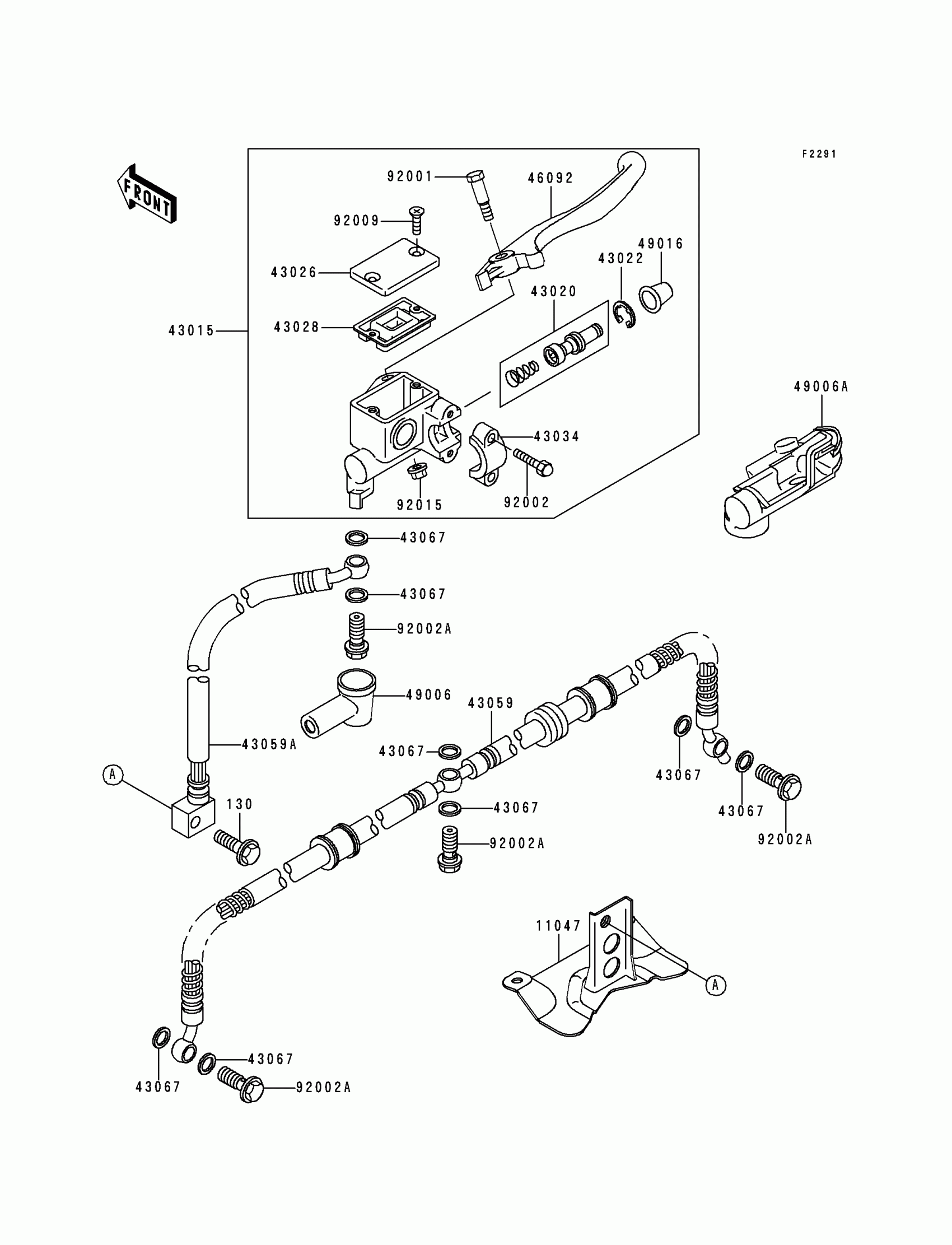

Kawasaki Bayou 400 4X4 Front Master Cylinder Diagram

Description

Price

11047

BRACKET,HOSE&RADIATOR COVER

11047-1583

Unavailable

43015

CYLINDER-ASSY-MASTER,FR

43015-1489

$483.84

43020

PISTON-COMP-BRAKE,FR

43020-1056

$65.22

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-1074

$25.59

43028

DIAPHRAGM

43028-1061

$16.18

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$19.45

43059

HOSE-BRAKE,FR,LWR

43059-1769

Unavailable

43059A

HOSE-BRAKE,FR,UPP

43059-1787

Unavailable

43067

WASHER,10.5X15X1.5

43067-001

$2.15

46092

LEVER-GRIP,FRONT BRAKE

46092-1136

$27.24

49006

BOOT,DUST

49006-1040

$11.49

49006A

BOOT,RH

49006-1198

Unavailable

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92001

BOLT,FRONT BRAKE LEVER

92001-1728

$14.23

92002

BOLT

92002-1860

$5.52

92002A

BOLT,OIL,L=23

92002-1888

$5.48

92009

SCREW,4MM

92009-1458

$3.21

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

130

BOLT-FLANGED,8X25

130B0825

$1.42
