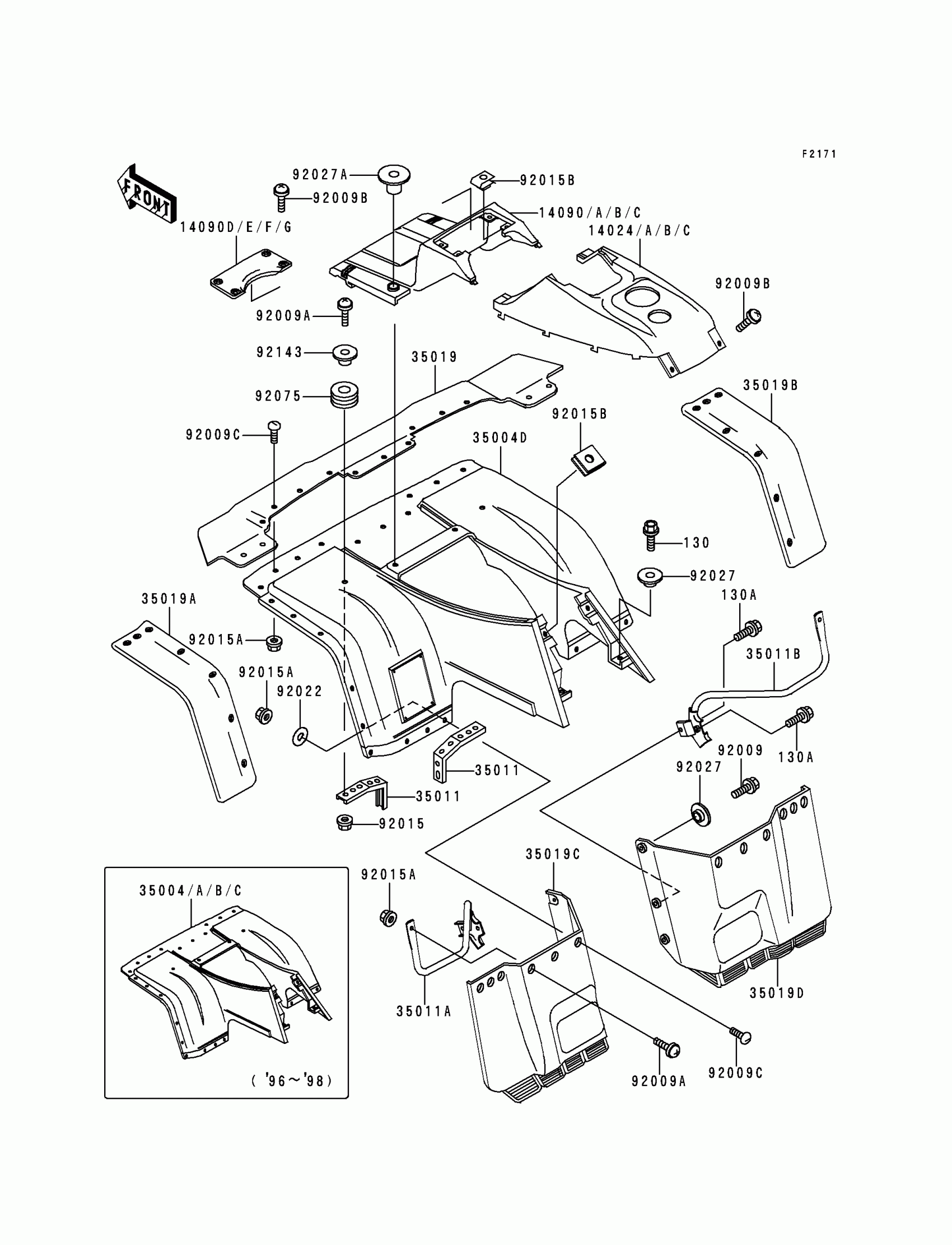

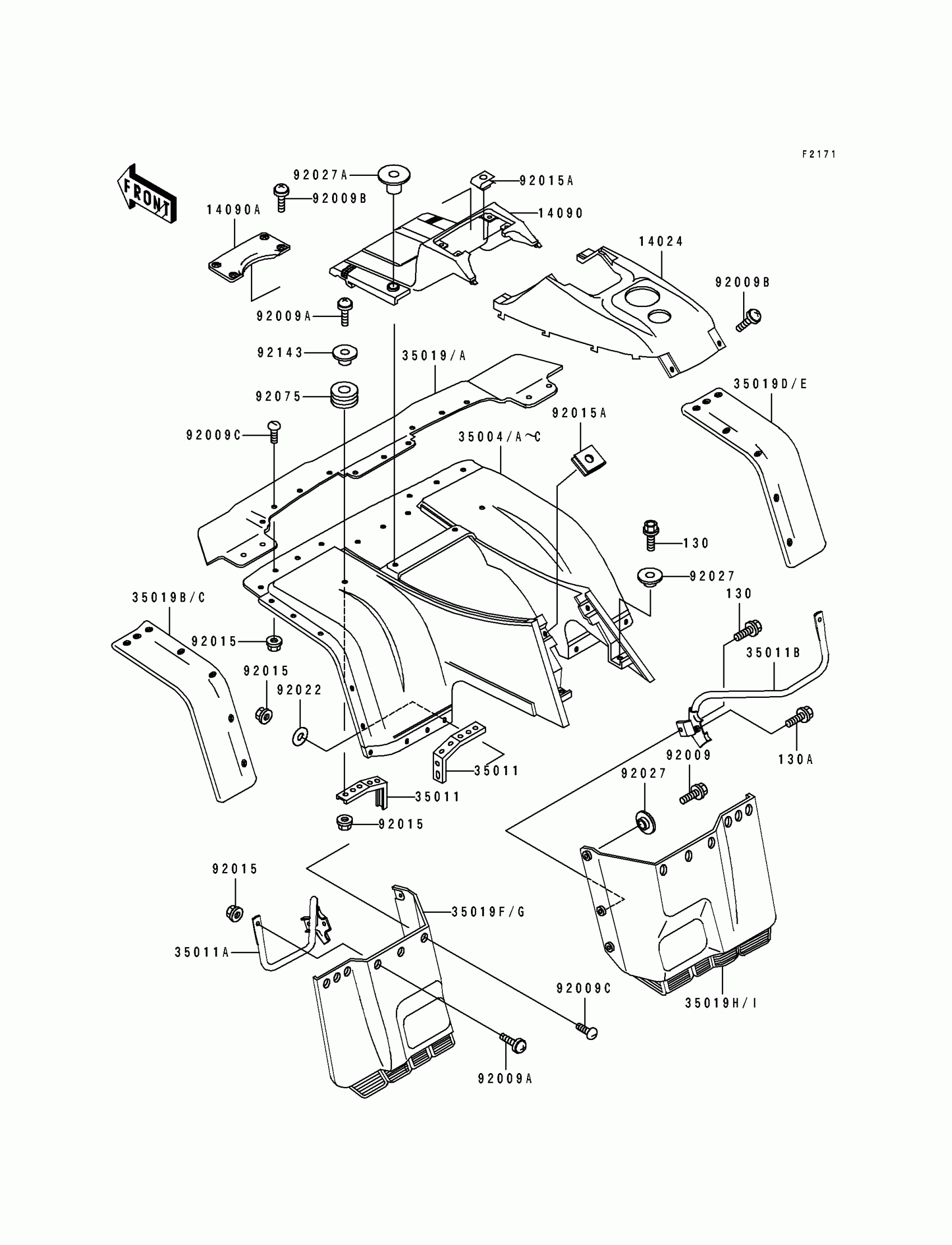

Kawasaki Bayou 400 4X4 Front Fender(s) Diagram
#
Description
Price
130
BOLT-FLANGED,6X16
130C0616
$0.63
130A
BOLT-FLANGED,6X18
130J0618
$1.69
14024B
COVER,FRONT FENDER,RR,H.GREEN
14024-1657-6A
$42.41
14090B
COVER,FRONT FENDER,FR,H.GREEN
14090-1143-6A
Unavailable
14090F
COVER,FRONT CAP,H.GREEN
14090-1156-6A
$34.10
35004D
FENDER-FRONT,H.GREEN
35004-1381-6A
$223.17
35011
STAY,FRONT FENDER,UPP
35011-1420
$24.51
35011A
STAY,FR FENDER,LH,LWR FLAP
35011-1600
$28.66
35011B
STAY,FR FENDER,RH,LWR FLAP
35011-1601
$28.66
35019
FLAP,FR,BLACK
35019-1291-6Z
$17.29
35019A
FLAP,FR,SIDE,LH,BLACK
35019-1292-6Z
$39.92
35019B
FLAP,FR,SIDE,RH,BLACK
35019-1293-6Z
$39.92
35019C
FLAP,FR,LWR,LH,BLACK
35019-1294-6Z
$71.92
35019D
FLAP,FR,LWR,RH,BLACK
35019-1295-6Z
$71.92
92009
SCREW,TAPPING,6X16
92009-1166
$5.52
92009A
SCREW,6X22,BLACK
92009-1256
$2.78
92009B
SCREW,6X14
92009-1288
$3.92
92009C
SCREW,6X16
92009-1621
Unavailable
92015
NUT,FLANGED,6MM,BLACK
92015-1233
$5.52
92015A
NUT,LOCK,FLANGED,6MM
92015-1675
$4.31
92015B
NUT,CLAMP,6MM
92015-1678
$5.52
92022
WASHER,6.5X16X1.0
92022-1093
$2.08
92027
COLLAR
92027-122
$8.60
92027A
COLLAR
92027-1929
$10.98
92075
DAMPER,CASE
92075-222
$7.34
92143
COLLAR,L=9.6
92143-1016
$6.22
