Description

Price

11060

GASKET,GEAR CASE

11060-1204

$36.64

13048

CAM-DAMPER

13048-1078

$42.68

13091

HOLDER,GEAR CASE

13091-1764

Unavailable

13107A

SHAFT,FRONT BEVEL,23T

13107-1323

Unavailable

13107B

SHAFT,FRONT BEVEL

13107-1332

Unavailable

14055

CASE-GEAR,FRONT BEVEL

14055-1122

$219.15

14090

COVER

14090-1135

Unavailable

39031

CAP-END

39031-1061

$8.68

39031A

CAP-END

39031-1062

Unavailable

39135

SPROCKET-DRIVEN,23T

39135-1054

Unavailable

41046

HOUSING-BEARING

41046-1094

$171.09

41046A

HOUSING-BEARING

41046-1095

Unavailable

49022

GEAR-BEVEL

49022-1126

Unavailable

49022A

GEAR-BEVEL

49022-1127

Unavailable

92009

SCREW-SET-SOCKET,75X10

92009-1667

$88.39

92015

NUT,FLANGED,14MM

92015-1341

$21.74

92015A

NUT,8MM

92015-1402

$4.69

92015B

NUT,16MM

92015-1581

$19.64

92015C

NUT,30MM

92015-1858

$32.95

92022

WASHER,20.3X36X1.5

92022-1489

$6.22

92022A

WASHER,14.2X28X2.6

92022-1688

$7.62

92025

SHIM,25.3X36X0.15

92025-1688

Unavailable

92025A

SHIM,25.3X36X0.50

92025-1689

Unavailable

92025B

SHIM,25.3X36X0.60

92025-1690

Unavailable

92025C

SHIM,25.3X36X0.70

92025-1691

Unavailable

92025D

SHIM,25.3X36X0.80

92025-1692

Unavailable

92025E

SHIM,25.3X36X0.90

92025-1693

Unavailable

92025F

SHIM,25.3X36X1.00

92025-1694

Unavailable

92025G

SHIM,25.3X36X1.10

92025-1695

Unavailable

92025H

SHIM,25.3X36X1.20

92025-1696

Unavailable

92028

BUSHING

92028-1347

$8.51

92043

PIN,DOWEL,10X14

92043-1037

$0.74

92045

BEARING-BALL,6206CM

92045-1155

$27.95

92045A

BEARING-BALL,6306SH2

92045-1190

$40.80

92046

BEARING-NEEDLE,NK20/20RE

92046-1211

Unavailable

92046A

BEARING-NEEDLE,NK24/20RE

92046-1212

Unavailable

92049

SEAL-OIL,AE1252E0

92049-1395

$11.07

92049A

SEAL-OIL,AE1265E0

92049-1400

$11.07

92050

SEAL-OIL

92050-082

$8.58

92055

RING-O,19.5X1.5

92055-055

$4.31

92055A

"O" RING

92055-081

$17.91

92055B

RING-O,79.5MM

92055-1230

$8.12

92055C

RING-O,43.7X1.9

92055-1401

$13.75

92057

CHAIN,BEVEL,63HV303-42AS

92057-1351

Unavailable

92071

GROMMET

92071-1203

$5.95

92143

COLLAR,24.2X33X12

92143-1657

Unavailable

92144

SPRING,BEVEL

92144-1599

$25.37

92150

BOLT,8X35

92150-1585

Unavailable

92150A

BOLT,8X60

92150-1586

Unavailable

92150B

BOLT,8X75

92150-1587

Unavailable

92150C

BOLT,8X90

92150-1588

Unavailable

92150D

BOLT,6X20

92150-1597

$2.49

92180

SHIM,T=1.00

92180-1126

Unavailable

92180A

SHIM,T=0.10

92180-1127

Unavailable

92180B

SHIM,T=0.15

92180-1128

Unavailable

92180C

SHIM,T=0.50

92180-1129

Unavailable

92180D

SHIM,T=0.80

92180-1130

Unavailable

92180E

SHIM,T=1.20

92180-1131

Unavailable

92200

WASHER,16.3X31X3.2

92200-1104

$6.16

92200A

WASHER,24.2X40X2.0

92200-1118

Unavailable

172

BOLT-STUD,8X25

172G0825

$3.70

220

SCREW-PAN-CROS, 6X20

220C0620

$1.47

480

CIRCLIP-TYPE-C,25MM

480J2500

$2.03

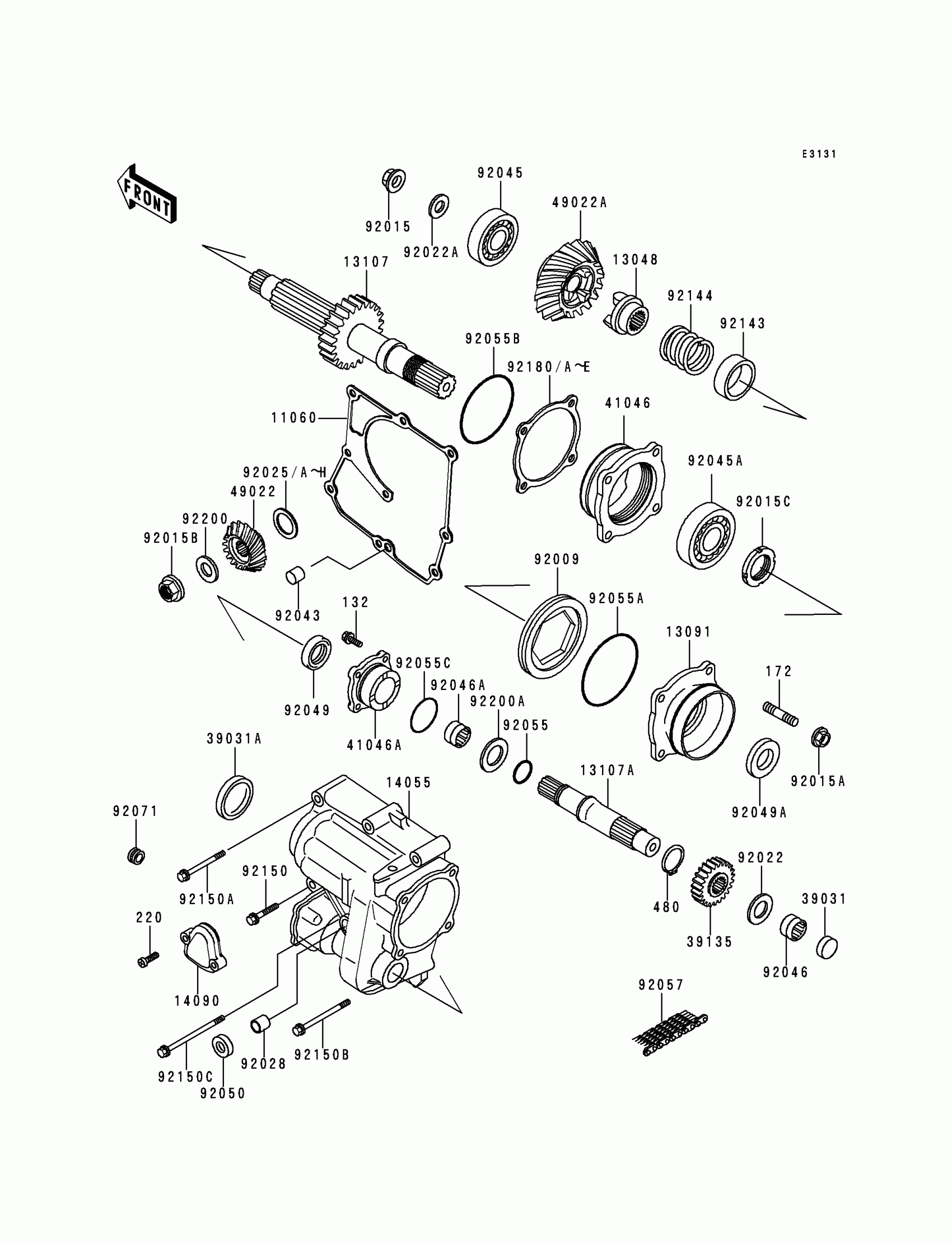

Kawasaki Bayou 400 4X4 Front Bevel Gear Diagram

GASKET,GEAR CASE

CAM-DAMPER

HOLDER,GEAR CASE

SHAFT,FRONT BEVEL,23T

SHAFT,FRONT BEVEL

CASE-GEAR,FRONT BEVEL

COVER

CAP-END

CAP-END

SPROCKET-DRIVEN,23T

HOUSING-BEARING

HOUSING-BEARING

GEAR-BEVEL

GEAR-BEVEL

SCREW-SET-SOCKET,75X10

NUT,FLANGED,14MM

NUT,8MM

NUT,16MM

NUT,30MM

WASHER,20.3X36X1.5

WASHER,14.2X28X2.6

SHIM,25.3X36X0.15

SHIM,25.3X36X0.50

SHIM,25.3X36X0.60

SHIM,25.3X36X0.70

SHIM,25.3X36X0.80

SHIM,25.3X36X0.90

SHIM,25.3X36X1.00

SHIM,25.3X36X1.10

SHIM,25.3X36X1.20

BUSHING

PIN,DOWEL,10X14

BEARING-BALL,6206CM

BEARING-BALL,6306SH2

BEARING-NEEDLE,NK20/20RE

BEARING-NEEDLE,NK24/20RE

SEAL-OIL,AE1252E0

SEAL-OIL,AE1265E0

SEAL-OIL

RING-O,19.5X1.5

"O" RING

RING-O,79.5MM

RING-O,43.7X1.9

CHAIN,BEVEL,63HV303-42AS

GROMMET

COLLAR,24.2X33X12

SPRING,BEVEL

BOLT,8X35

BOLT,8X60

BOLT,8X75

BOLT,8X90

BOLT,6X20

SHIM,T=1.00

SHIM,T=0.10

SHIM,T=0.15

SHIM,T=0.50

SHIM,T=0.80

SHIM,T=1.20

WASHER,16.3X31X3.2

WASHER,24.2X40X2.0

BOLT-STUD,8X25

SCREW-PAN-CROS, 6X20

CIRCLIP-TYPE-C,25MM
