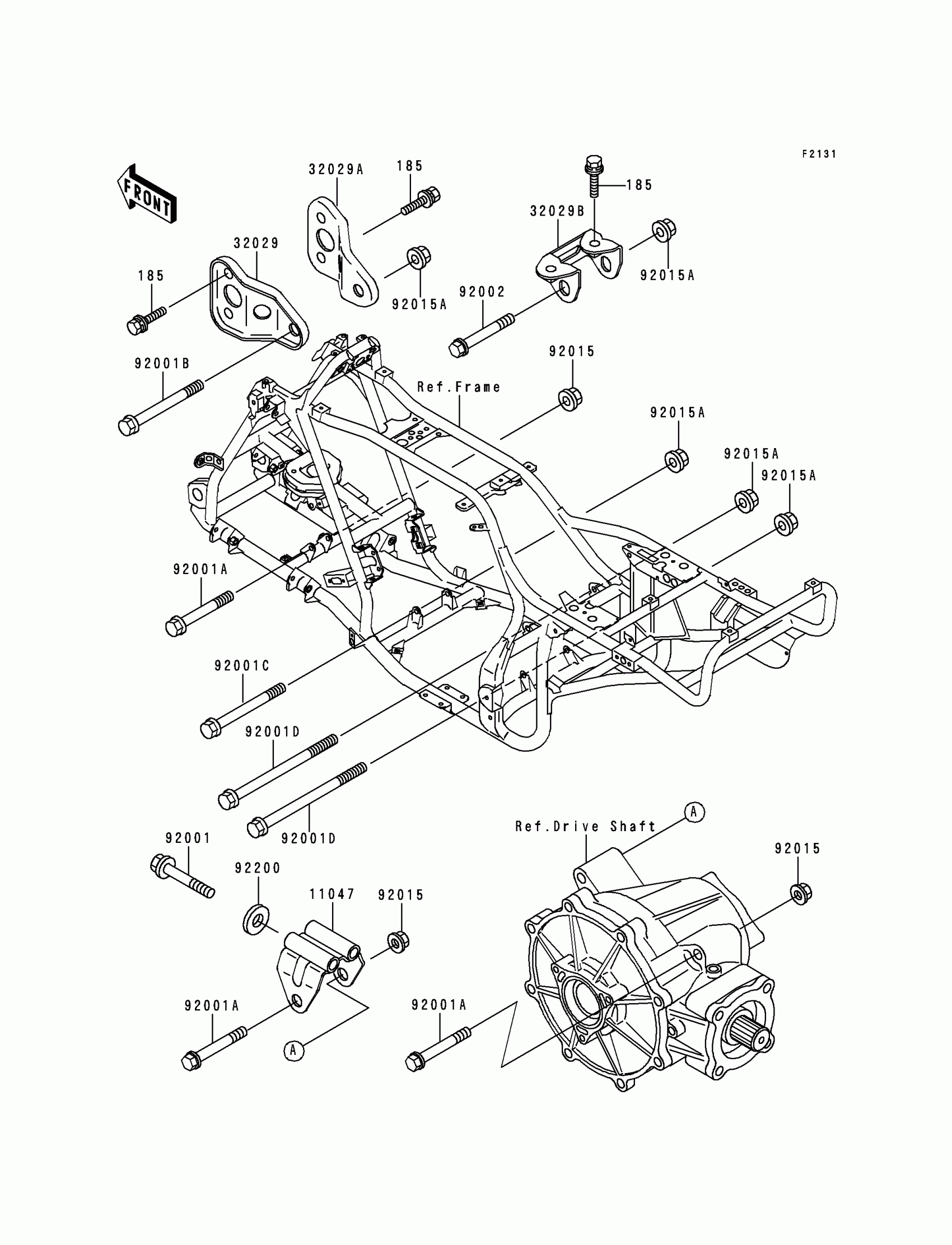

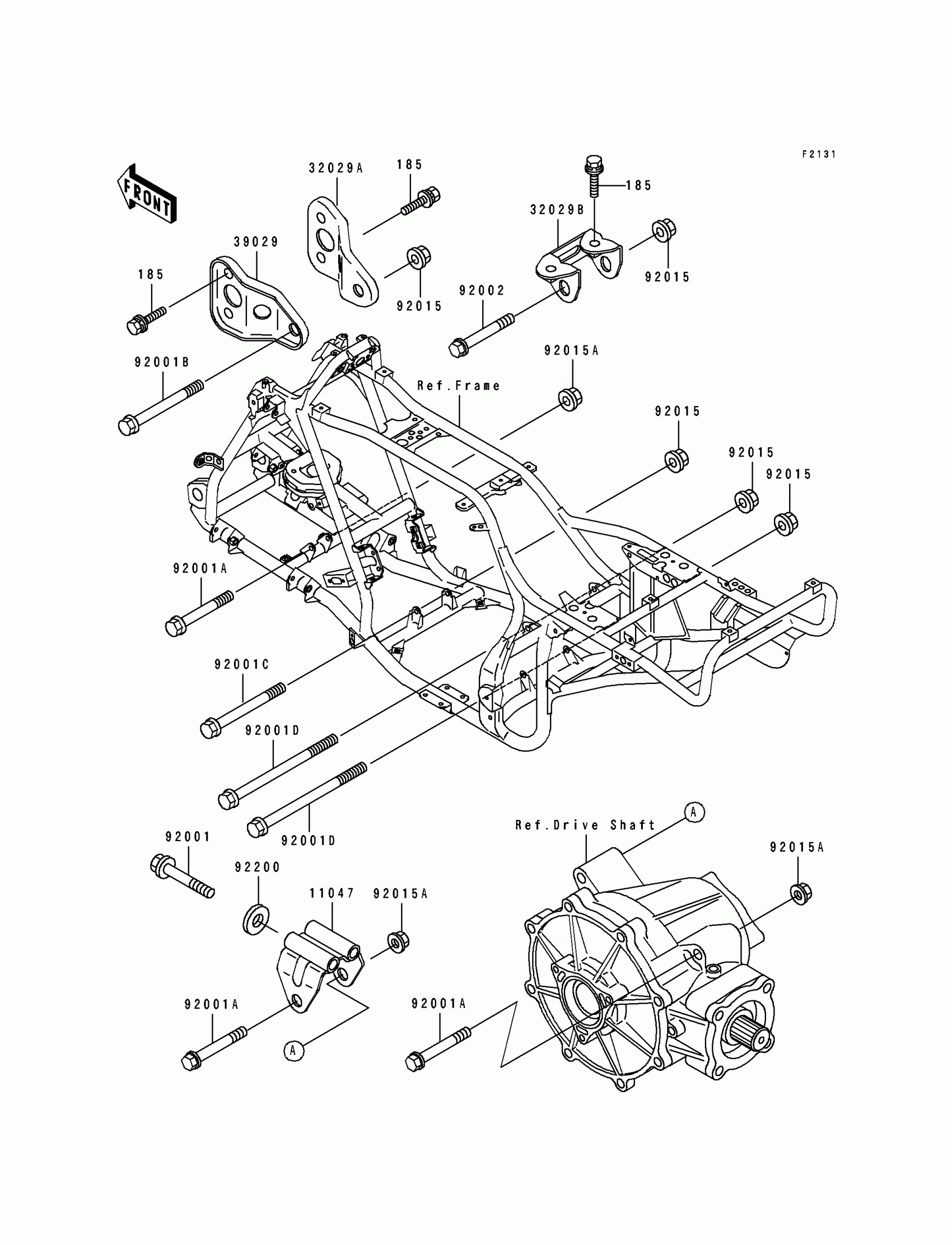

Kawasaki Bayou 400 4X4 Frame Fittings Diagram

Description

Price

185

BOLT-UPSET-WSP-SMALL

185J0816

$3.13

11047

BRACKET,DIFF FITTING

11047-1571

Unavailable

32029

BRACKET-ENGINE,FR,UPP,LH

32029-1806

Unavailable

32029A

BRACKET-ENGINE,FR,UPP,RH

32029-1807

Unavailable

32029B

BRACKET-ENGINE,HEAD

32029-1808

Unavailable

92001

BOLT,8X65

92001-1375

Unavailable

92001A

BOLT,FLANGED,10X70

92001-1618

$10.37

92001B

BOLT,FLANGED,10X125

92001-1720

$11.39

92001C

BOLT,FLANGED,10X115,BLACK

92001-1780

$14.36

92001D

BOLT,FLANGED,10X160,BLACK

92001-1953

$20.51

92002

BOLT,FLANGED,10X61

92002-1738

$7.84

92015

NUT,FLANGED,10MM

92015-1335

$2.61

92015A

NUT,FLANGED,10MM

92015-1727

$4.31

92200

WASHER,8.5X20X2.3

92200-1055

$3.94
