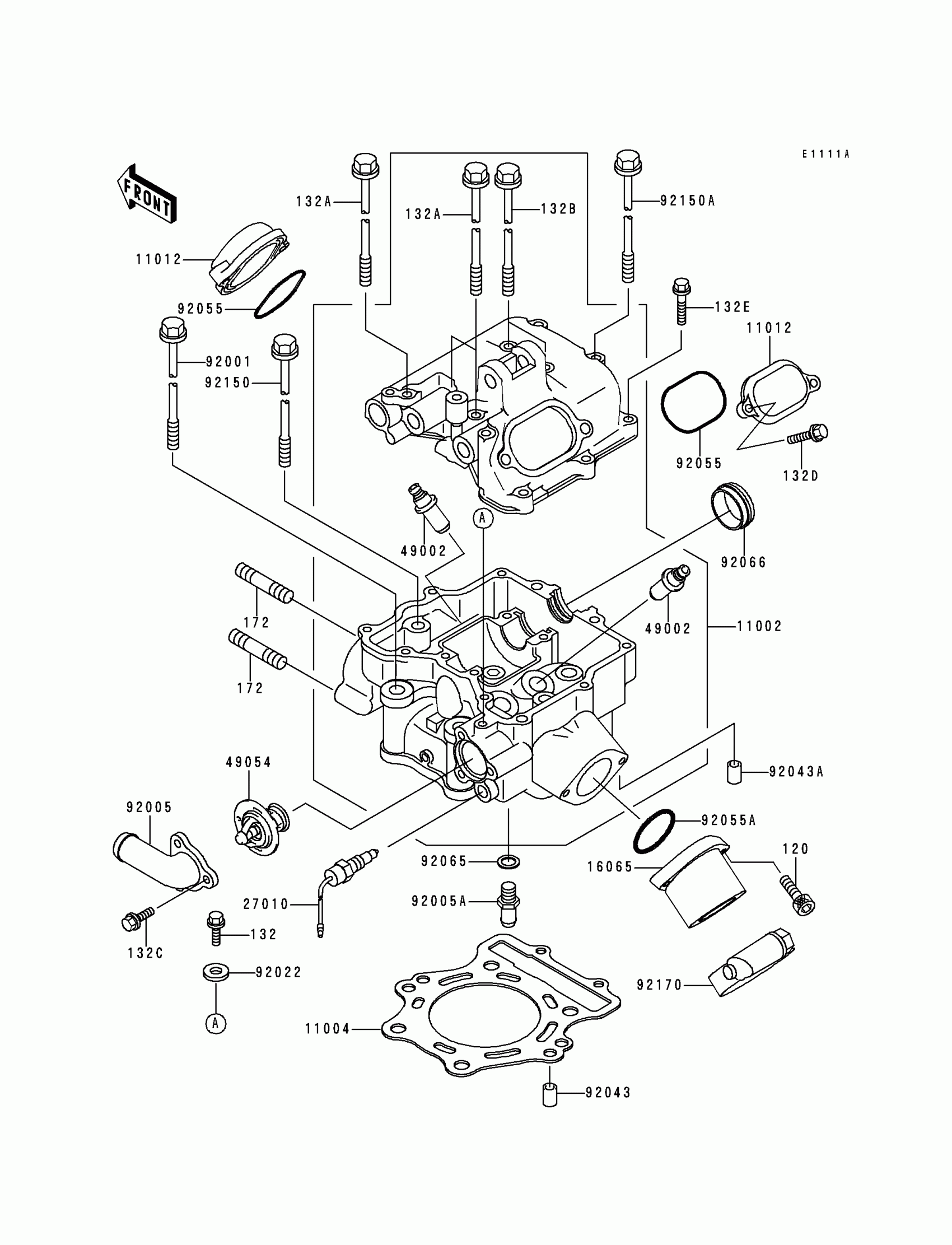

Kawasaki Bayou 400 4X4 Cylinder Head(LF400AE532918-) Diagram

Description

Price

120

BOLT-SOCKET,6X20

120S0620

Unavailable

132

BOLT-FLANGED-SMALL,6X10

132G0610

Unavailable

132A

BOLT-FLANGED-SMALL,6X55

132G0655

Unavailable

132B

BOLT-FLANGED-SMALL,6X65

132G0665

Unavailable

132C

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

132D

BOLT-FLANGED-SMALL,6X20

132V0620

Unavailable

132E

BOLT-FLANGED-SMALL,6X30

132V0630

Unavailable

172

BOLT-STUD,8X22

172G0822

Unavailable

11002

HEAD-ASSY-CYLINDER

11002-1342

Unavailable

11004

GASKET-HEAD

11004-1233

$47.53

11012

CAP,ROCKER CASE

11012-1793

$32.12

16065

HOLDER-CARBURETOR

16065-1296

Unavailable

27010

SWITCH,SENSOR WATER

27010-1346

$107.46

49002

GUIDE-VALVE

49002-1052

Unavailable

49054

THERMOSTAT

49054-1053

$48.15

92001

BOLT,10X185

92001-1994

$21.32

92005

FITTING

92005-1121

$36.81

92005A

FITTING

92005-1344

$13.68

92022

WASHER,6.2X11X1

92022-304

$2.76

92043

PIN,6.2X8X14

92043-1263

$0.46

92043A

PIN,DOWEL,8X10

92043-1302

$0.84

92055

RING-O,55MM

92055-1120

$4.18

92055A

RING-O,39.5X2.4

92055-1342

Unavailable

92065

GASKET,10.5X16X1

92065-058

$3.03

92066

PLUG

92066-1289

$10.91

92150

BOLT,8X83

92150-1531

$11.34

92150A

BOLT,6X135

92150-1552

$7.25

92170

CLAMP

92170-1677

Unavailable
