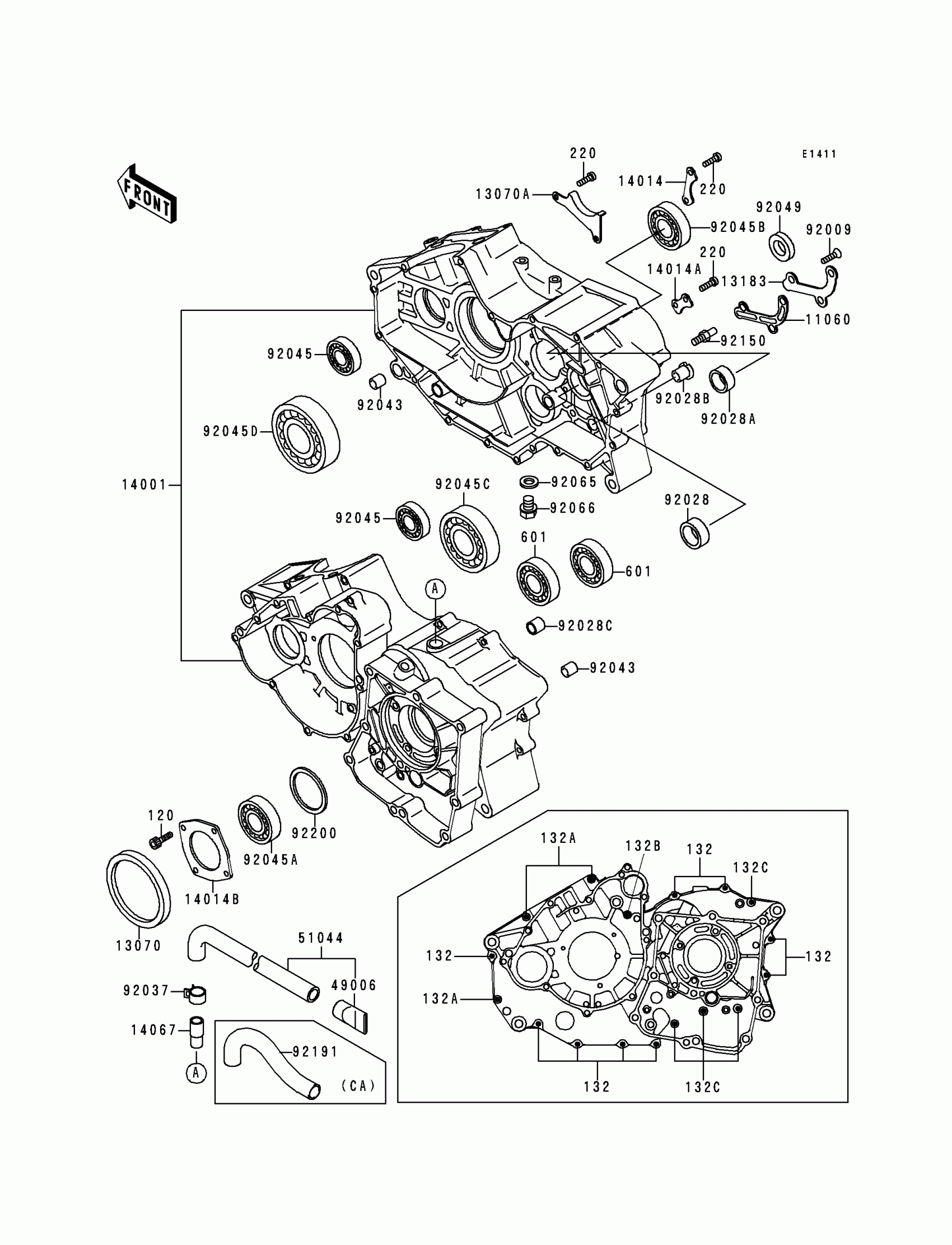

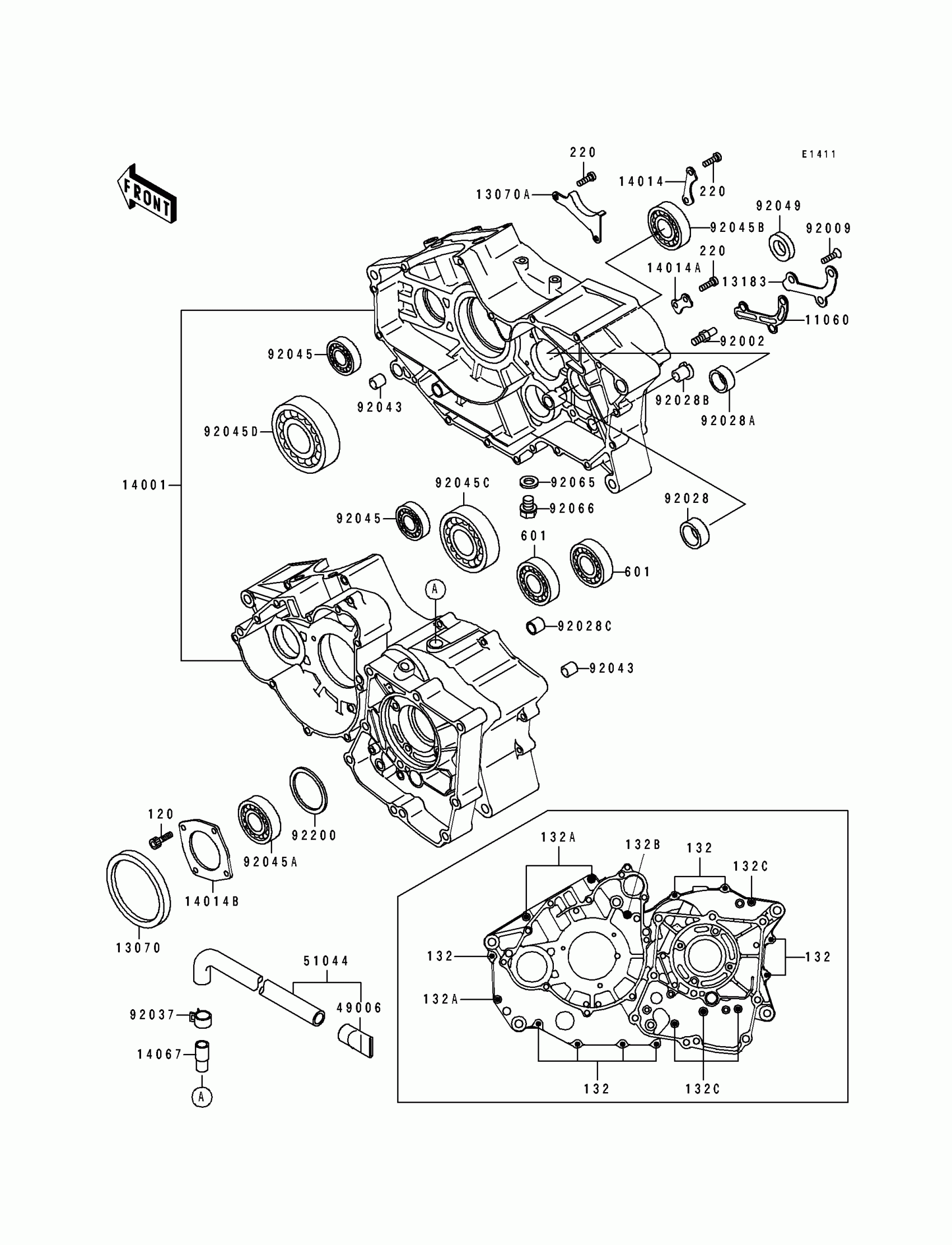

Kawasaki Bayou 400 4X4 Crankcase Diagram
#
120
BOLT-SOCKET,6X16
120P0616
$2.33
132
BOLT-FLANGED-SMALL,6X35
132Y0635
$3.84
132A
BOLT-FLANGED-SMALL
132Y0675
$5.55
132B
BOLT-FLANGED-SMALL
132Y0685
$5.82
132C
BOLT-FLANGED-SMALL
132Y0695
$6.09
220
SCREW-PAN-CROS,6X14
220B0614
$1.48
601
BEARING-BALL
601A6203Z
$20.06
11060
GASKET,OIL LINE
11060-1710
Unavailable
13070
GUIDE
13070-1254
Unavailable
13070A
GUIDE,CHAIN
13070-1255
$6.46
13183
PLATE,OIL LINE
13183-1725
Unavailable
14014
PLATE-POSITION
14014-1069
$6.16
14014A
PLATE-POSITION
14014-1107
Unavailable
14014B
PLATE-POSITION
14014-1108
$23.81
14067
FITTING,BREATHER
14067-006
$21.09
92009
SCREW,6X14
92009-1349
$4.18
92028
BUSHING,26X35X14
92028-131
$38.06
92028A
BUSHING,23X30X13
92028-132
$38.06
92028B
BUSHING
92028-1386
$17.40
92028C
BUSHING,14X16X15
92028-1505
$9.36
92037
CLAMP
92037-1860
Unavailable
92043
PIN,11.5X14X14
92043-1279
$5.00
92045
BEARING-BALL,TMB304CCM
92045-1142
$40.43
92045A
BEARING-BALL,6305RHR4SH2
92045-1254
$46.77
92045B
BEARING-BALL,63/22
92045-1255
Unavailable
92045C
BEARING-BALL,6307SH2-9C4
92045-1257
$67.02
92045D
BEARING-BALL,6208RSH2-9C3
92045-1258
$67.02
92049
SEAL-OIL,AC1013A1
92049-1393
$8.95
92065
GASKET,12X22X2
92065-097
$0.74
92066
PLUG,OIL DRAIN,12X15
92066-1174
$6.16
92150
BOLT,RETURN SPRING
92150-1467
$7.45
92200
WASHER,50X60.5X0.5
92200-1106
$9.92
14001
SET-CRANKCASE
14001-5344
Unavailable
49006
BOOT
49006-1199
$8.64
51044
TUBE-ASSY
51044-1118
Unavailable
92191
TUBE,BREATHER
92191-1176
Unavailable
