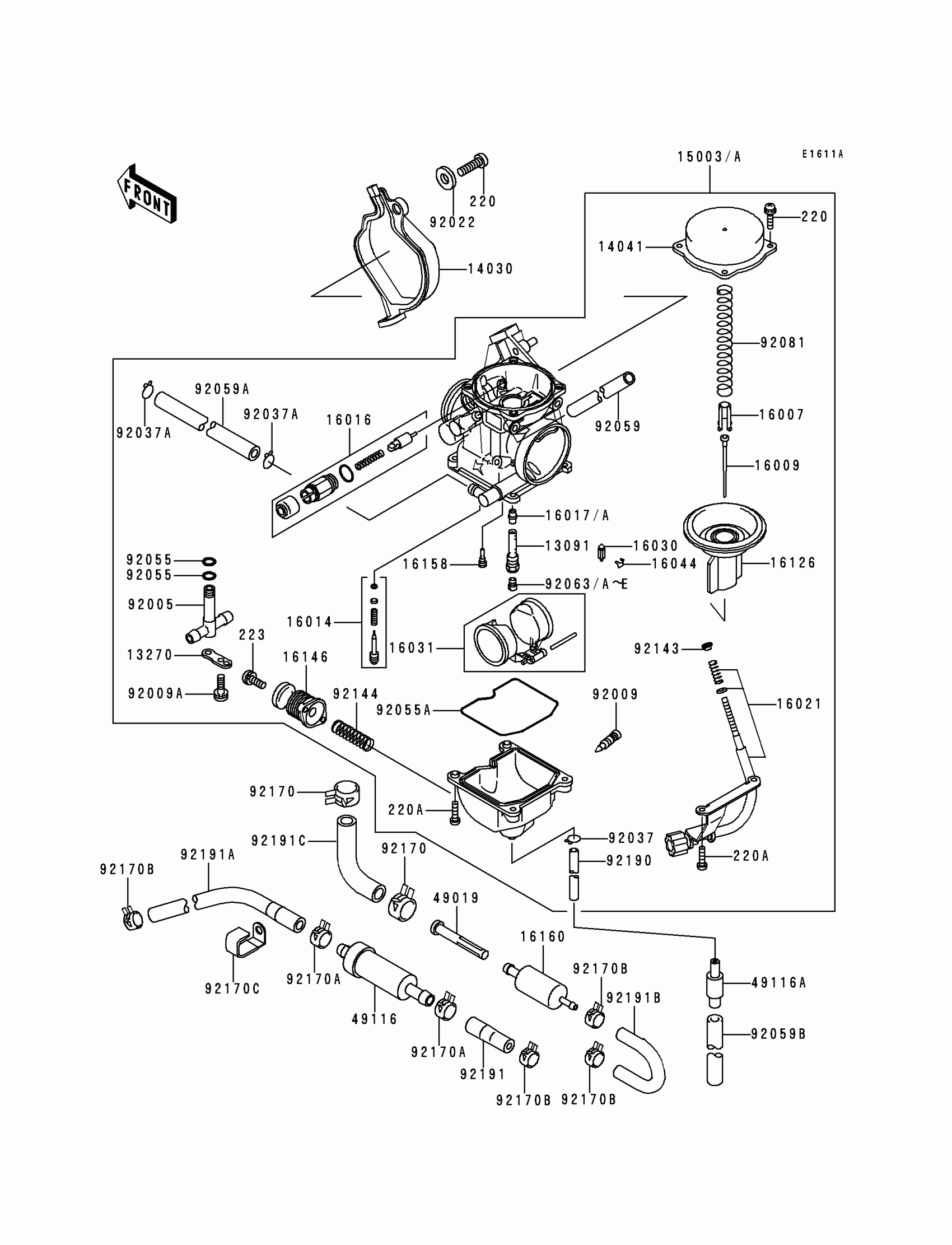

Kawasaki Bayou 400 4X4 Carburetor(LF400AE532918-) Diagram

#

Description
Price

13091

HOLDER,NEEDLE JET

13091-1259

$34.01

13270

PLATE,FITTING STAY

13270-1063

$29.64

14030

COVER-CARBURETOR

14030-1054

$11.28

14041

TOP-CHAMBER,MIXING,INSIDE

14041-1077

$97.80

16007

SEAT-SPRING,THROTTLE VALVE

16007-1120

$21.24

16009

NEEDLE-JET,N2LF

16009-1870

Unavailable

16014

SCREW-PILOT AIR

16014-1081

$19.94

16016

PLUNGER,STARTER

16016-1101

$51.56

16021

SCREW-THROTTLE STOP

16021-1196

$133.04

16030

VALVE-FLOAT

16030-1007

$42.48

16031

FLOAT

16031-1077

$47.31

16044

CLAMP,FLOAT VALVE

16044-007

$6.04

16126

VALVE,VACUUM

16126-1199

$204.57

16146

COVER-ASSY,PUMP

16146-1129

$31.19

16158

JET-SLOW,#42

16158-1053

$25.00

16160

BODY,FILTER

16160-1151

$7.18

49019

FILTER-WATER

49019-1068

$3.90

49116

VALVE-ASSY

49116-1081

$100.54

49116A

VALVE-ASSY

49116-1126

$16.82

92005

FITTING

92005-1235

$11.37

92009

SCREW,DRAIN,M6X0.75

92009-1551

$7.54

92009A

SCREW

92009-1713

$3.49

92022

WASHER,5.2X13X1

92022-1380

$3.29

92037

CLAMP,TUBE

92037-1201

$3.51

92037A

CLAMP,TUBE

92037-1531

$4.18

92055

RING-O,4.5X1.5

92055-1427

$5.54

92055A

RING-O,FLOAT CHAMBER

92055-1518

$19.83

92059

TUBE,6.5X11.5X150

92059-1463

$35.72

92059A

TUBE,6.5X9.5X430

92059-1727

$31.15

92059B

TUBE,7X10X100

92059-1736

$3.40

92063

JET-MAIN,#85

92063-1023

Unavailable

220

SCREW PAN HEAD 4X8

220B0408

Unavailable

220A

SCREW-PAN-CROS,4X14

220D0414

$3.51

223

SCREW-PAN-WS-CROS

223C0412

$3.29

92063A

JET-MAIN,#125

92063-1069

$11.23

92063B

JET-MAIN,#118

92063-1071

$14.02

92063C

JET-MAIN,#120

92063-1072

$14.02

92063D

JET-MAIN,#122

92063-1073

$14.02

92063E

JET-MAIN,#115

92063-1118

$14.02

92081

SPRING,VACUUM VALVE

92081-1775

$24.85

92143

COLLAR

92143-1589

$3.14

92144

SPRING,PUMP

92144-1672

$10.27

92170

CLAMP

92170-1278

$10.15

92170A

CLAMP

92170-1492

$3.81

92170B

CLAMP

92170-1493

$3.81

92170C

CLAMP

92170-1863

$24.36

92190

TUBE,4.5X8X330

92190-1557

$14.64

92191

TUBE

92191-1223

$2.58

92191A

TUBE

92191-1224

$12.42

92191B

TUBE

92191-1248

$12.42

92191C

TUBE

92191-1249

$5.47

15003

CARBURETOR-ASSY

15003-1417

Unavailable

15003A

CARBURETOR-ASSY

15003-1418

Unavailable

16017

JET-NEEDLE,#6

16017-1270

$50.08

16017A

JET-NEEDLE,01D34

16017-1286

Unavailable
