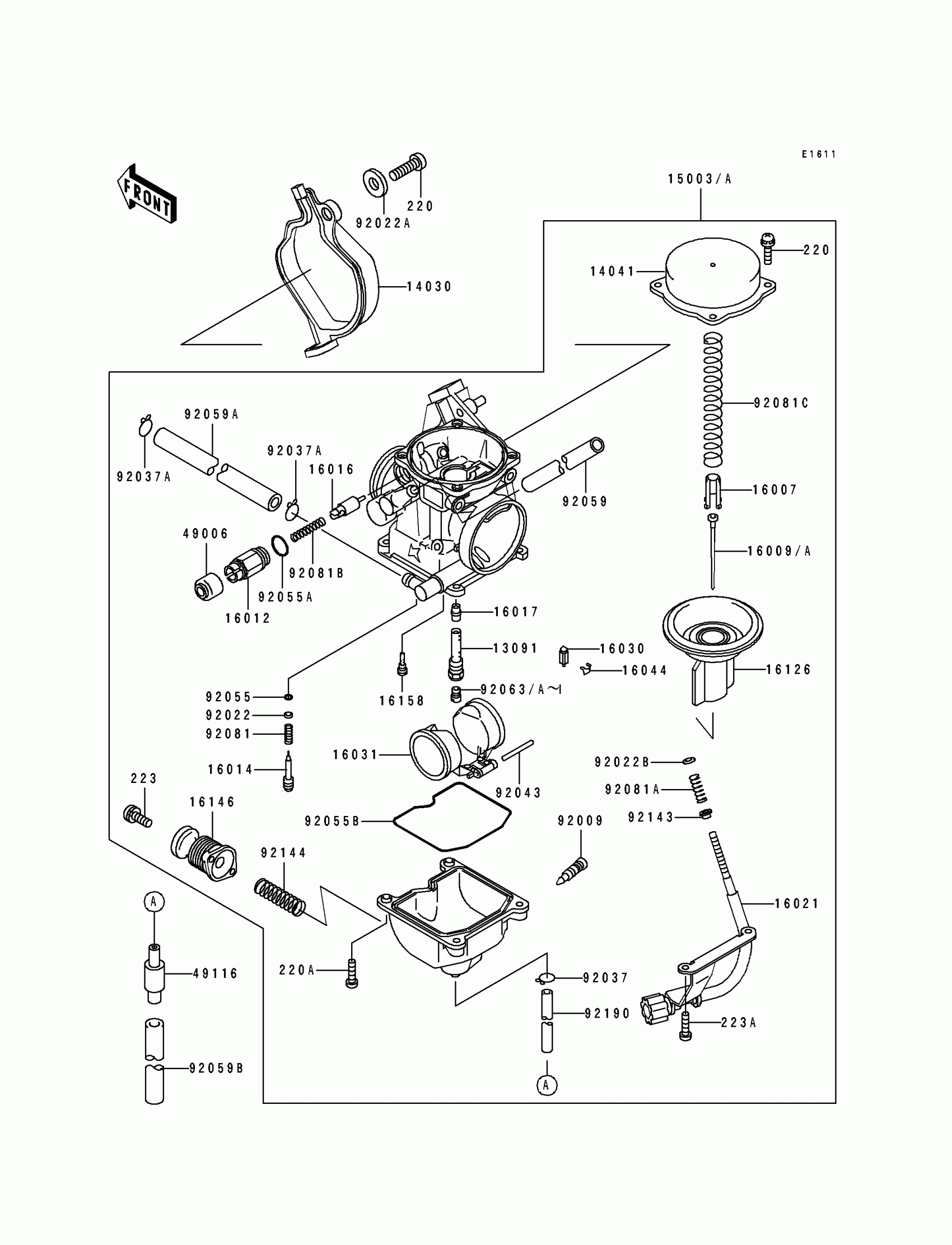

Kawasaki Bayou 400 4X4 Carburetor Diagram
#
13091
HOLDER,NEEDLE JET
13091-1259
$33.38
14030
COVER-CARBURETOR
14030-1054
$14.86
14041
TOP-CHAMBER,MIXING,INSIDE
14041-1077
$95.95
15003A
CARBURETOR-ASSY
15003-1123
$591.62
16007
SEAT-SPRING,THROTTLE VALVE
16007-1120
$26.23
16009A
NEEDLE-JET,N74K
16009-1829
Unavailable
16012
CAP-STARTER PLUNGER
16012-1055
$27.48
16014
SCREW-PILOT AIR
16014-1054
$24.57
16016
PLUNGER,STARTER
16016-1065
$58.52
16017
JET-NEEDLE,#6
16017-1270
$49.12
16021
SCREW-THROTTLE STOP
16021-1154
$125.81
16030
VALVE-FLOAT
16030-1007
$47.99
16031
FLOAT
16031-1056
$53.59
16044
CLAMP,FLOAT VALVE
16044-007
$7.91
16126
VALVE,VACUUM
16126-1199
$200.34
16146
COVER-ASSY,PUMP
16146-1129
$34.85
16158
JET-SLOW,#42
16158-1053
$26.65
49006
BOOT,STARTER PLUNGER
49006-1165
$10.00
49116
VALVE-ASSY
49116-1126
$20.77
92009
SCREW,DRAIN,M6X0.75
92009-1551
$9.91
92022
WASHER,PLAIN
92022-1003
$4.31
92022A
WASHER,5.2X13X1
92022-1380
$4.31
92022B
WASHER,PLAIN,STOP SPRING
92022-1480
$5.00
92037
CLAMP,TUBE
92037-1201
$4.60
92037A
CLAMP,TUBE
92037-1531
$5.52
92043
PIN,FLOAT
92043-1207
$11.14
92055
RING-O,PILOT ADJUST
92055-1002
$4.31
92055A
RING-O,STARTER PLUNGER
92055-1416
$5.78
92055B
RING-O,FLOAT CHAMBER
92055-1518
$24.43
92059
TUBE,6.5X11.5X150
92059-1463
$35.06
92059A
TUBE,6.5X9.5X430
92059-1727
$30.56
92059B
TUBE,7X10X100
92059-1736
$4.46
92063
JET-MAIN,#85
92063-1023
$15.76
92063A
JET-MAIN,#125
92063-1069
$14.79
92063C
JET-MAIN,#118
92063-1071
$14.79
92063D
JET-MAIN,#120
92063-1072
$14.79
92063E
JET-MAIN,#122
92063-1073
$14.79
92063I
JET-MAIN,#115
92063-1118
$14.79
92081
SPRING,PILOT ADJUST SCREW
92081-1002
$5.46
92081A
SPRING
92081-1620
$4.96
92081B
SPRING,PLUNGER
92081-1720
$10.19
92081C
SPRING,VACUUM VALVE
92081-1775
$25.81
92143
COLLAR
92143-1589
$4.11
92144
SPRING,PUMP
92144-1672
$10.67
92190
TUBE,4.5X8X330
92190-1557
$15.47
220
SCREW PAN HEAD 4X8
220B0408
$0.67
220A
SCREW-PAN-CROS,4X14
220D0414
$4.60
223
SCREW-PAN-WS-CROS
223C0412
$4.32
