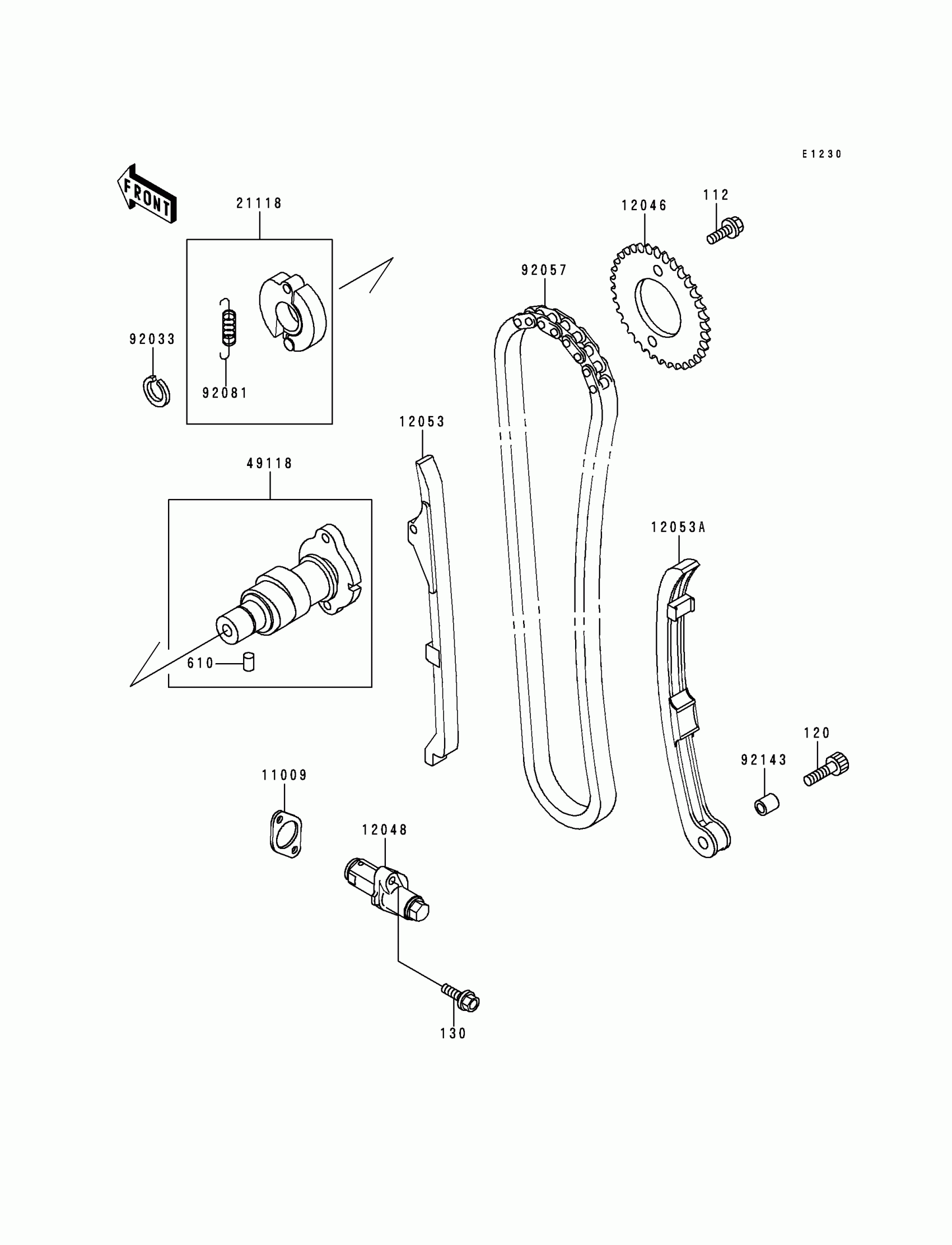

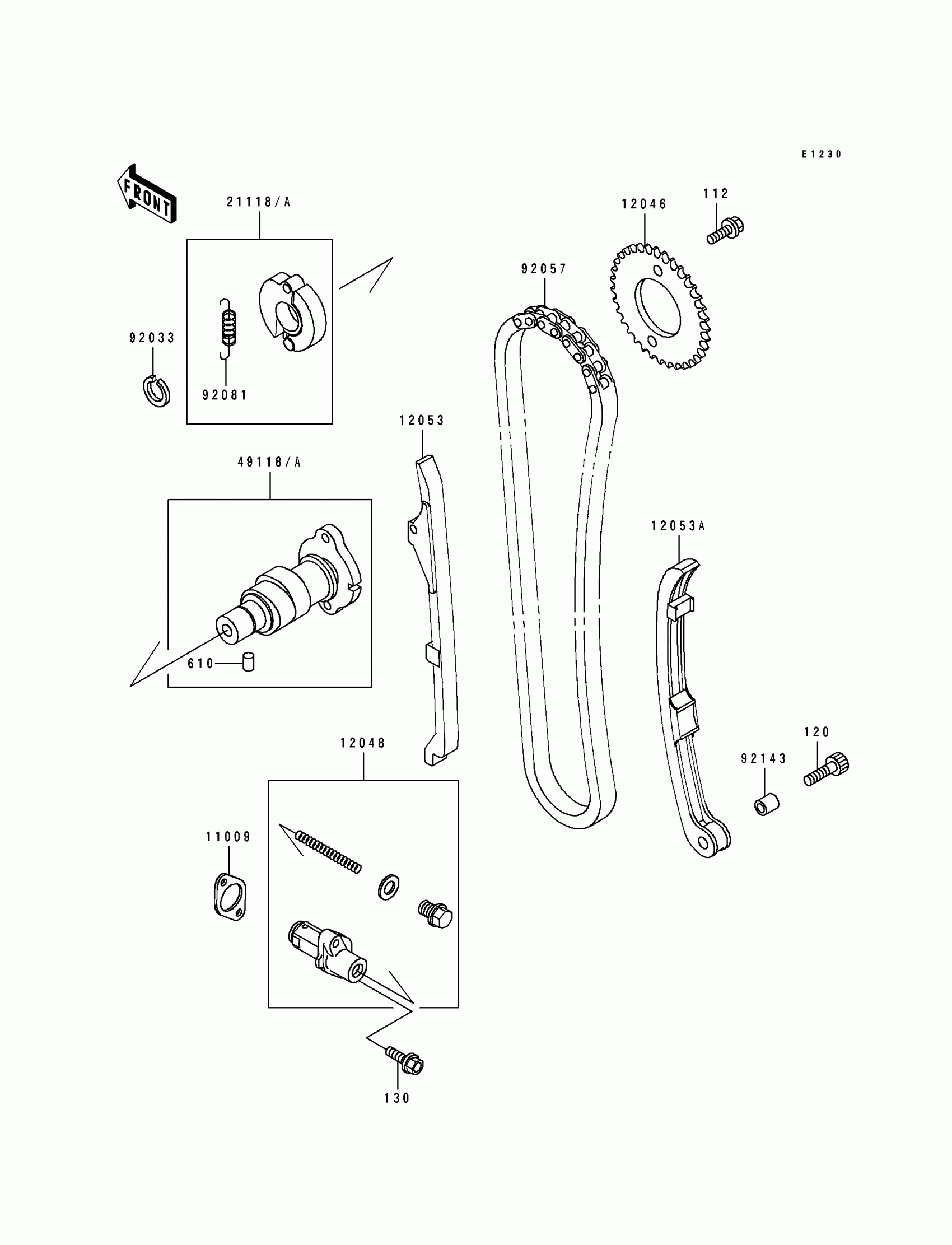

Kawasaki Bayou 400 4X4 Camshaft(s)/Tensioner Diagram

Description

Price

112

BOLT,6X10

112G0610

$0.58

120

BOLT-SOCKET,6X25

120P0625

$1.92

130

BOLT-FLANGED,6X25

130J0625

$2.62

610

ROLLER,4X6

610A0406

$4.31

11009

GASKET,TENSIONER

11009-1858

$4.61

12046

SPROCKET,CAM,38T

12046-1131

$66.85

12048

TENSIONER-ASSY

12048-1086

$146.79

12053

GUIDE-CHAIN,FR

12053-1289

$47.98

12053A

GUIDE-CHAIN,RR

12053-1290

Unavailable

21118

DECOMPRESSOR

21118-1082

$169.06

49118

CAMSHAFT-COMP

49118-1129

Unavailable

92033

RING-SNAP,18.7MM

92033-1214

$4.35

92057

CHAIN,CAM,82RH2010-118L

92057-1256

$129.67

92081

SPRING,DECOMPRESSOR

92081-1674

$7.64

92143

COLLAR,6X8X10.2

92143-1253

$5.78
