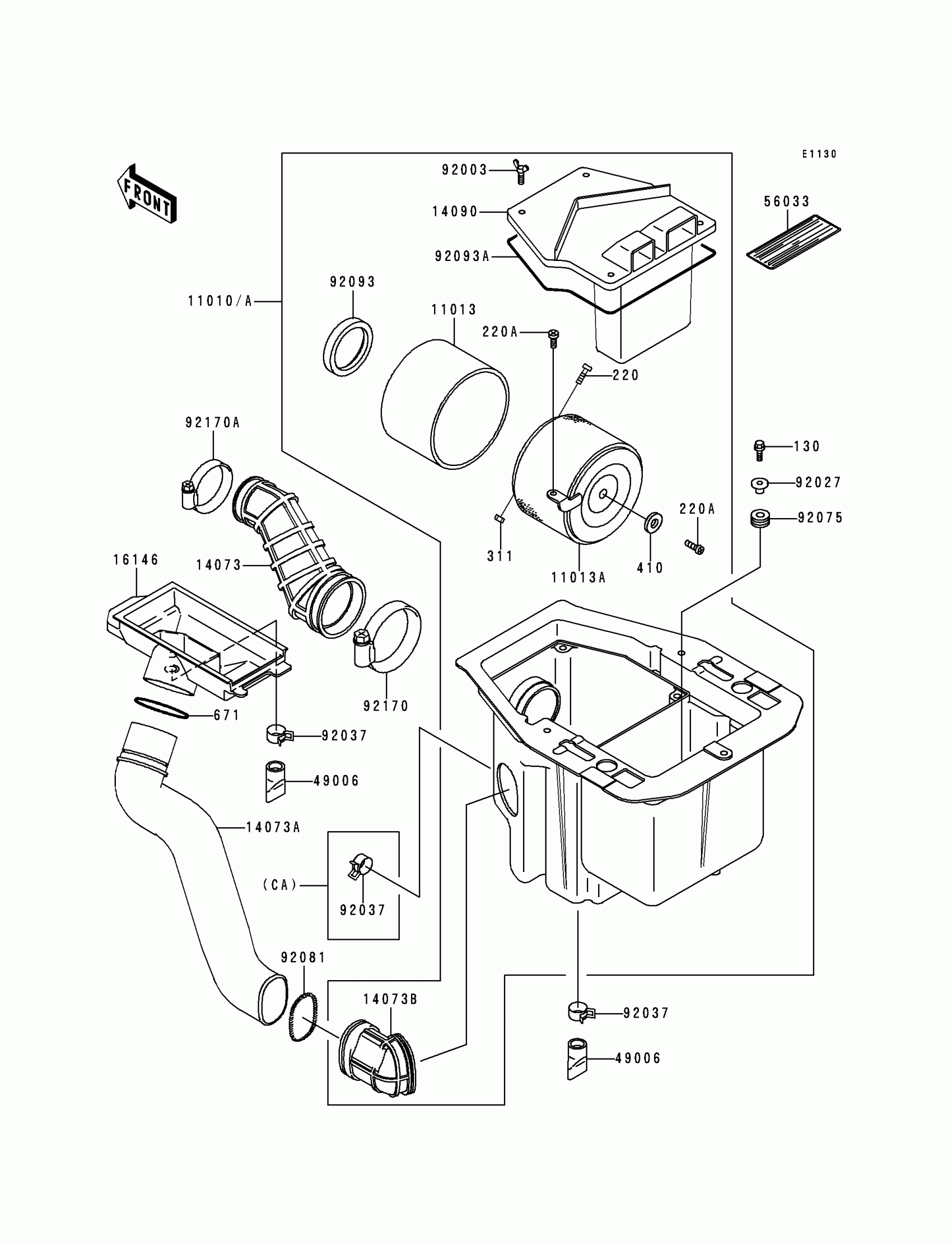

Kawasaki Bayou 400 4X4 Air Cleaner(KLF400-B4/B5/B6) Diagram
#
Description
Price
130
BOLT,FLANGED,6X18
130B0618
Unavailable
220
SCREW PAN HEAD 5X16
220B0516
$2.06
220A
SCREW-PAN-CROS,6X14
220B0614
$1.48
311
NUT-HEX
311B0500
$0.47
410
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
671
O RING
671B2550
$2.29
11013
ELEMENT-AIR FILTER
11013-1205
$6.64
11013A
ELEMENT-AIR FILTER
11013-1217
$36.88
14073
DUCT,AIR FILTER
14073-1497
$77.94
14073A
DUCT,SNORKEL
14073-1638
Unavailable
14073B
DUCT,AIR FILTER
14073-1666
$29.14
14090
COVER,AIR FILTER
14090-1637
Unavailable
16146
COVER-ASSY
16146-1179
Unavailable
49006
BOOT
49006-1292
$7.77
56033
LABEL-MANUAL,MAINTENANCE
56033-1079
$2.70
92003
BOLT,CLNR ELEMENT
92003-199
$9.17
92027
COLLAR,FLANGED,L=12.1,BLACK
92027-1651
$5.57
92075
DAMPER,CASE
92075-222
$7.34
92081
SPRING,DUCT
92081-1638
$9.80
92093
SEAL,DUST
92093-1322
$9.82
92093A
SEAL,AIR FILTER CASE
92093-1331
Unavailable
92170
CLAMP
92170-1675
$12.54
92170A
CLAMP
92170-1679
$6.63
11010
FILTER-ASSY-AIR
11010-1582
Unavailable
11010A
FILTER-ASSY-AIR
11010-1623
Unavailable
92037
CLAMP
92037-1860
Unavailable
92037
CLAMP
92037-1860
Unavailable
