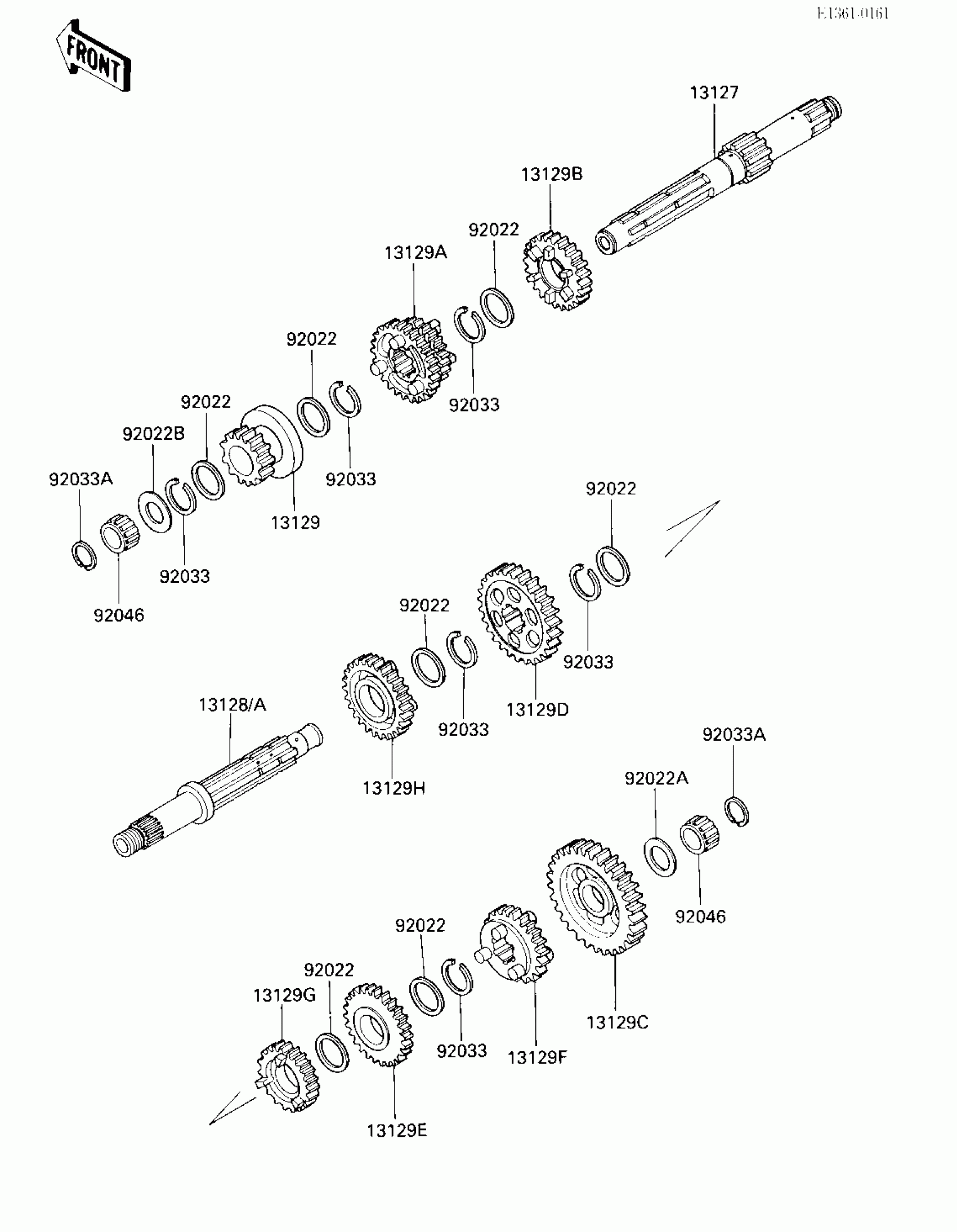

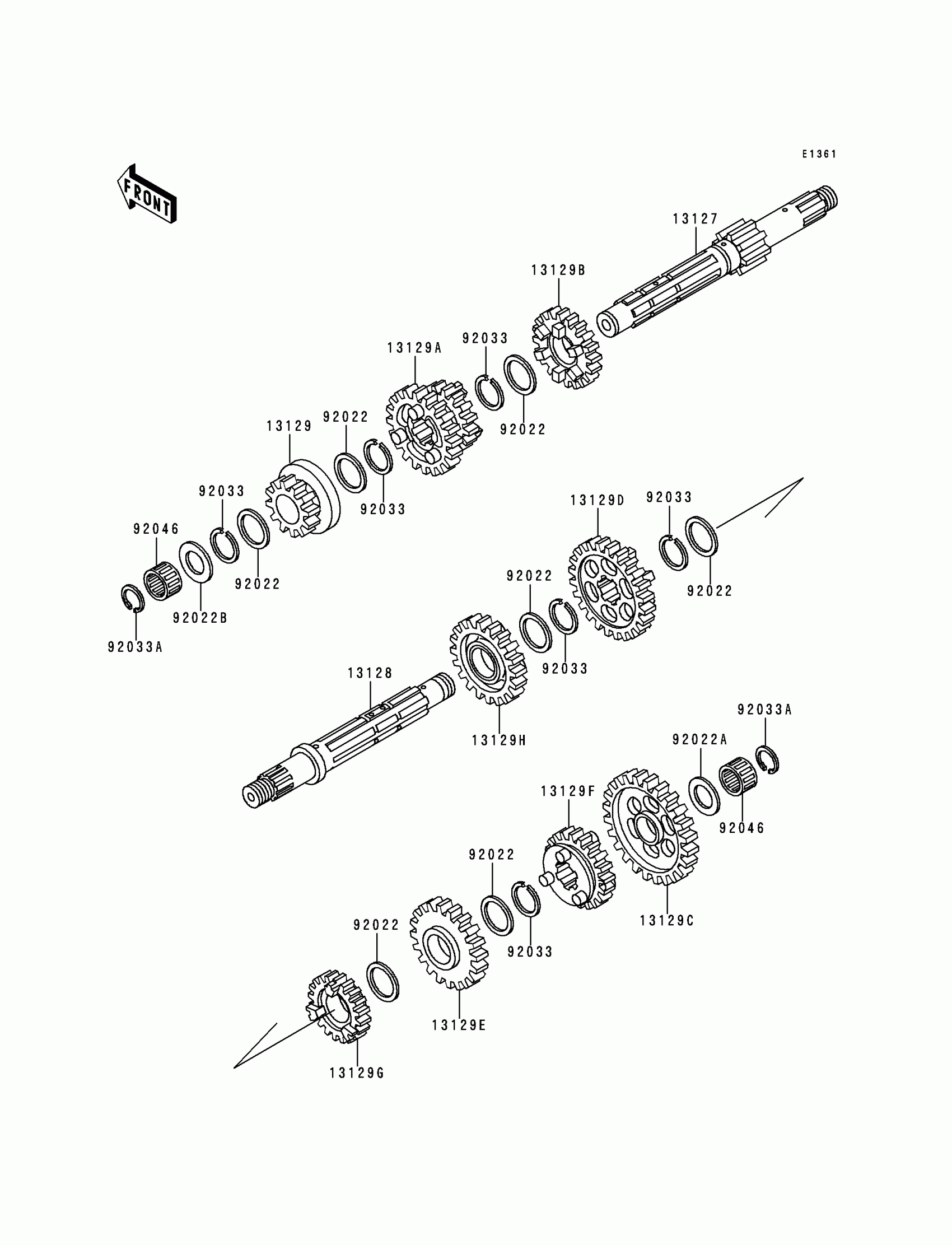

Kawasaki Bayou 300 TRANSMISSION Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT,11T

13127-1127

$238.20

13128

SHAFT-TRANSMISSION OU

13128-1121

Unavailable

13128A

SHAFT-TRANSMISSION OUTPUT

13128-1132

$204.37

13129

GEAR,INPUT 2ND,14T

13129-1680

$127.52

13129A

GEAR,INPUT TOP&3RD,26T&19T

13129-1681

$139.73

13129B

GEAR,INPUT 4TH,23T

13129-1682

$127.52

13129C

GEAR,OUTPUT LOW,34T

13129-1683

$135.38

13129D

GEAR,OUTPUT 2ND,27T

13129-1684

$135.38

13129E

GEAR,OUTPUT 3RD,26T

13129-1685

$127.52

13129F

GEAR,OUTPUT 4TH,23T

13129-1686

$127.52

13129G

GEAR,OUTPUT TOP,20T

13129-1687

$127.52

13129H

GEAR-REVERSE,26T

13129-1688

$127.52

92022

WASHER,22.3X27X0.5

92022-198

$5.52

92022A

WASHER,17.3X28X1

92022-255

$8.58

92022B

WASHER,17.3X30X1.4

92022-270

$9.84

92033

RING-SNAP,20X25.5X1.2

92033-025

$4.96

92033A

RING-SNAP

92033-032

$4.96

92046

BEARING-NEEDLE

92046-1184

$21.25
