Description

Price

11012

CAP

11012-1452

Unavailable

11012A

CAP,WHEEL

11012-1480

Unavailable

14014

PLATE-POSITION

14014-1072

$18.76

41035

PANEL-ASSY-BRAKE,RR,L

41035-1198

$420.67

41035A

PANEL-ASSY-BRAKE,RR,R

41035-1199

$419.89

41038

DRUM,RR

41038-5005

$359.38

41048

SHOE-BRAKE

41048-1069

$27.31

41050

CAM-BRAKE

41050-1063

$42.67

41053

LEVER-BRAKE CAM

41053-1064

$49.74

41085

INDICATOR

41085-1053

$13.84

92001

BOLT,10X30

92001-4017

$4.36

92002

BOLT,10X30

92002-1388

$9.48

92015

NUT,6MM

41072-007

$3.92

92015A

NUT,CASTLE,18MM

42045-018

$9.23

92022

WASHER,18.3X34X4.5

92022-1658

$3.92

92037

CLAMP,TUBE

92037-147

$7.34

92037A

CLAMP

92037-1707

$6.44

92041

COTTER,4.0X35

92041-1053

$3.92

92049

SEAL-OIL

92049-1242

$125.13

92055

RING-O,16.8X2.4

92055-1258

$4.92

92055A

RING-O,59.6X2.4

92055-3018

$6.22

92059

TUBE

92059-1647

$11.40

92072

BAND,L=123

92072-030

$5.00

92081

SPRING,BRAKE SHOE

42020-004

$8.51

112

BOLT-UPSET

112H0640

$3.90

130

BOLT-FLANGED,10X16

130B1016

$4.44

461

WASHER SPRING 10MM

461F1000

$0.67

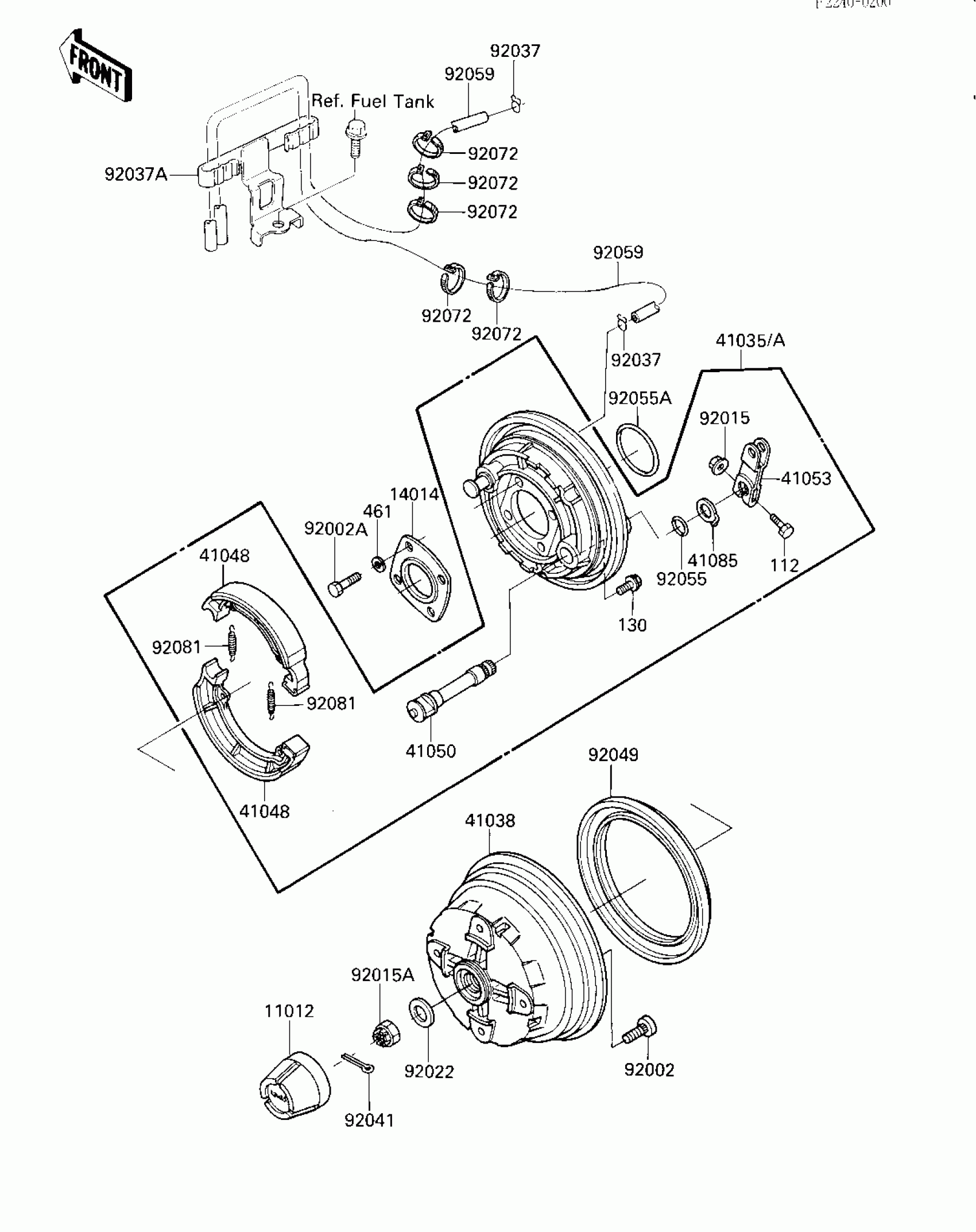

Kawasaki Bayou 300 REAR HUB/BRAKE Diagram

CAP

CAP,WHEEL

PLATE-POSITION

PANEL-ASSY-BRAKE,RR,L

PANEL-ASSY-BRAKE,RR,R

DRUM,RR

SHOE-BRAKE

CAM-BRAKE

LEVER-BRAKE CAM

INDICATOR

BOLT,10X30

BOLT,10X30

NUT,6MM

NUT,CASTLE,18MM

WASHER,18.3X34X4.5

CLAMP,TUBE

CLAMP

COTTER,4.0X35

SEAL-OIL

RING-O,16.8X2.4

RING-O,59.6X2.4

TUBE

BAND,L=123

SPRING,BRAKE SHOE

BOLT-UPSET

BOLT-FLANGED,10X16

WASHER SPRING 10MM
