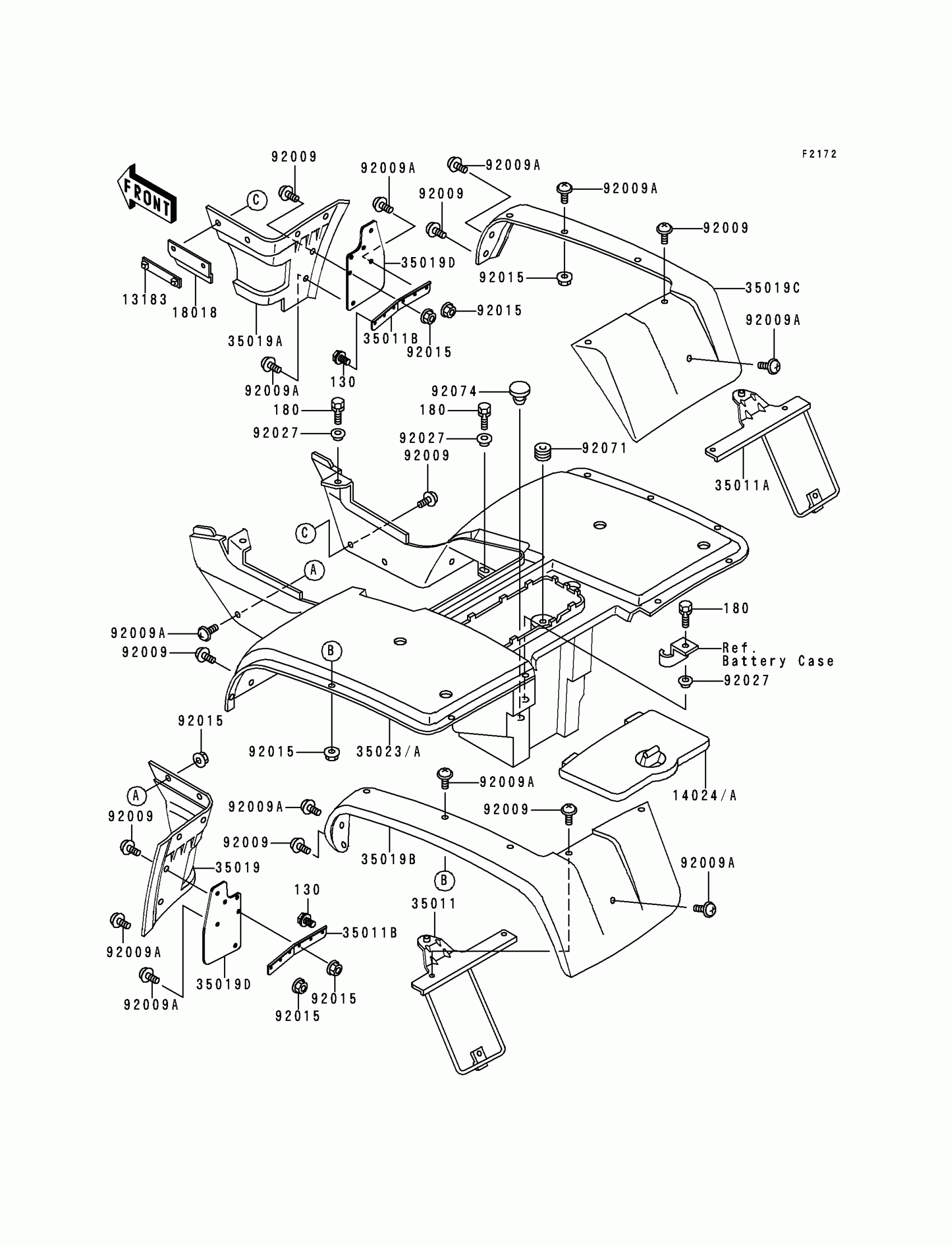

Kawasaki Bayou 300 Rear Fender(s) Diagram

#

Description
Price

130

BOLT-FLANGED,6X10

130C0610

Unavailable

180

BOLT-UPSET-WS

180D0618

Unavailable

13183

PLATE,HEAT GUARD

13183-1035

$8.54

14024

COVER,REAR FENDER,BLACK

14024-1095-6D

Unavailable

14024A

COVER,REAR FENDER,F.RED

14024-1095-6L

$41.04

18018

PLATE-HEAT GUARD

18018-1071

$20.66

35011

STAY,REAR FLAP,LH

35011-1418

$48.84

35011A

STAY,REAR FLAP,RH

35011-1419

$42.68

35011B

STAY,FLAP,OUTER

35011-1435

$31.54

35019

FLAP,FR,LH

35019-1225

$27.59

35019A

FLAP,FR,RH

35019-1226

$31.57

35019B

FLAP,RR,LH

35019-1227

Unavailable

35019C

FLAP,RR,RH

35019-1228

Unavailable

35019D

FLAP,FR,OUTER

35019-1255

$11.44

35023

FENDER-REAR,BLACK

35023-1139-6D

Unavailable

35023A

FENDER-REAR,F.RED

35023-1139-6L

$250.73

92009

SCREW,6X18,BLACK

92009-1181

$1.98

92009A

SCREW,6X14

92009-1288

$2.99

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92027

COLLAR,L=5.6

92027-1933

$4.37

92071

GROMMET

92071-1131

$5.93

92074

PLUG,11X3.2

92074-038

$7.14
