2001 Kawasaki Bayou 300 Optional Parts Diagram

← All diagrams

Find the part on the Optional Parts diagram for your 2001 Kawasaki Bayou 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

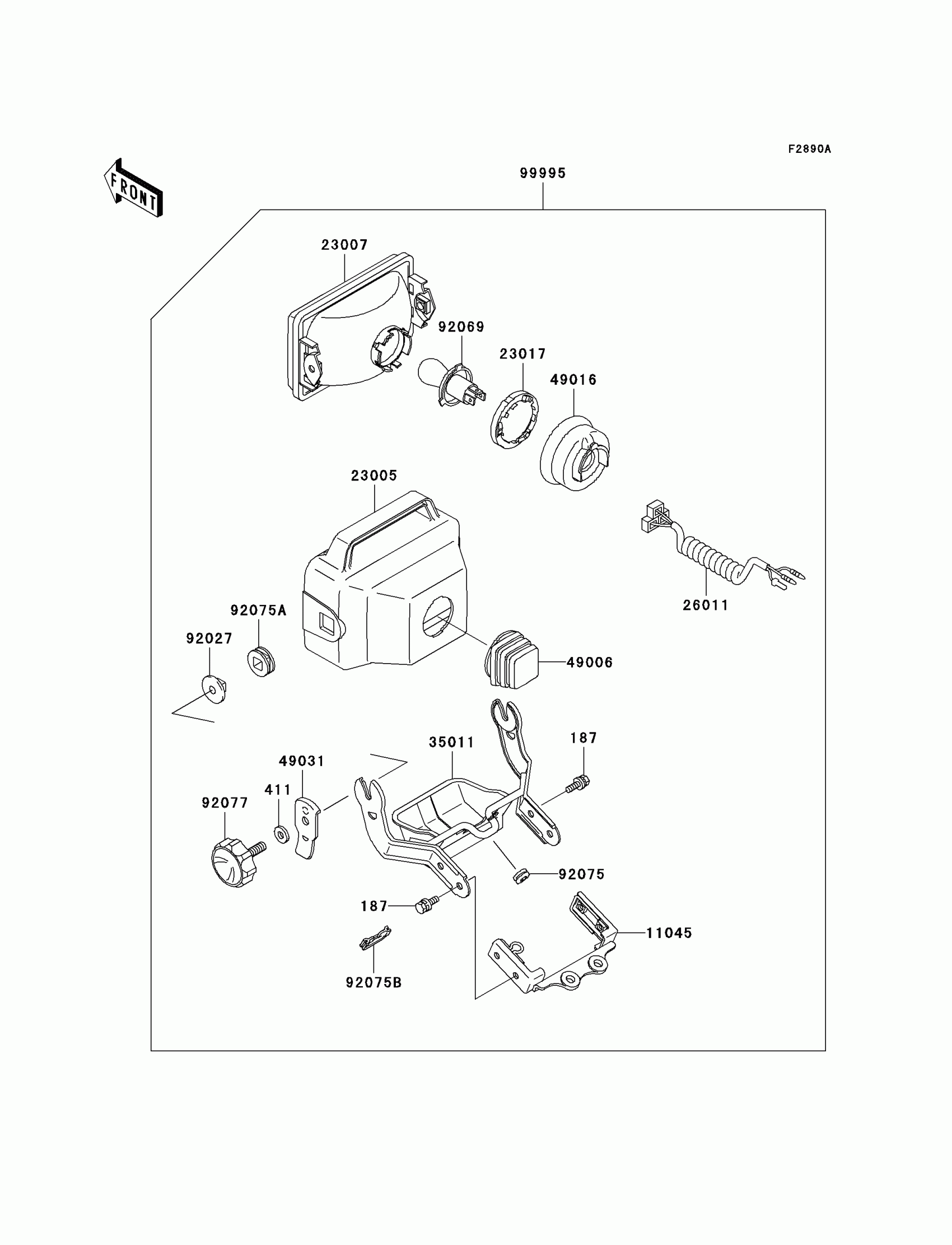

2001 Kawasaki Bayou 300 Optional Parts Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

187

BOLT-UPSET-WSP

187C0614

1
Out of stock

411

WASHER PLAIN

411F0800

1
Out of stock

11045

BRACKET,HEAD LAMP

11045-1924

1
Out of stock

23005

BODY-COMP-HEAD LAMP,BLACK

23005-1064-6Z

1
Out of stock

23007

LENS-COMP,HEAD LAMP

23007-1138

1
Out of stock

23017

SOCKET,BULB

23017-1051

1
Out of stock

26011

WIRE-LEAD,HEAD LAMP

26011-1405

1
Out of stock

35011

STAY,HEAD LAMP

35011-1413

1
Out of stock

49006

BOOT,HEAD LAMP BODY

49006-1172

1
Out of stock

49016

COVER-SEAL,BULB SOCKET

49016-1111

1
Out of stock

49031

LATCH,HEAD LAMP

49031-1052

1
Out of stock

92027

COLLAR,L=11.9

92027-1938

1
Out of stock

92069

BULB,12V 65/60W

92069-1069

1
Out of stock

92075

DAMPER,HEAD LAMP HOLDER

92075-1482

1
Out of stock

92075A

DAMPER,HEAD LAMP FITTING

92075-1768

1
Out of stock

92075B

DAMPER

92075-1881

1
Out of stock

92077

KNOB,HEAD LAMP

92077-1060

1
Out of stock

99995

KIT.,HEAD LAMP

99995-1018

1
Out of stock
