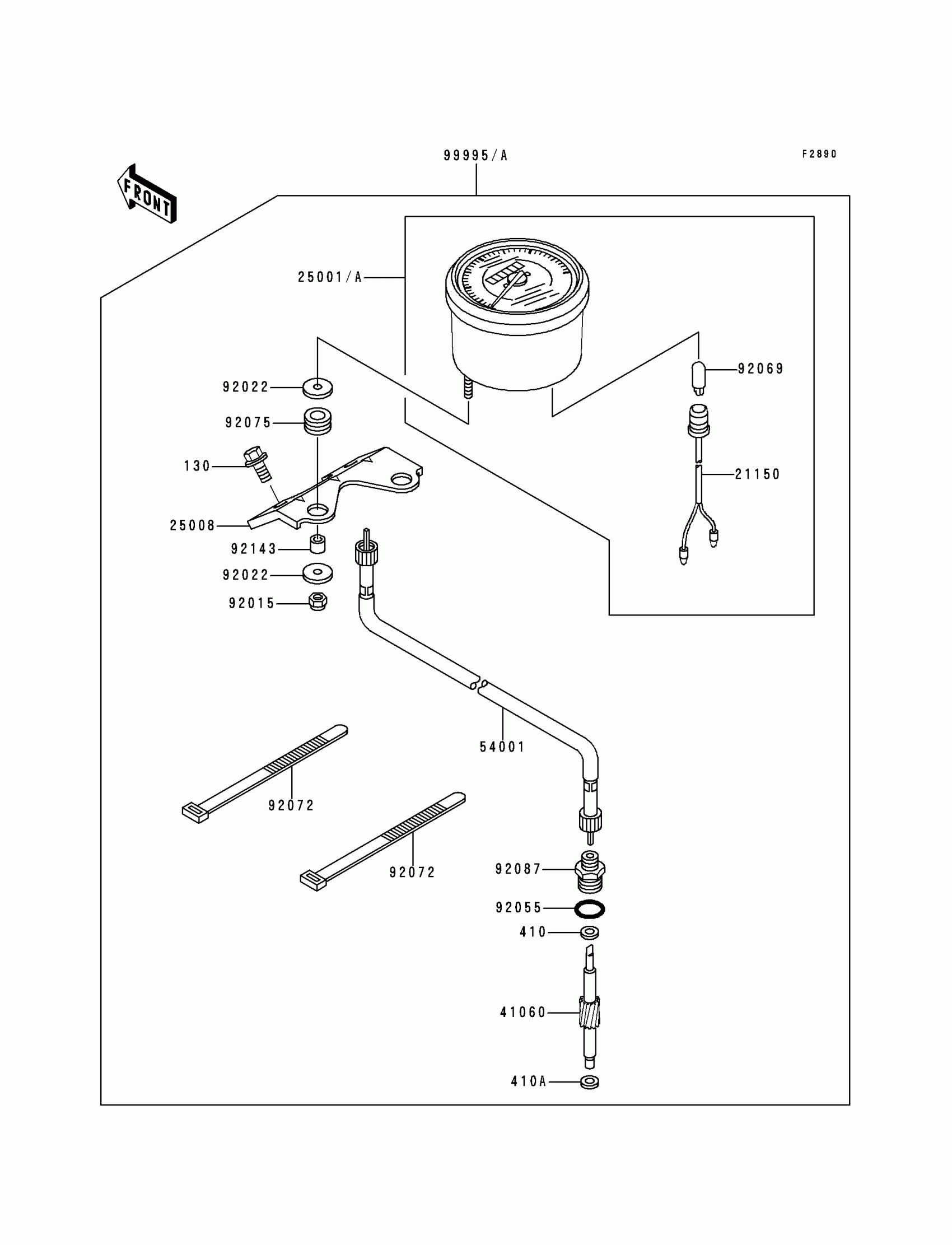

Kawasaki Bayou 300 Optional Parts(Meter) Diagram

Description

Price

130

BOLT-FLANGED,8X12

130J0812

Unavailable

410

WASHER PLAIN 5MM

410B0500

Unavailable

410A

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

21150

CORD-ASSY,SPEEDOMETER

21150-1054

$35.68

25008

BRACKET-METER

25008-1144

$142.73

41060

GEAR-METER SCREW,10T

41060-1113

$37.35

54001

CABLE-SPEEDOMETER

54001-1115

$21.85

92015

NUT,LOCK,5MM

92015-1221

$4.67

92022

WASHER,5.5X20X1.2

92022-1405

$3.29

92055

RING-O,ID=13.8

92055-1141

$2.99

92069

BULB,12V 3.4W,T10

92069-1007

$3.81

92072

BAND,L=149

92072-031

$3.81

92075

DAMPER

92075-1409

$5.61

92087

BUSHING-METER GEAR

92087-1054

$38.50

92143

COLLAR,5.5X10X8.5

92143-1235

$5.14

25001

METER-ASSY,SPEED,MPH

25001-1723

$329.61

25001A

METER-ASSY,SPEED,KPH

25001-1725

Unavailable

99995

KIT.,METER,MPH

99995-1008

$31.84

99995A

KIT.,METER,KPH

99995-1009

Unavailable
