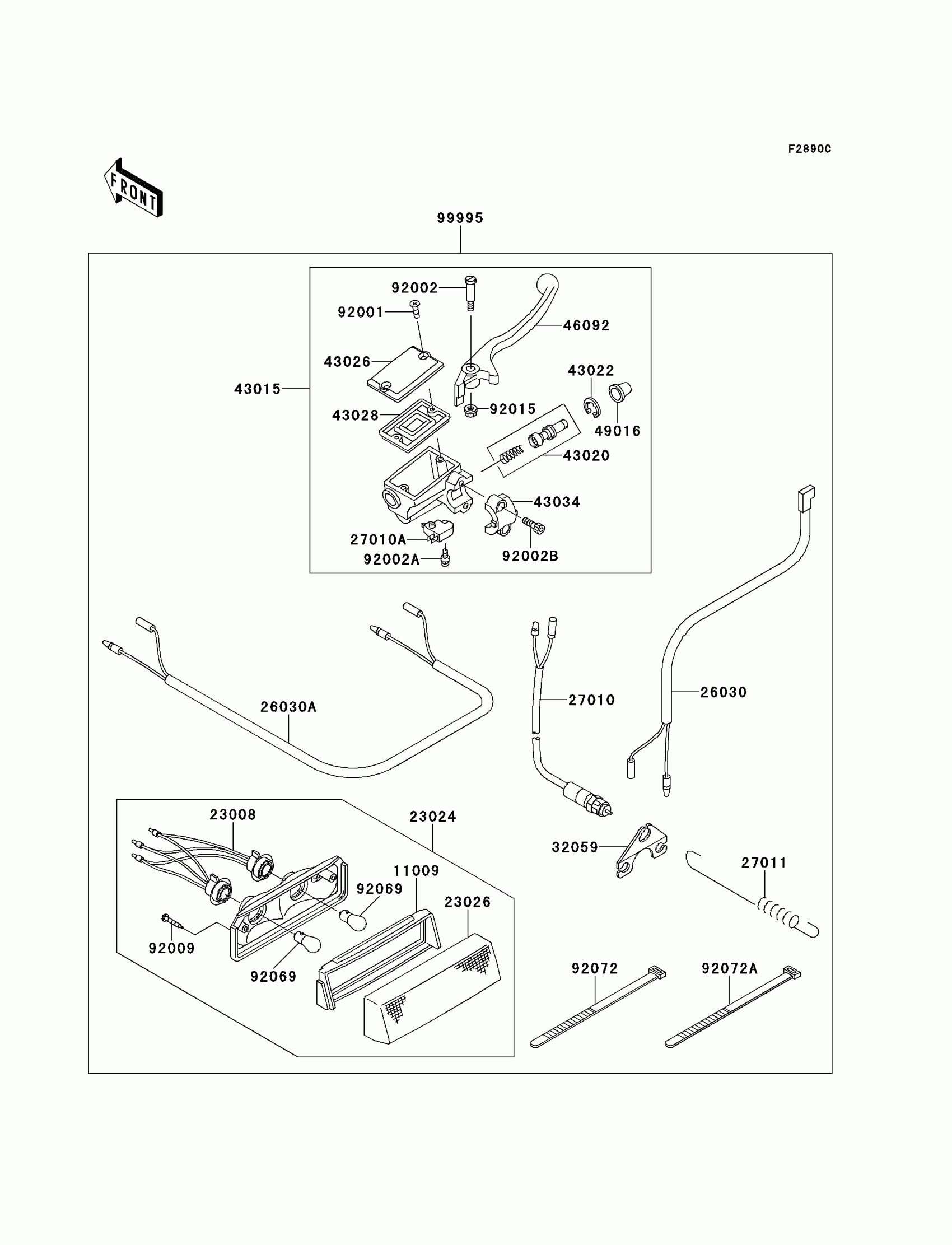

Kawasaki Bayou 300 Optional Parts(CN)(Brake Switch) Diagram

#

Description
Price

11009

GASKET,TAIL LAMP

11009-1404

$20.20

23008

SOCKET-ASSY,TAIL LAMP

23008-1461

$34.01

23024

LAMP-ASSY-TAIL

23024-1121

Unavailable

23026

LENS,TAIL LAMP

23026-1056

$30.16

26030

HARNESS

26030-1058

$16.59

26030A

HARNESS,REAR BRAKE

26030-1062

Unavailable

27010

SWITCH,BRAKE LAMP

27010-025

$26.96

27010A

SWITCH,BRAKE

27010-1170

$32.62

27011

SPRING,SWITCH

27011-014

$8.46

32059

BRACKET-SWITCH,REAR BRAKE

32059-1107

$23.20

43015

CYLINDER-ASSY-MASTER,FR

43015-1438

Unavailable

43020

PISTON-COMP-BRAKE,FR

43020-1056

$58.51

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-1059

$51.13

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$18.50

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1053

$36.55

46092

LEVER-GRIP,FRONT BRAKE

46092-1167

Unavailable

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

92001

SCREW,5MM,BLACK

92001-1727

$3.14

92002

BOLT,LEVER SET,BLACK

92002-1322

$8.91

92002A

BOLT,SCREW,4X12

92002-1323

$2.99

92002B

BOLT,SOCKET,6X20,BLACK

92002-1324

$7.54

92009

SCREW,TAPPING,4X30

92009-1056

$3.92

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92069

BULB,12V 27/8W

92069-059

$6.19

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,L=186

92072-056

$3.81

99995

KIT.,BRAKE SWITCH

99995-1441

Unavailable
