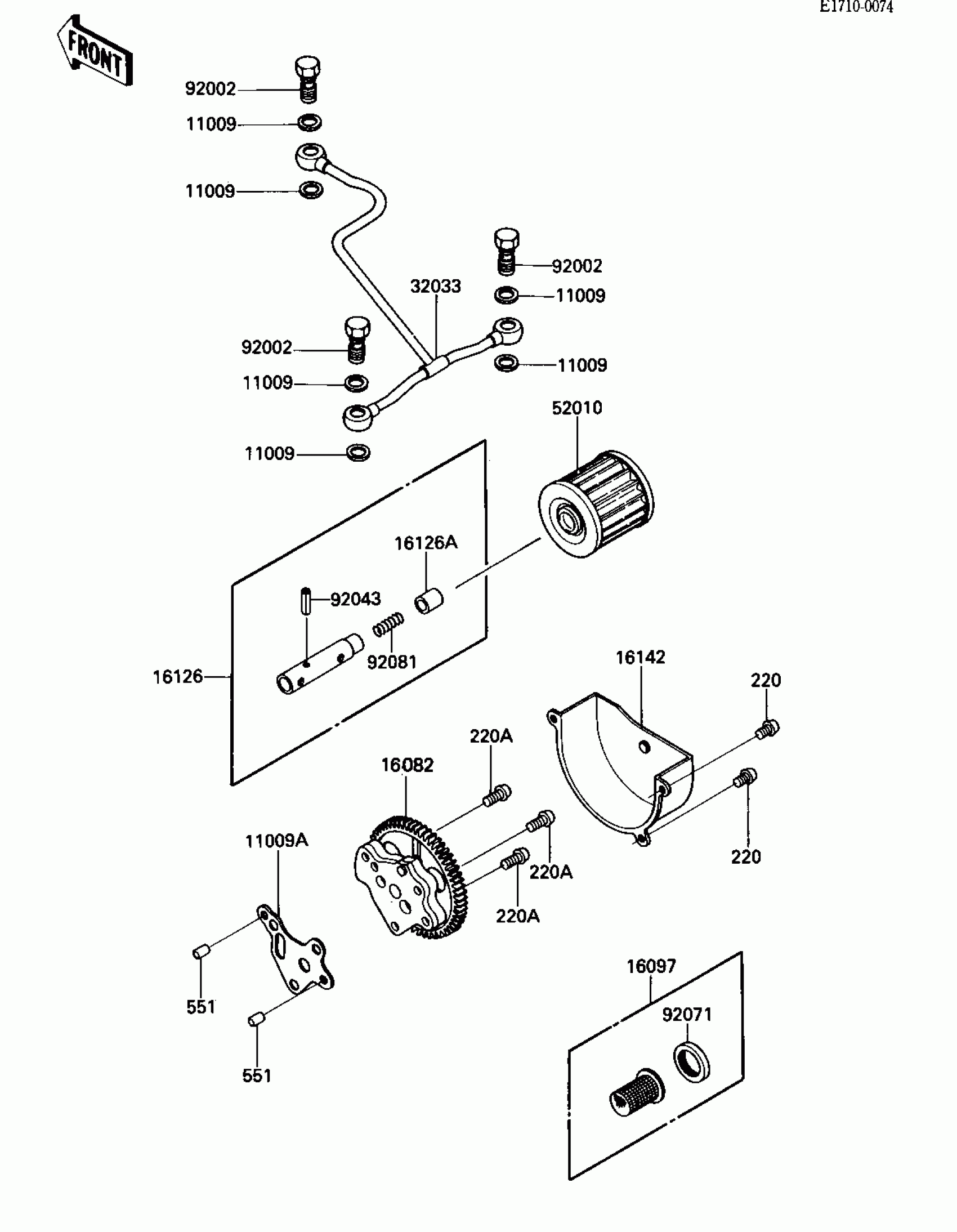

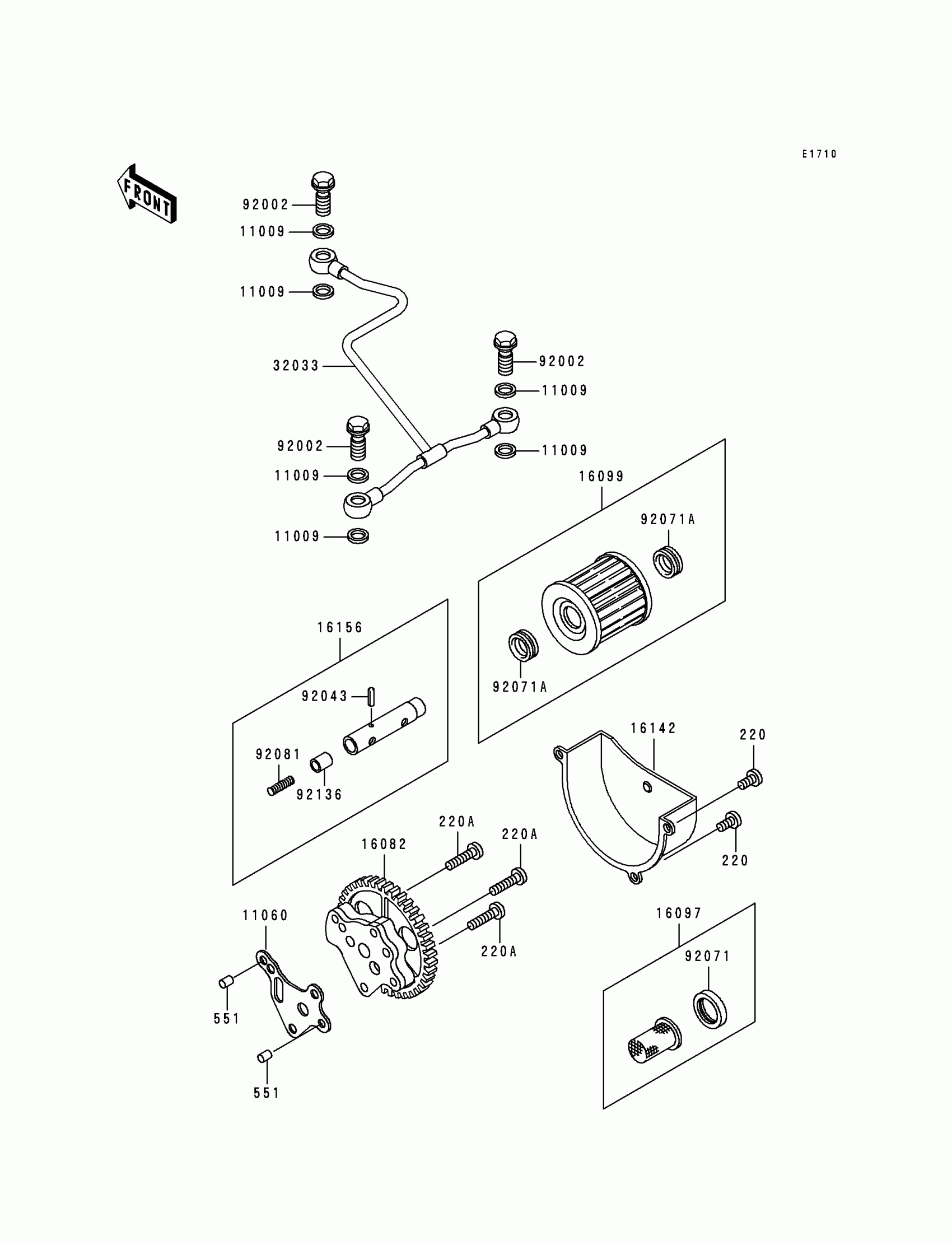

Kawasaki Bayou 300 Oil Pump/Oil Filter Diagram

Description

Price

220

SCREW PAN HEAD 6X12

220B0612

Unavailable

220A

SCREW PAN HEAD 6X25

220B0625

$2.60

551

PIN-DOWEL,6X8

551A0608

$3.92

11009

GASKET,10X14.5X1.5

11009-1105

$6.51

11060

GASKET,OIL PUMP

11060-1657

$5.53

16082

PUMP-ASSY-OIL

16082-1068

$180.63

16097

FILTER-ASSY-OIL

16097-1001

$12.23

16099

ELEMENT-OIL FILTER

16099-004

$9.26

16142

COVER-PUMP

16142-1064

$17.55

16156

PISTON-ASSY,VALVE,BY-PASS

16156-002

$23.25

32033

PIPE,OIL

32033-1744

$83.10

92002

BOLT,OIL,L=23

92002-1888

$5.48

92043

PIN,SPRING,2.2X13.5

92043-123

$4.69

92071

GROMMET,OIL STRAINER

92071-100

$5.46

92071A

GROMMET,OIL FILTER

92071-101

$5.46

92081

SPRING,PISTON

92081-043

$5.46

92136

VALVE

92136-002

$4.65
