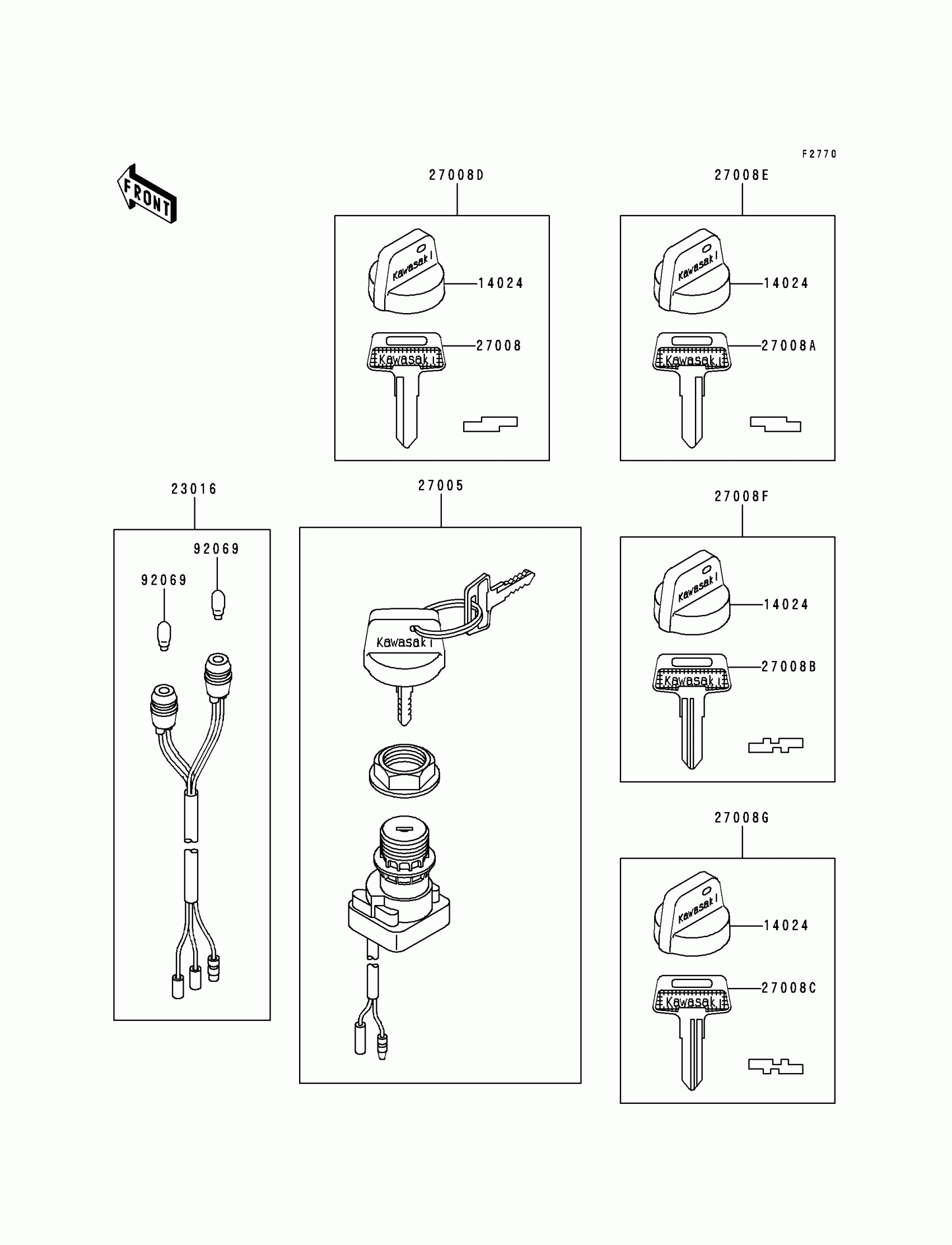

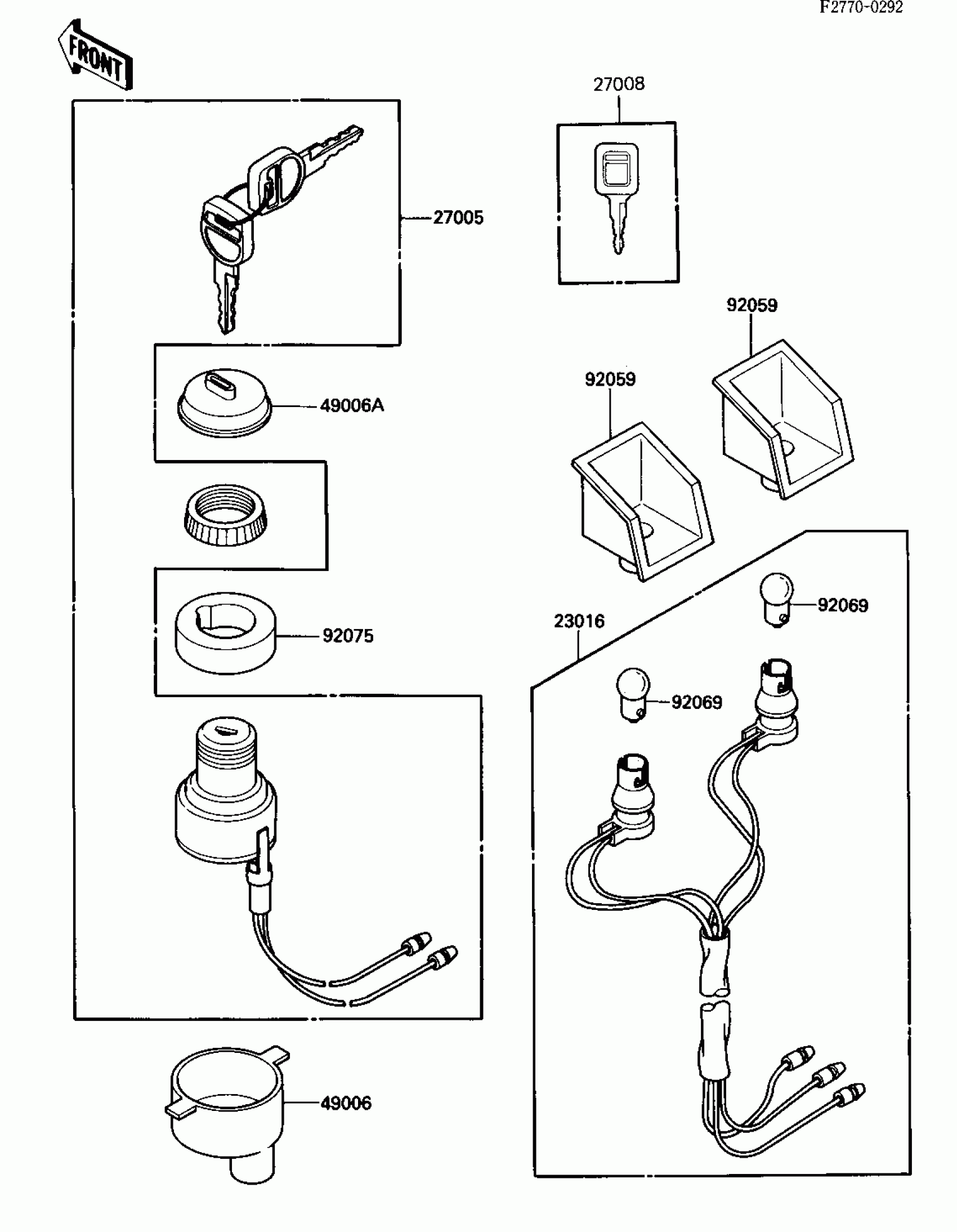

Kawasaki Bayou 300 Ignition Switch Diagram

#

Description
Price

14024

COVER,KEY

14024-1551

$6.29

23016

LAMP-ASSY,NEUTRAL&REVERSE

23016-1083

$58.77

26011

WIRE-LEAD,REAR BRAKE

26011-1838

$22.68

26030

HARNESS

26030-1058

$17.71

27005A

SWITCH-ASSY-IGNITION

27005-1229

$122.45

27008

KEY-LOCK,BLANK

27008-1041

$17.98

27008A

KEY-LOCK,BLANK

27008-1042

$17.98

27008B

KEY-LOCK,BLANK

27008-1043

$17.98

27008C

KEY-LOCK,BLANK

27008-1044

$17.98

27008D

KEY-LOCK,BLANK,W/COVER

27008-1132

$18.72

27008E

KEY-LOCK,BLANK,W/COVER

27008-1133

$18.72

27008F

KEY-LOCK,BLANK,W/COVER

27008-1134

$18.72

27008G

KEY-LOCK,BLANK,W/COVER

27008-1135

$18.72

27010

SWITCH,REAR BRAKE

27010-0009

$36.18

27011

SPRING-BRAKE LAMP SW

27011-013

$14.69

32059

BRACKET-SWITCH,REAR BRAKE

32059-1107

$24.67

92069

BULB,12V 3W,T7

92069-1020

$6.52

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=188

92072-1239

$1.73

92210

NUT,IGNITION SWITCH

92210-1109

$6.22
