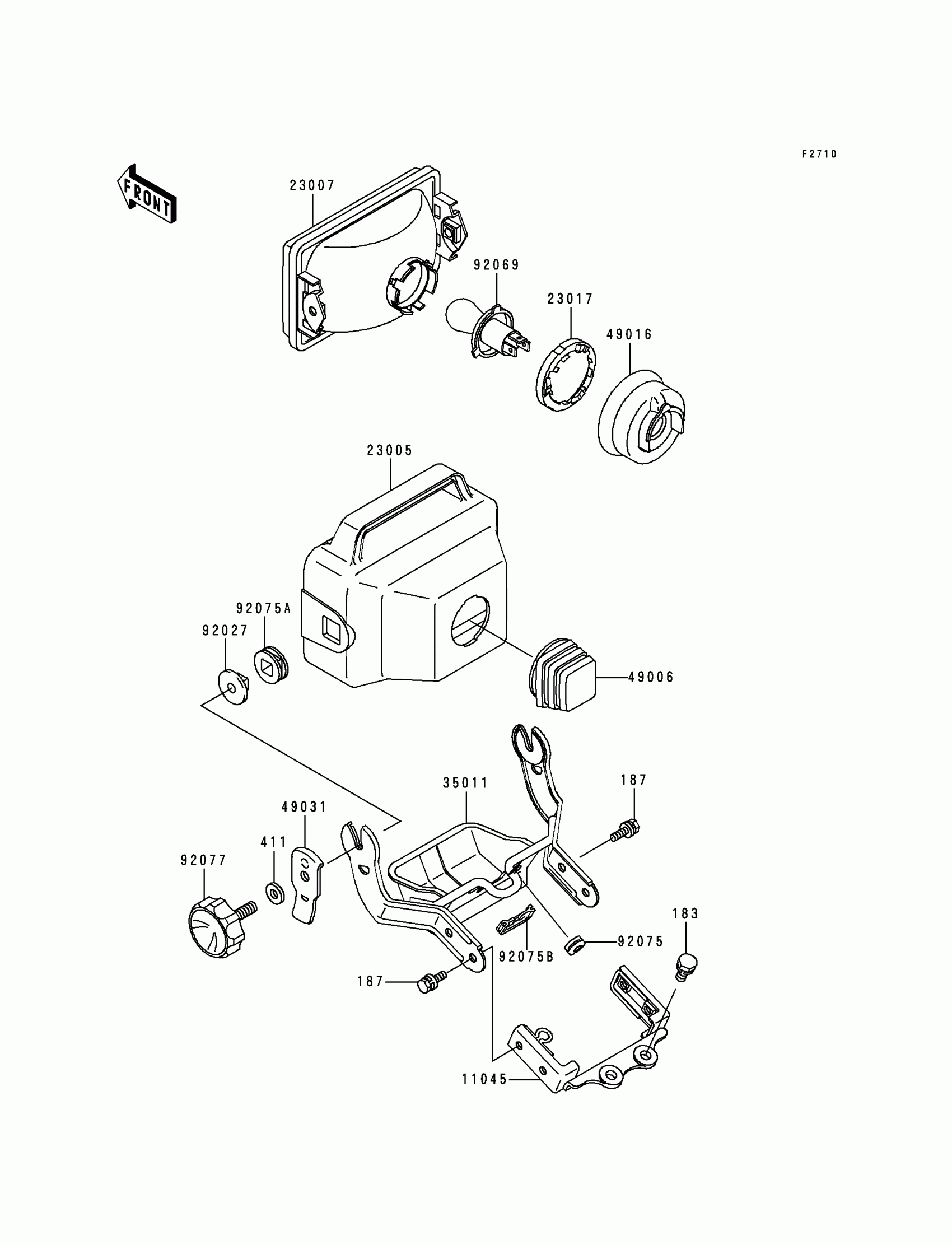

Kawasaki Bayou 300 Headlight(s)(KLF300-B5/B6/B7) Diagram

Description

Price

183

BOLT-UPSET-WS-SMALL

183J0814

$4.73

187

BOLT-UPSET-WSP

187C0614

Unavailable

411

WASHER PLAIN

411F0800

$1.66

11045

BRACKET,HEAD LAMP

11045-1924

$53.54

23005

BODY-COMP-HEAD LAMP,BLACK

23005-1064-6Z

$168.04

23007

LENS-COMP,HEAD LAMP

23007-1138

$131.59

23017

SOCKET,BULB

23017-1051

$15.96

35011

STAY,HEAD LAMP

35011-1413

$70.82

49006

BOOT,HEAD LAMP BODY

49006-1172

$23.80

49016

COVER-SEAL,BULB SOCKET

49016-1111

$12.35

49031

LATCH,HEAD LAMP

49031-1052

$11.07

92027

COLLAR,L=11.9

92027-1938

$11.07

92069

BULB,12V 65/60W

92069-1069

$20.04

92075

DAMPER,HEAD LAMP HOLDER

92075-1482

$6.05

92075A

DAMPER,HEAD LAMP FITTING

92075-1768

$8.76

92075B

DAMPER

92075-1881

$7.62

92077

KNOB,HEAD LAMP

92077-1060

$18.63
