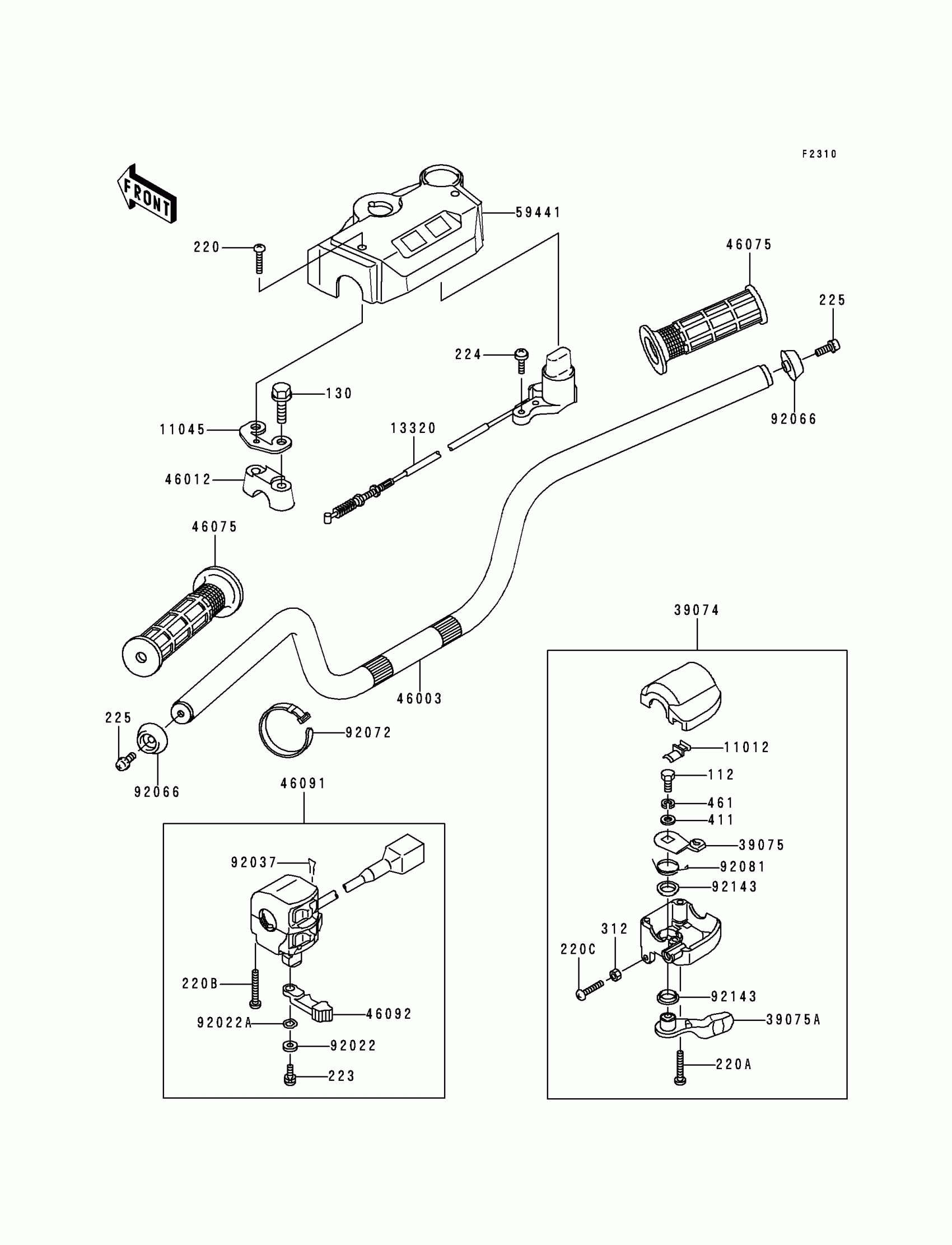

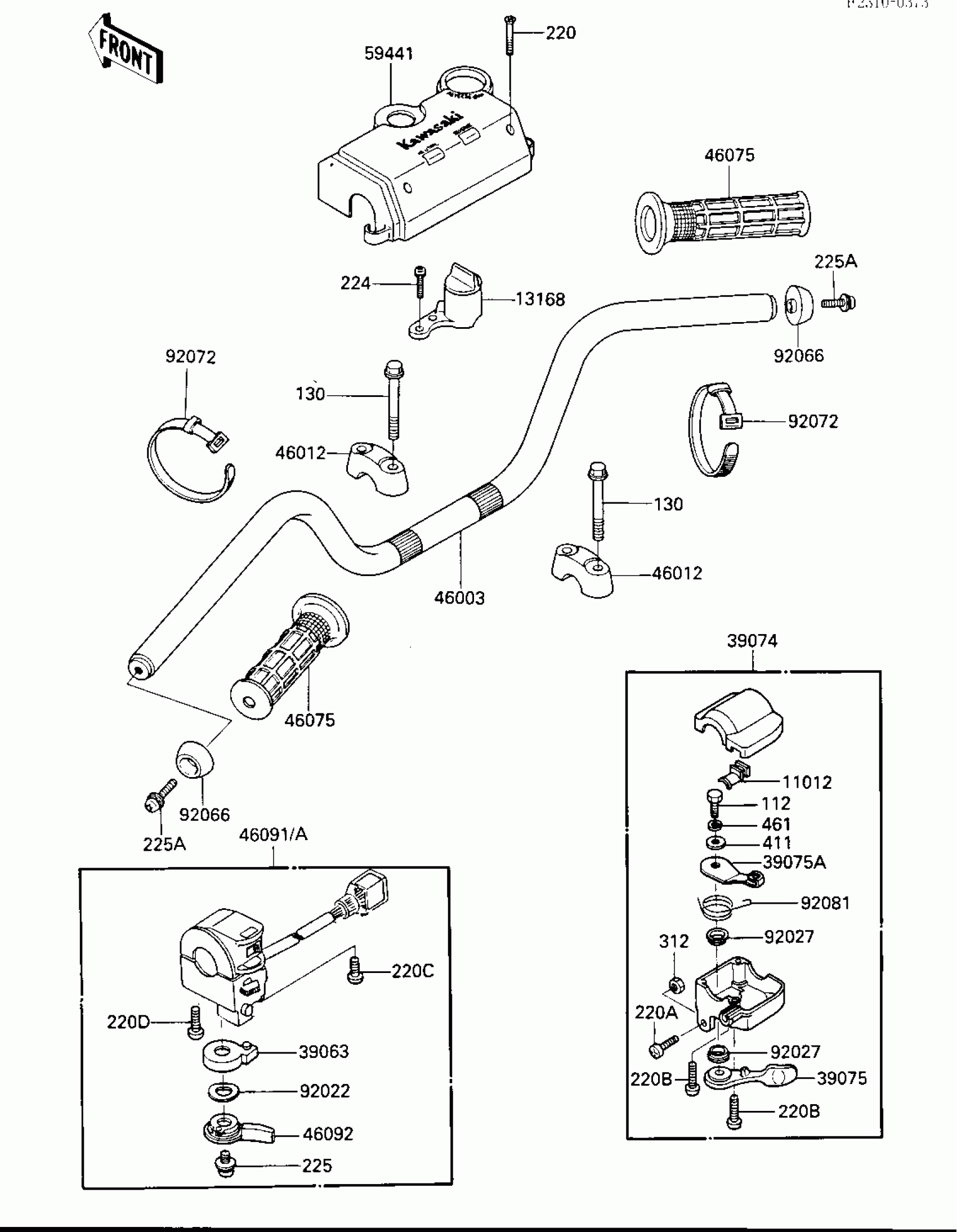

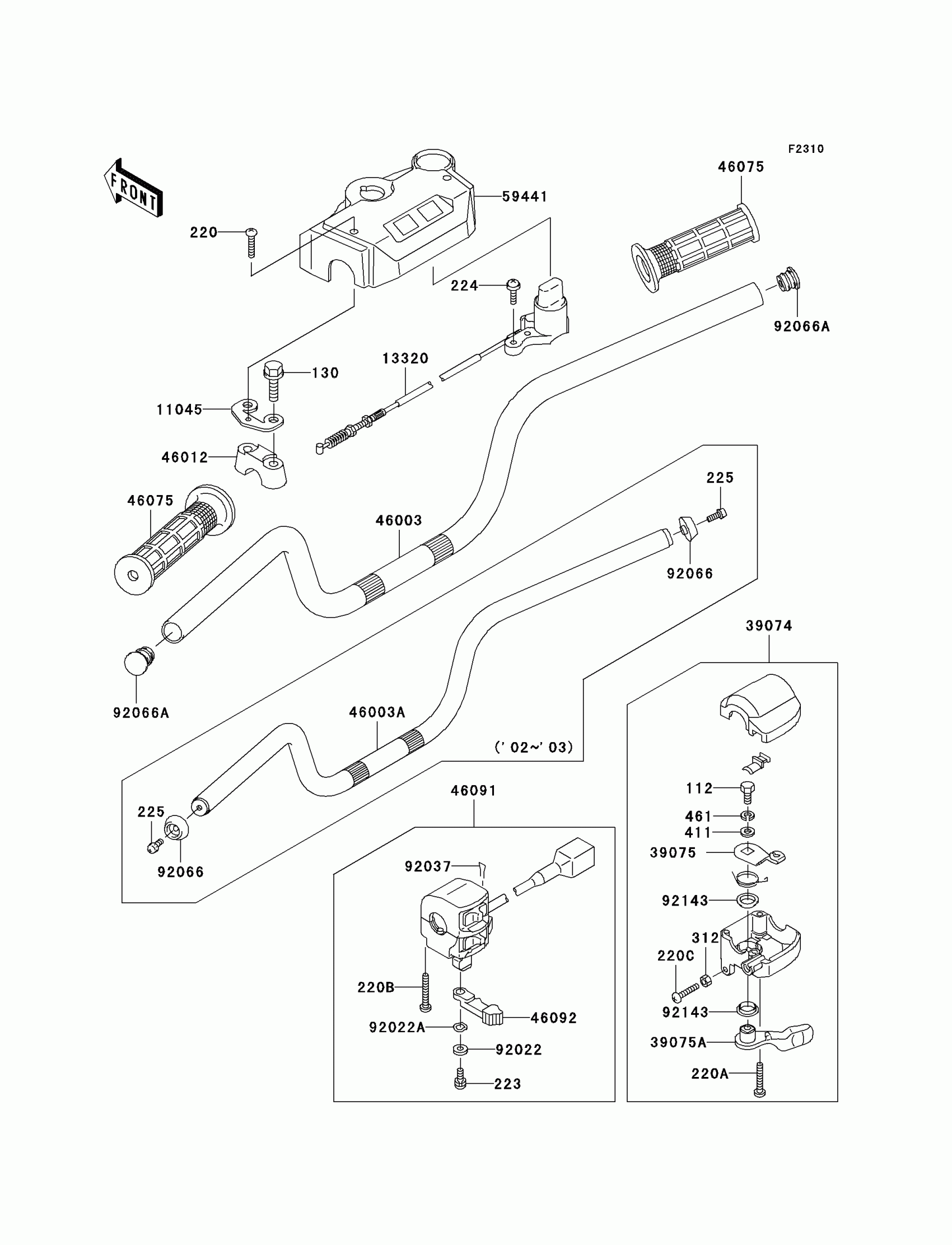

Kawasaki Bayou 300 Handlebar Diagram
#
Description
Price
112
BOLT-UPSET
112D0614
$0.49
130
BOLT-FLANGED,8X55
130G0855
Unavailable
220
SCREW-PAN-CROS,4X20
220C0420
$0.94
220A
SCREW-PAN-CROS,5X30
220C0530
Unavailable
220B
SCREW-PAN-CROS,5X35
220C0535
$2.06
220C
SCREW-PAN HEAD,6X30
220C0630
$1.89
223
SCREW-PAN-WS-CROS,5X12
223C0512
$4.32
224
SCREW-PAN-WP-CROS,5X20
224B0520
$0.48
225
SCREW-PAN-WSP-CROS,6X20
225C0620
$3.84
312
NUT-HEX,6MM,BLACK
312C0600
$3.57
411
WASHER-PLAIN,6MM
411E0600
$1.31
461
WASHER-SPRING
461L0600
$0.71
11012
CAP
11012-1425
Unavailable
11045
BRACKET,HANDLE COVER,RH
11045-1925
$7.69
13320
LEVER-ASSY,REVERSE
13320-1007
$129.87
39074
LEVER-ASSY-THROTTLE
39074-1055
$79.09
39075
LEVER-THROTTLE,ARM
39075-1054
$11.51
39075A
LEVER-THROTTLE
39075-1059
$33.25
46003
HANDLE
46003-1292
$52.65
46012
HOLDER-HANDLE
46012-1168
$16.33
46075
GRIP
46075-1056
$25.83
46091
HOUSING-ASSY-CONTROL,LH
46091-1462
$233.96
46092
LEVER-GRIP,CHOKE
46092-1149
$5.69
59441
COVER-HANDLE
59441-1077
$28.68
92022
WASHER,5MM
92022-1837
$3.35
92022A
WASHER,WAVE,5MM
92022-1838
$3.35
92037
CLAMP,CLIP
92037-1836
$5.33
92066
PLUG,HANDLE
92066-1191
Unavailable
92072
BAND,L=149
92072-031
$5.00
92081
SPRING
92081-1685
$79.09
92143
COLLAR
92143-1138
$3.56
