1986 Kawasaki Bayou 300 Front Master Cylinder Diagram

← All diagrams

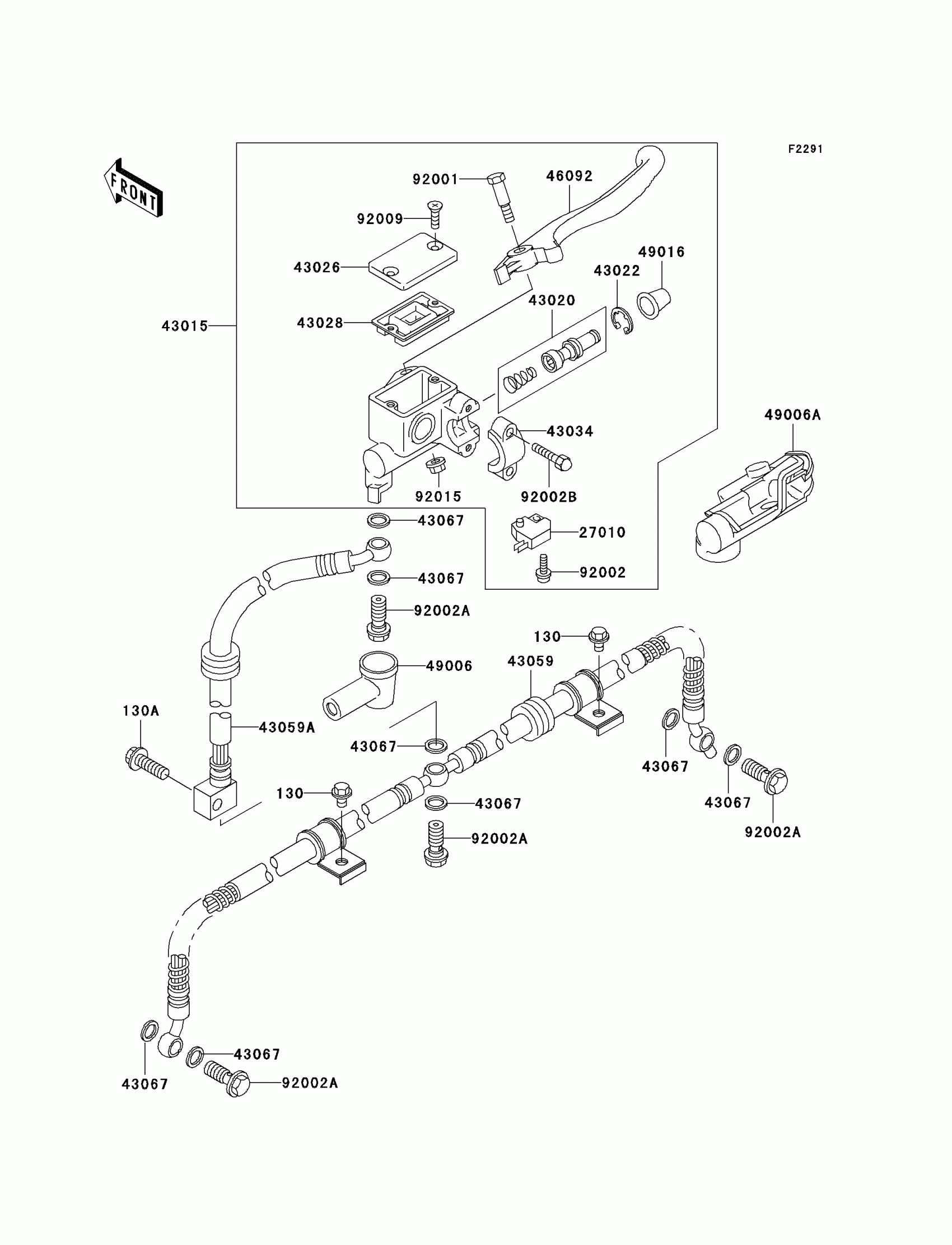

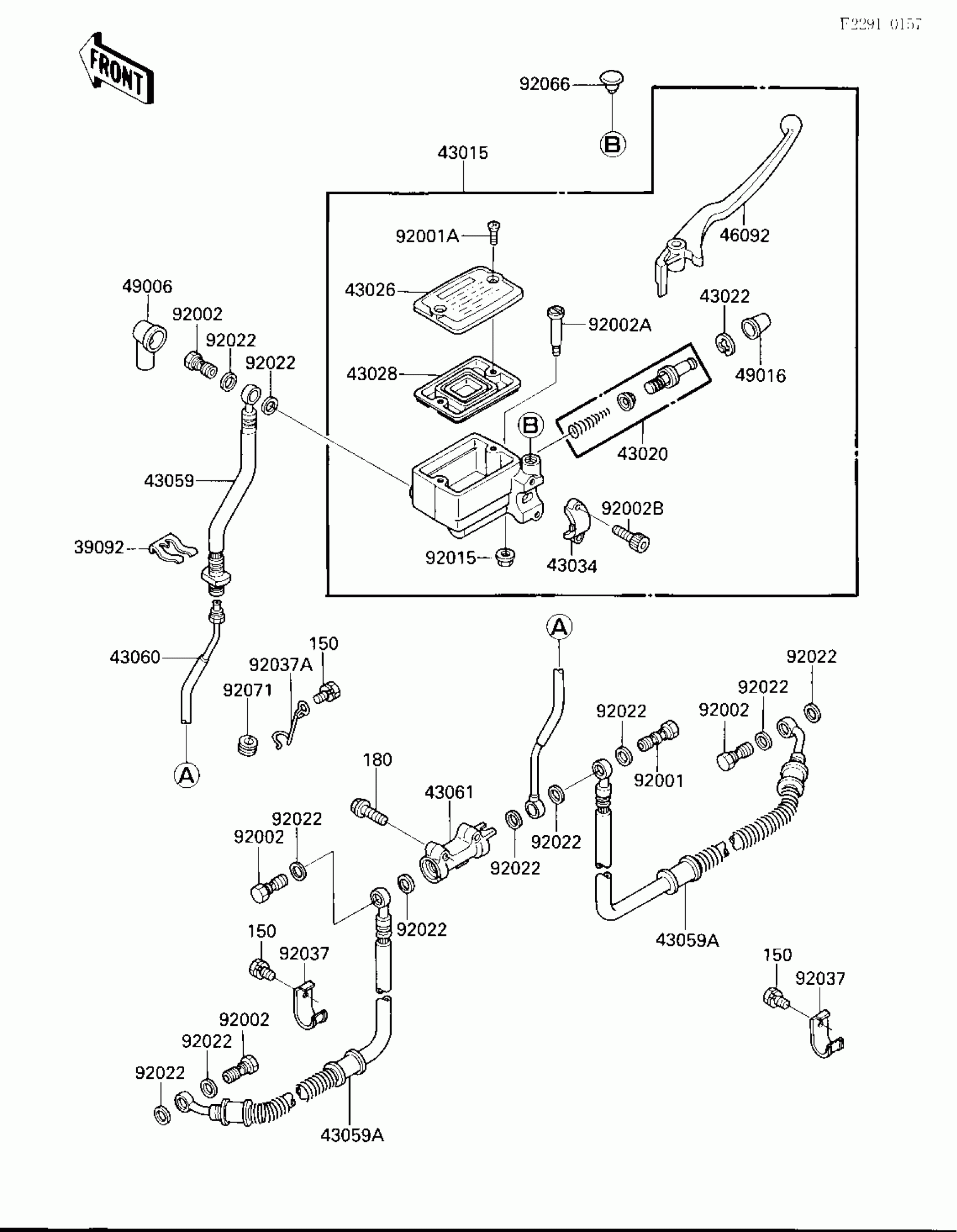

Find the part on the Front Master Cylinder diagram for your 1986 Kawasaki Bayou 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

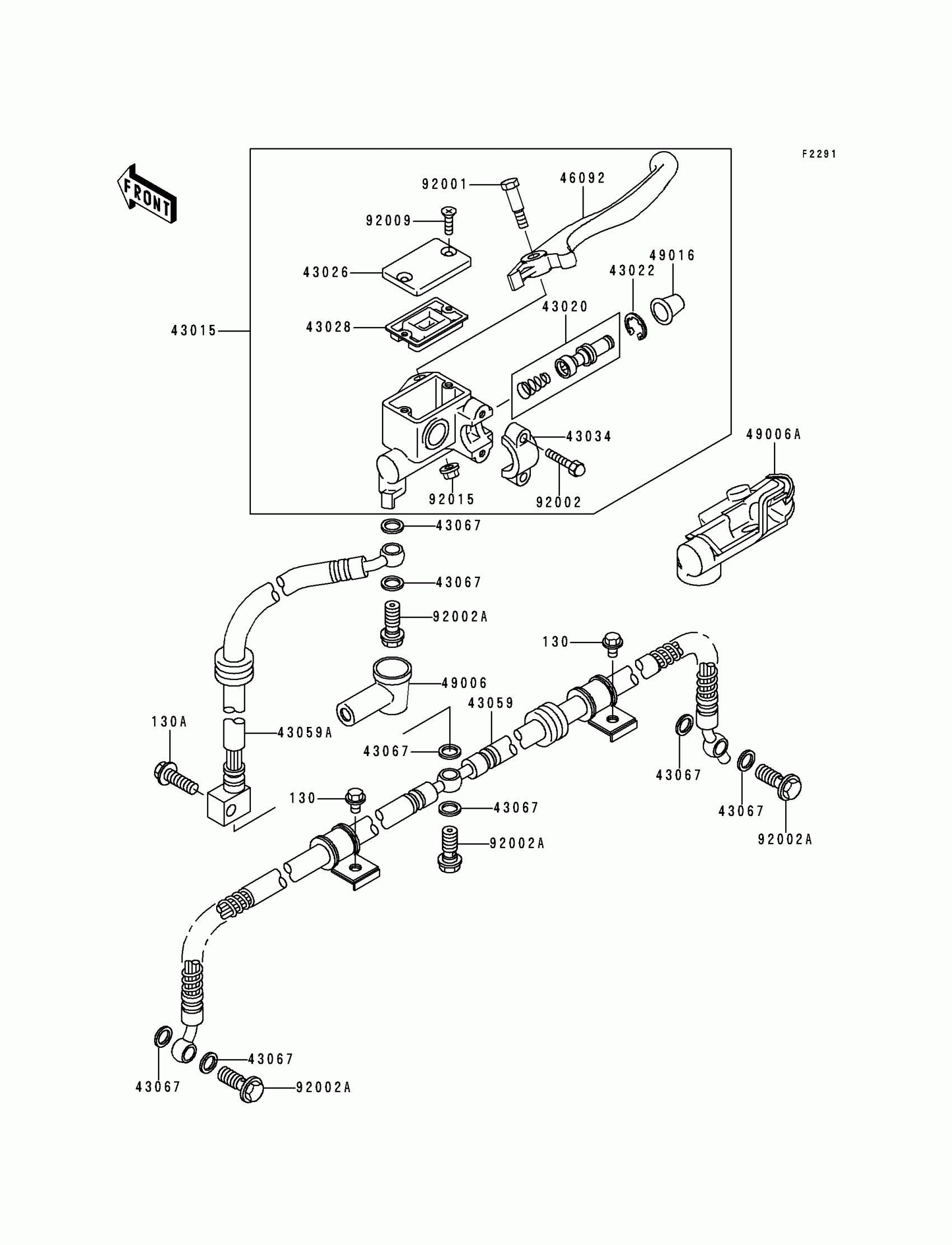

1986 Kawasaki Bayou 300 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39092

PIN-HAIR

39092-1052

1

$6.33

In stock

43015

CYLINDER-ASSY-MASTER,

43015-1295

1
Out of stock

43020

1

$59.90

In stock

43022

1

$3.69

In stock

43026

CAP-BRAKE,FR

43026-1055

1

$51.13

In stock

43028

1

$21.24

In stock

43034

1

$36.55

In stock

43059

HOSE-BRAKE,FR,UPP

43059-1311

1
Out of stock

43059A

HOSE-BRAKE,FR,LWR

43059-1312

1

$70.08

In stock

43060

PIPE-BRAKE,FR

43060-1051

1

$24.36

In stock

43061

JOINT-BRAKE

43061-1002

1

$73.52

In stock

46092

LEVER-GRIP,FRONT BRAK

46092-1127

1
Out of stock

49006

BOOT,DUST

49006-1041

1

$9.11

In stock

49016

1

$6.90

In stock

92001

BOLT,OIL,L=37

92002-1909

1
Out of stock

92001A

SCREW,5MM,BLACK

92001-1727

1

$3.27

In stock

92002

BOLT,OIL,L=23

92002-1888

1
Out of stock

92002A

1

$9.29

In stock

92002B

1

$7.54

In stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

92037

CLAMP

92037-1683

1

$4.41

In stock

92037A

CLAMP

92037-1684

1

$4.22

In stock

92066

1

$3.69

In stock

92071

GROMMET

92071-1128

1

$4.78

In stock

150

BOLT-WS,6X12

150C0612

1

$3.85

In stock

180

BOLT-UPSET-WS,6X30

180D0630

1
Out of stock
