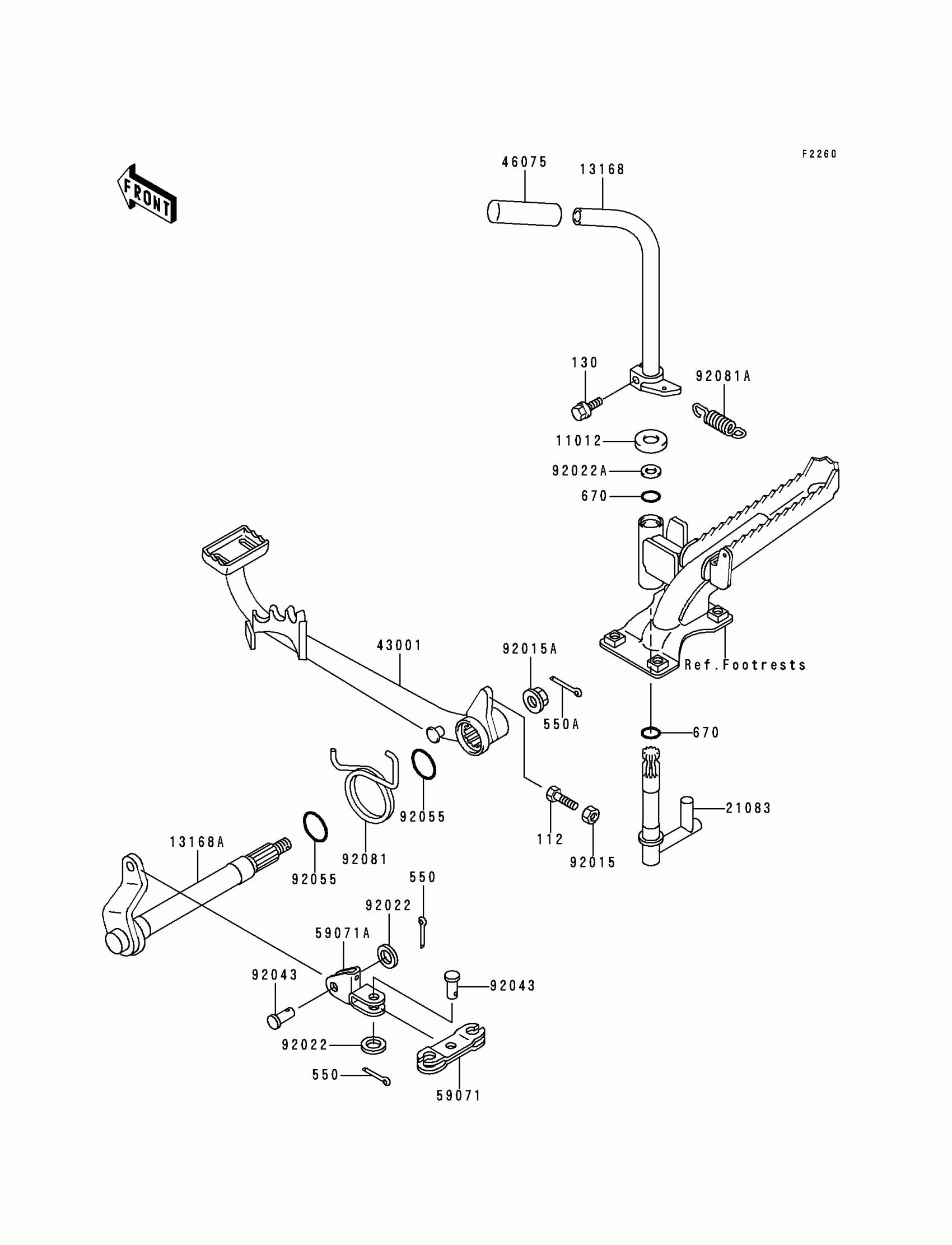

Find the part on the Brake Pedal diagram for your 1986 Kawasaki Bayou 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Bayou 300 Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,STEP

11012-1482

1

$7.12

In stock

13168

LEVER,REAR BRAKE

13168-1269

1
Out of stock

13168A

LEVER,PARKING BRAKE

13168-1282

1

$80.02

In stock

21083

ARM

21083-1057

1
Out of stock

43001

1

$122.12

In stock

46075

GRIP,LEVER

46075-1062

1

$8.90

In stock

59071

JOINT

59071-1105

1

$14.76

In stock

59071A

JOINT

59071-1106

1

$17.08

In stock

92015

NUT,6MM

92015-1410

1

$3.53

In stock

92015A

NUT,FLANGED,10MM

92015-1415

1

$3.72

In stock

92022

WASHER PLAIN 8MM

410B0800

1
Out of stock

92043

PIN,8X16

92043-1013

1
Out of stock

92055

RING-O,23.7X1.9

92055-1257

1
Out of stock

92081

SPRING,BRAKE PEDAL RETURN

92081-1887

1
Out of stock

92081A

1

$4.88

In stock

110

BOLT

110D0622

1
Out of stock

130

BOLT-FLANGED,6X20

130S0620

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock

550A

1

$0.61

In stock

670

O RING,18MM

670B2018

1

$1.25

In stock
