Description

Price

11012

CAP,WHEEL

11012-1519

Unavailable

41035

PANEL-ASSY-BRAKE,FR,L

41035-1202

$512.96

41035A

PANEL-ASSY-BRAKE,FR,R

41035-1203

$303.48

41038

DRUM,FR

41038-1164

$174.98

41048

SHOE-BRAKE

41048-1061

Unavailable

43092

CYLINDER,BRAKE,FR,LH

43092-1051

$139.22

43092A

CYLINDER,BRAKE,FR,RH

43092-1052

$139.22

43094

ADJUSTER,BRAKE

43094-1051

Unavailable

92002

BOLT,10X30

92002-1388

$9.48

92002A

BOLT

92002-1586

$2.88

92015

NUT,CASTLE,18MM

42045-018

$9.23

92027

COLLAR,20X25X25

92027-1898

$14.51

92027A

COLLAR,20X25X9

92027-1899

Unavailable

92041

COTTER,4.0X35

92041-1053

$3.92

92043

PIN

92043-1295

Unavailable

92045

BEARING-BALL

92045-1148

$33.68

92049

SEAL-OIL

92049-1224

$18.73

92066

PLUG,SHOE CHECK

92066-1269

$8.44

92066A

PLUG,SHOE ADJUST

92066-1270

$8.44

92081

SPRING,SHOE

92081-1903

Unavailable

92081A

SPRING,SHOE CLAMP

92081-1904

$8.03

92081B

SPRING,SHOE

92081-1970

Unavailable

183

BOLT-UPSET-WS-SMALL

183J0814

$4.73

461

WASHER SPRING 6MM

461F0600

$0.69

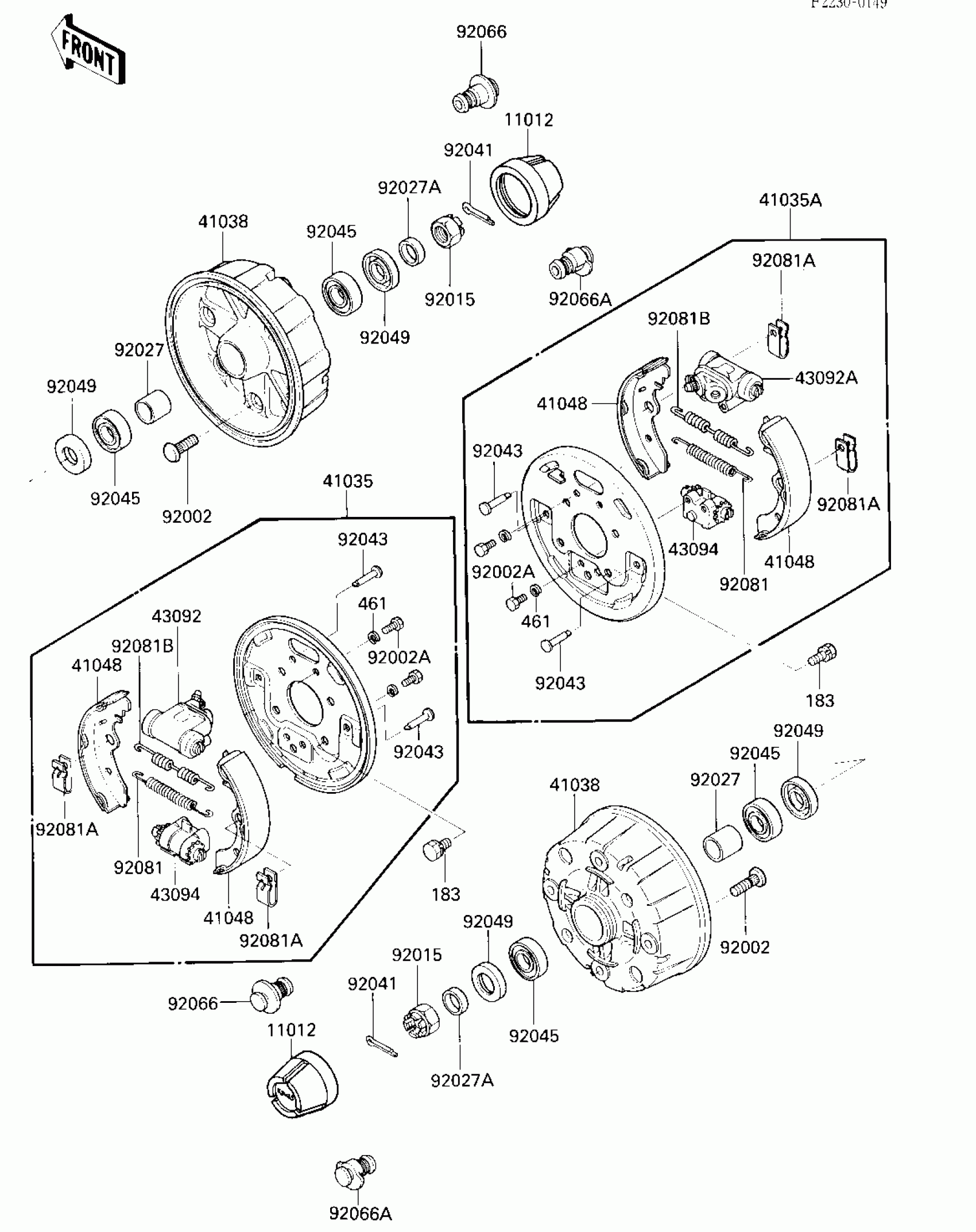

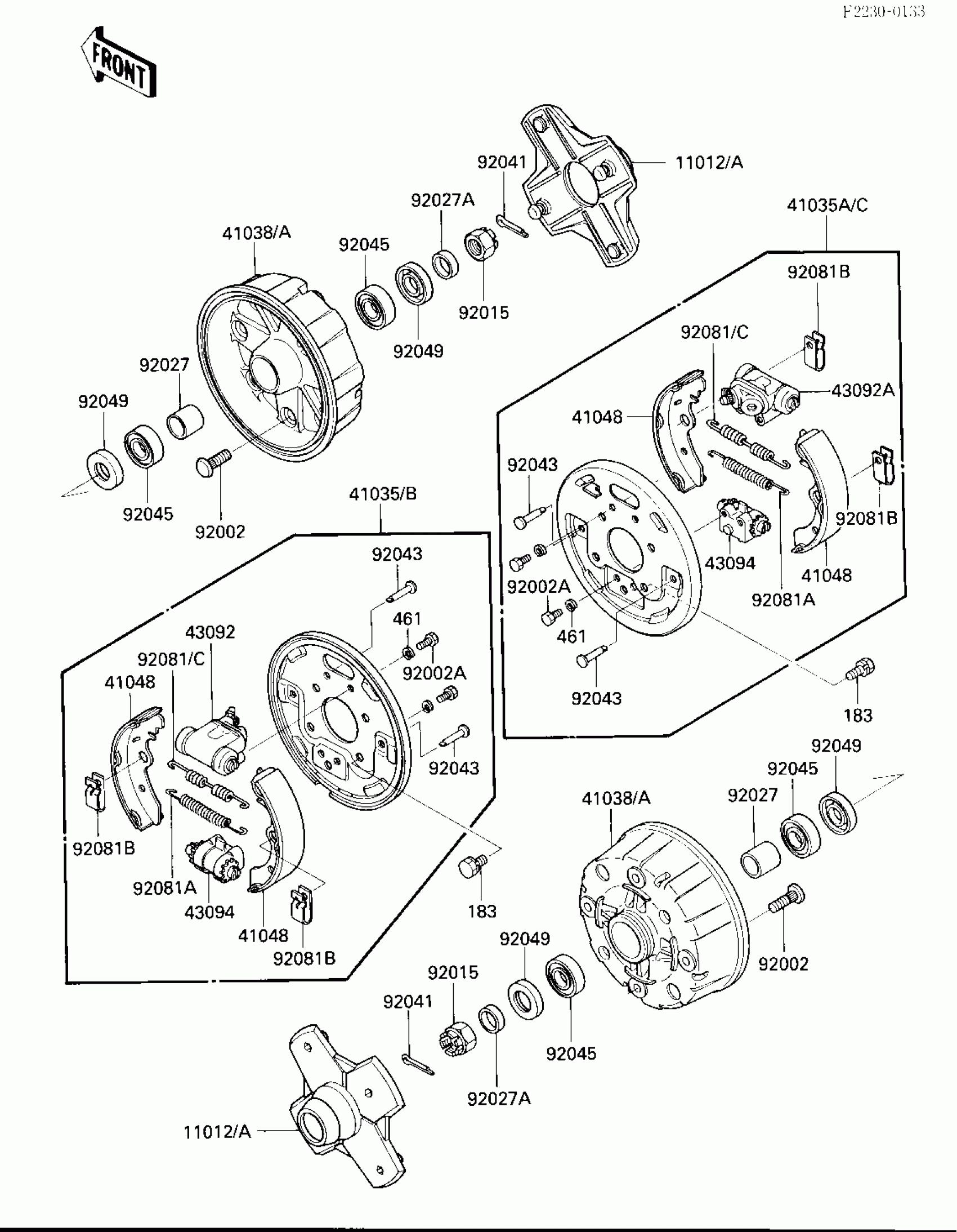

Kawasaki Bayou 300 FRONT HUB/BRAKE Diagram

CAP,WHEEL

PANEL-ASSY-BRAKE,FR,L

PANEL-ASSY-BRAKE,FR,R

DRUM,FR

SHOE-BRAKE

CYLINDER,BRAKE,FR,LH

CYLINDER,BRAKE,FR,RH

ADJUSTER,BRAKE

BOLT,10X30

BOLT

NUT,CASTLE,18MM

COLLAR,20X25X25

COLLAR,20X25X9

COTTER,4.0X35

PIN

BEARING-BALL

SEAL-OIL

PLUG,SHOE CHECK

PLUG,SHOE ADJUST

SPRING,SHOE

SPRING,SHOE CLAMP

SPRING,SHOE

BOLT-UPSET-WS-SMALL

WASHER SPRING 6MM
