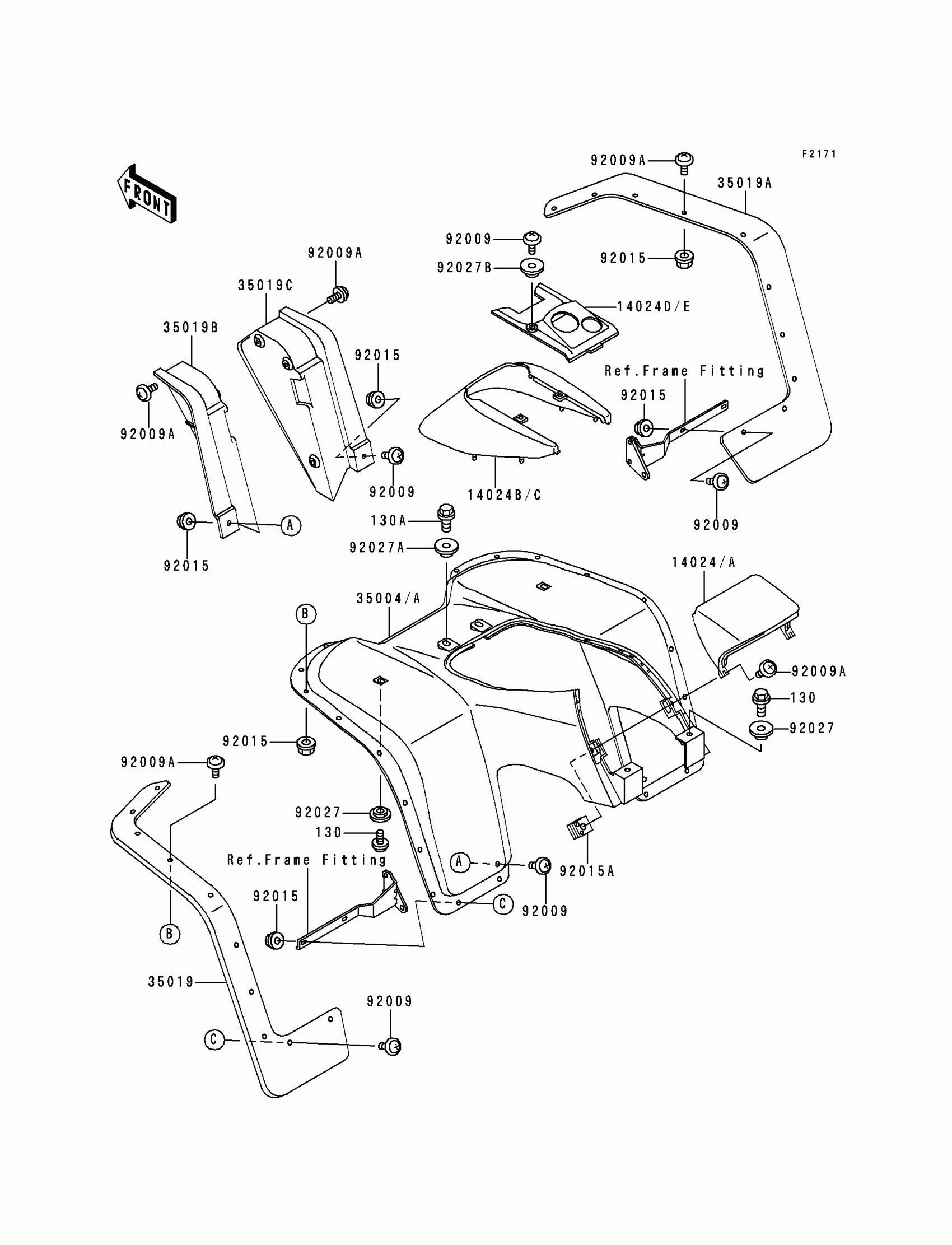

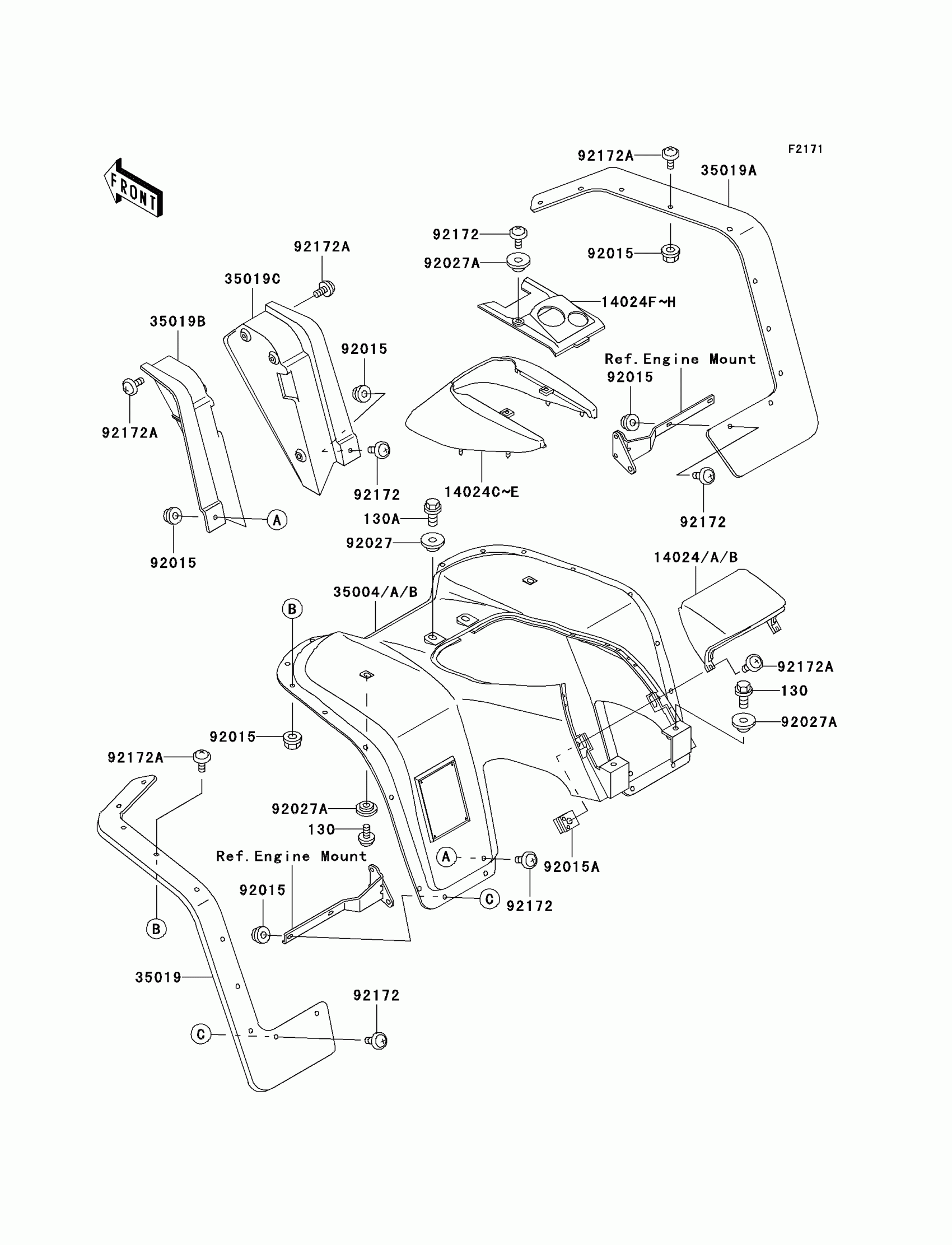

Kawasaki Bayou 300 Front Fender(s) Diagram

Description

Price

130

BOLT-FLANGED,6X14

130C0614

Unavailable

130A

BOLT-FLANGED,8X20

130C0820

Unavailable

14024

COVER,FRONT FENDER,RR,BLACK

14024-1093-6D

Unavailable

14024A

COVER,FRONT FENDER,RR,F.RED

14024-1093-6L

$32.90

14024B

COVER,FRONT FENDER,FR,GRAY

14024-1544-RG

Unavailable

14024D

COVER,FUEL TANK,GRAY

14024-1545-RG

Unavailable

35004

FENDER-FRONT,BLACK

35004-1172-6D

Unavailable

35004A

FENDER-FRONT,F.RED

35004-1172-6L

$282.16

35019

FLAP,FR,LH

35019-1146

Unavailable

35019A

FLAP,FR,RH

35019-1147

$48.93

35019B

FLAP,FR,INSIDE,LH

35019-1208

$63.34

35019C

FLAP,FR,INSIDE,RH

35019-1209

$63.34

92009

SCREW,6X18,BLACK

92009-1181

$1.98

92009A

SCREW,6X14

92009-1288

$2.99

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92015A

NUT,CLAMP,6MM

92015-1678

$4.18

92027

COLLAR

92027-122

$6.56

92027A

COLLAR,L=5.6

92027-1909

$5.37

92027B

COLLAR,L=4.7

92027-1964

$5.61
