Description

Price

130

BOLT-FLANGED,6X14

130C0614

$2.33

130A

BOLT-FLANGED,8X20

130C0820

Unavailable

14024

COVER,FRONT FENDER,RR,BLACK

14024-1093-6D

$26.77

14024B

COVER,FRONT FENDER,RR,F.RED

14024-1093-6L

$34.39

14024C

COVER,FRONT FENDER,FR,BLACK

14024-1544-6D

Unavailable

14024D

COVER,FUEL TANK,BLACK

14024-1545-6D

$26.66

35004

FENDER-FRONT,BLACK

35004-1172-6D

Unavailable

35004B

FENDER-FRONT,F.RED

35004-1172-6L

$257.86

35019

FLAP,FR,LH

35019-1146

$48.05

35019A

FLAP,FR,RH

35019-1147

$48.05

35019B

FLAP,FR,INSIDE,LH

35019-1208

$62.33

35019C

FLAP,FR,INSIDE,RH

35019-1209

$62.33

92009

SCREW,6X18,BLACK

92009-1181

$2.80

92009A

SCREW,6X14

92009-1288

$3.92

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92015A

NUT,CLAMP,6MM

92015-1678

$5.52

92027

COLLAR

92027-122

$8.60

92027A

COLLAR,L=5.6

92027-1909

$6.16

92027B

COLLAR,L=4.7

92027-1964

$7.34

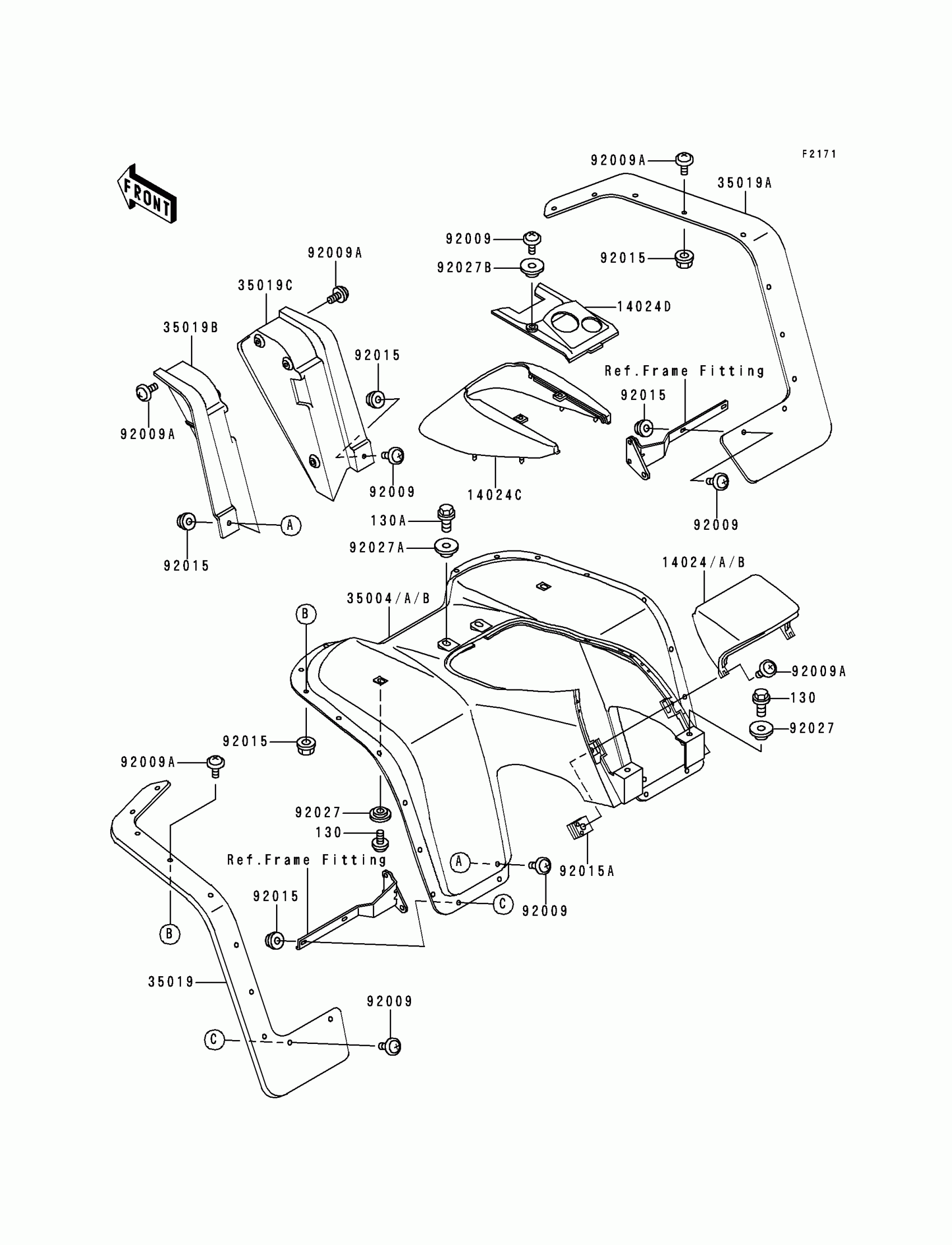

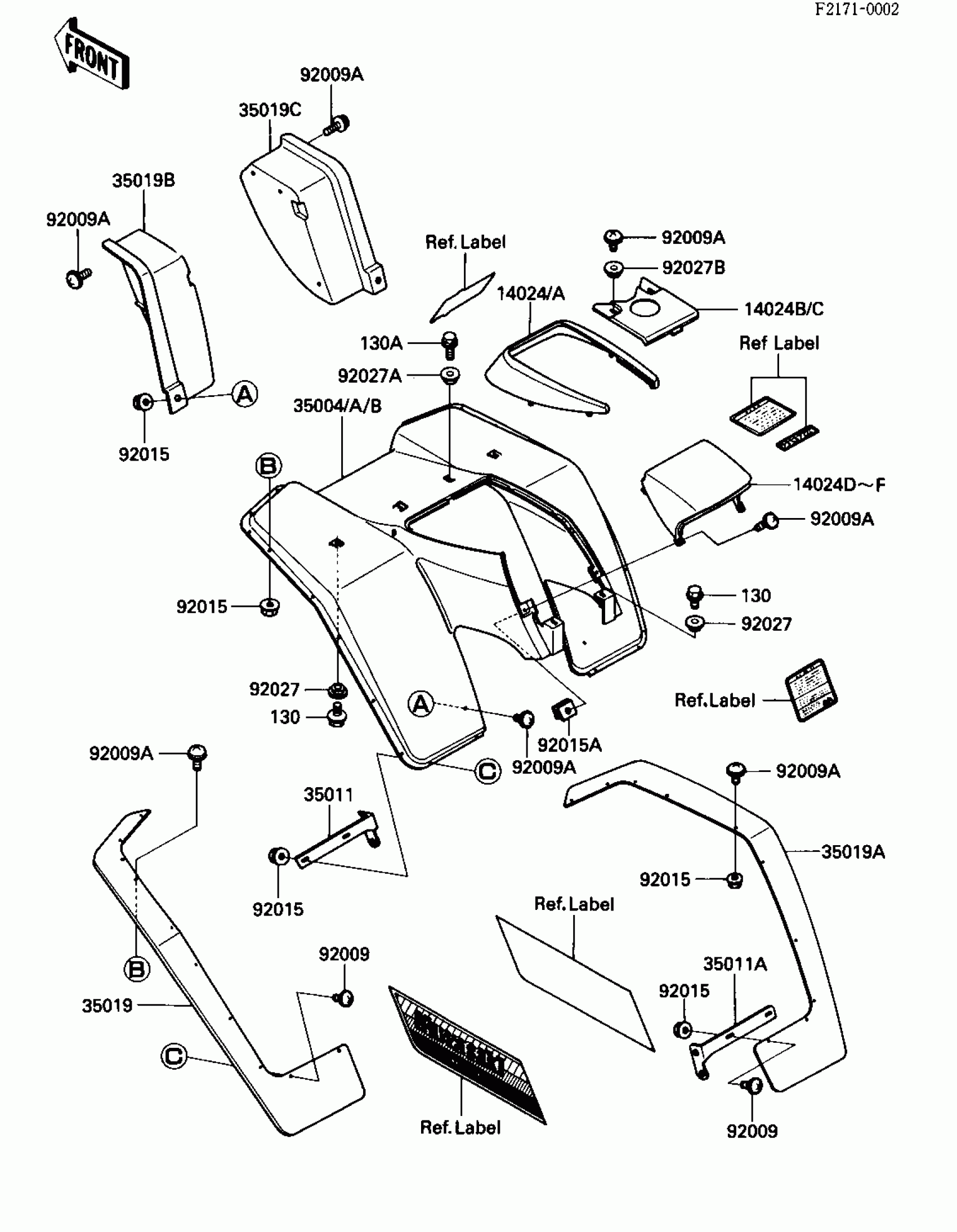

Kawasaki Bayou 300 Front Fender Diagram

BOLT-FLANGED,6X14

BOLT-FLANGED,8X20

COVER,FRONT FENDER,RR,BLACK

COVER,FRONT FENDER,RR,F.RED

COVER,FRONT FENDER,FR,BLACK

COVER,FUEL TANK,BLACK

FENDER-FRONT,BLACK

FENDER-FRONT,F.RED

FLAP,FR,LH

FLAP,FR,RH

FLAP,FR,INSIDE,LH

FLAP,FR,INSIDE,RH

SCREW,6X18,BLACK

SCREW,6X14

NUT,LOCK,FLANGED,6MM

NUT,CLAMP,6MM

COLLAR

COLLAR,L=5.6

COLLAR,L=4.7
