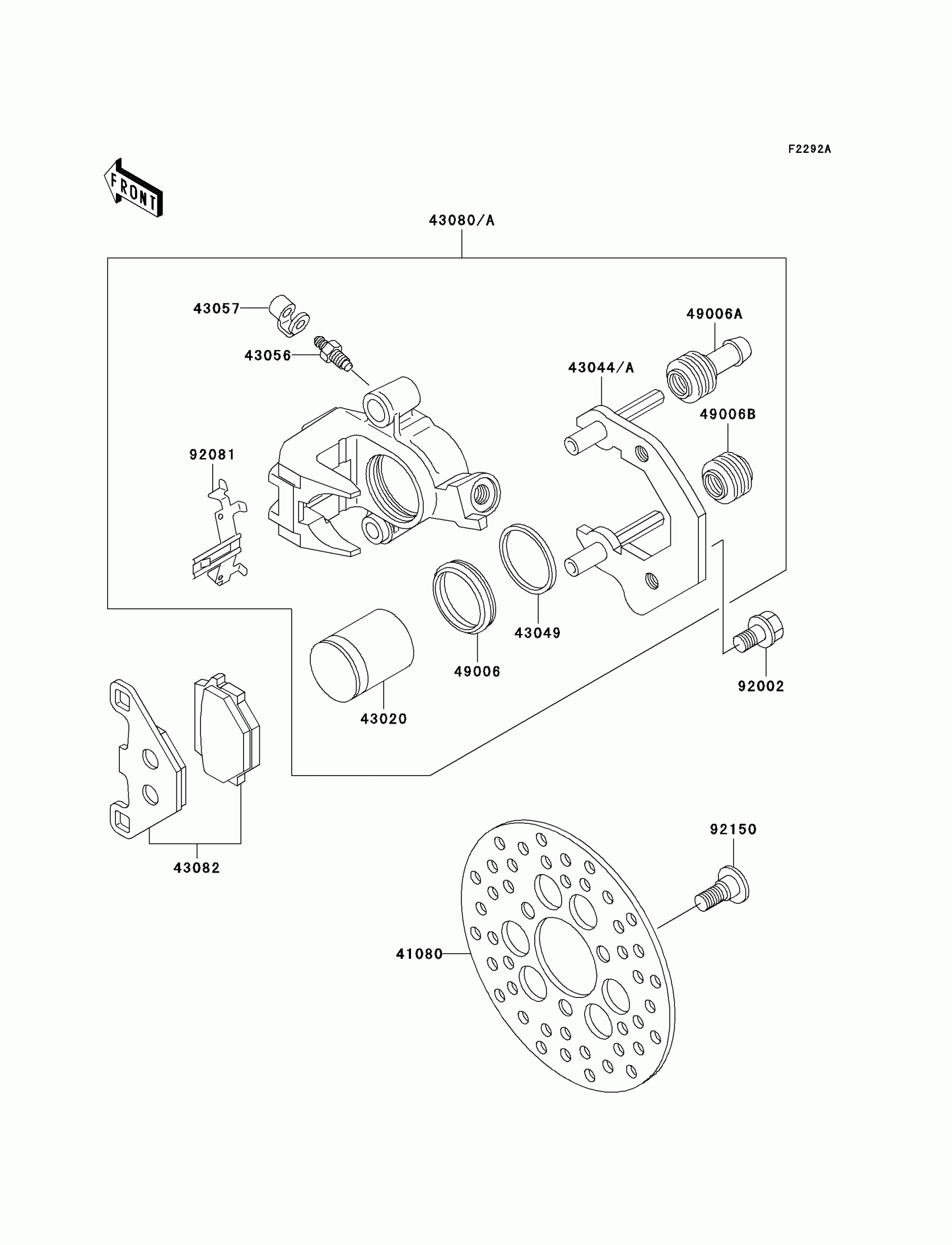

Kawasaki Bayou 300 Front Brake(KLF300-B17) Diagram

Description

Price

41080

DISC,FR

41080-1171

$176.48

43020

PISTON-COMP-BRAKE

43020-1093

$72.80

43044

HOLDER-COMP-CALIPER,FR,LH

43044-1064

$162.39

43044A

HOLDER-COMP-CALIPER,FR,RH

43044-1065

$162.39

43049

PACKING,PISTON SEAL

43049-1092

$10.39

43056

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43080

CALIPER-SUB-ASSY,FR,LH,SILVER

43080-5093-GN

$375.61

43080A

CALIPER-SUB-ASSY,FR,RH,SILVER

43080-5094-GN

Unavailable

43082

PAD-ASSY-BRAKE,FR

43082-1027

$58.88

49006

BOOT,PISTON SEAL

49006-1053

$21.93

49006A

BOOT,CALIPER

49006-1054

$11.61

49006B

BOOT,CALIPER

49006-1055

$7.27

92002

BOLT,FLANGED,8X13

92002-1737

$5.59

92081

SPRING,PAD

92081-1341

$14.76

92150

BOLT,SOCKET,8X20

92150-1800

$7.29
